18” CHIPPER SERVICE
FEED WHEEL MOTOR
114

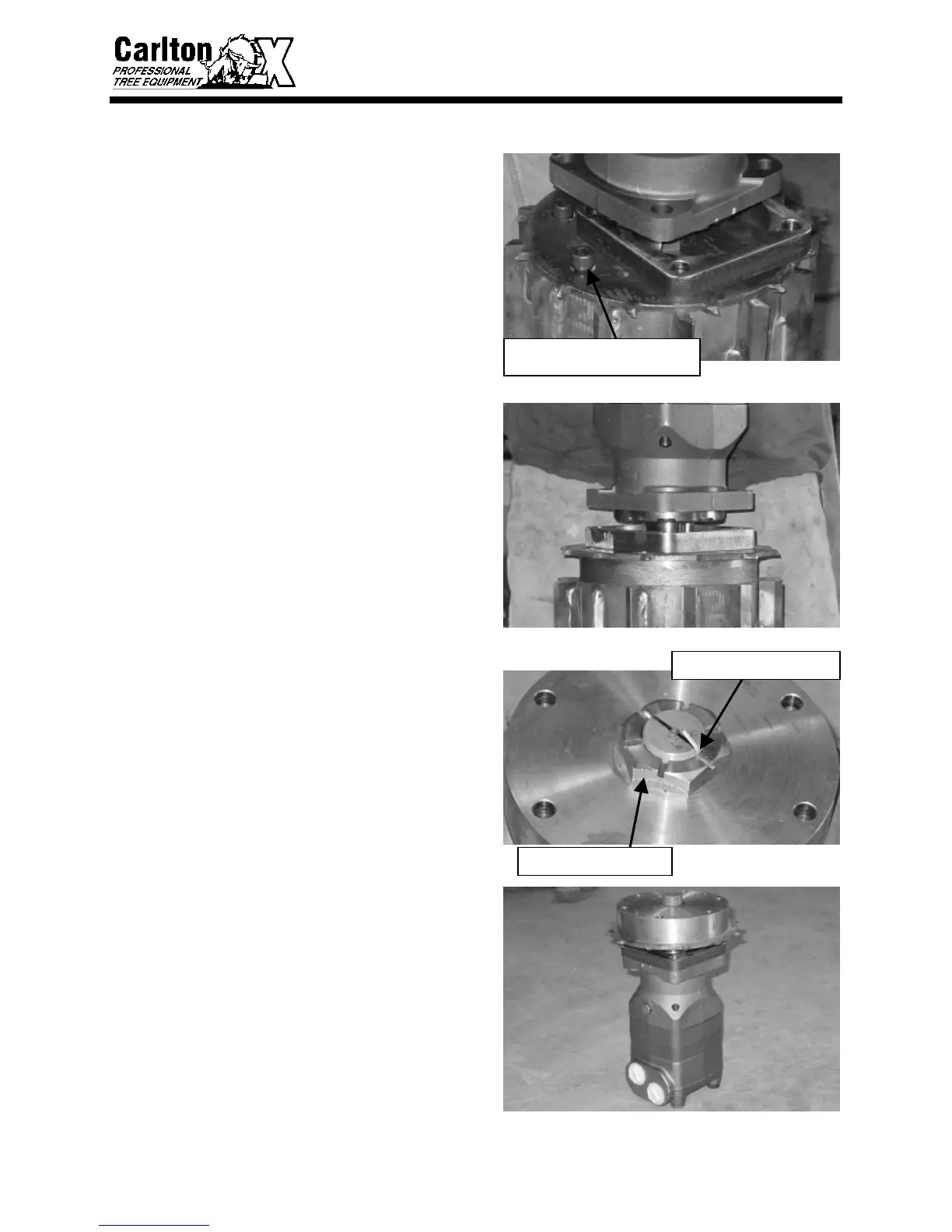

• Remove the six 1/2"-13 socket head cap
screws that are holding the end plate
onto the feed wheel.
• Remove the feed motor and end plate
assembly. Anti-seize was used on the
mating surface of the end plate but
removal may be difficult. Be careful
when holding the feed wheel to remove
the motor assembly because the blades
may be sharp and could cause injury, use
leather gloves.
• Remove the cotter pin from the motor
shaft.
• Using a 2 3/8” socket, remove the nut
from the drive motor shaft.
• Remove the feed wheel end plate from
the motor. Set plate aside for use in
reassembling.
REMOVE THE 2 3/8” NUT
REMOVE THE COTTER PIN
REMOVE THE 1/2"-13 SOCKET
HEAD CAP SCREWS
