9
06CC Compressor (16 to 37 cfm)
Connection from
Subcooling Heat
Exchanger
Interstage
Manifold
1/2 - 13 UNC -
Lifting Lug Connection
(Lug not supplied
with compressor)
1/4 NPT Interstage
Pressure Tap
(Includes Schrader
Fitting to Relieve
Crankcase Pressure)
Suction Valve
Location
1/4" NPT High Side
Oil Safety Switch
Connection
Suction Manifold
(To Low Stage
Cylinders)
7/16" - 20 SAE Oil Drain
Connection (Adaptor
Part No. DE14CA126)
1/4" NPT Oil Fill (SUMP)
Connection, also Low
Side Oil Safety Switch
Connection
1/4-NPT Low Stage
Pressure Tap (Not shown)
Bottom of Cylinder
Head has a Boss and
1/4 NPT Just Like the Top

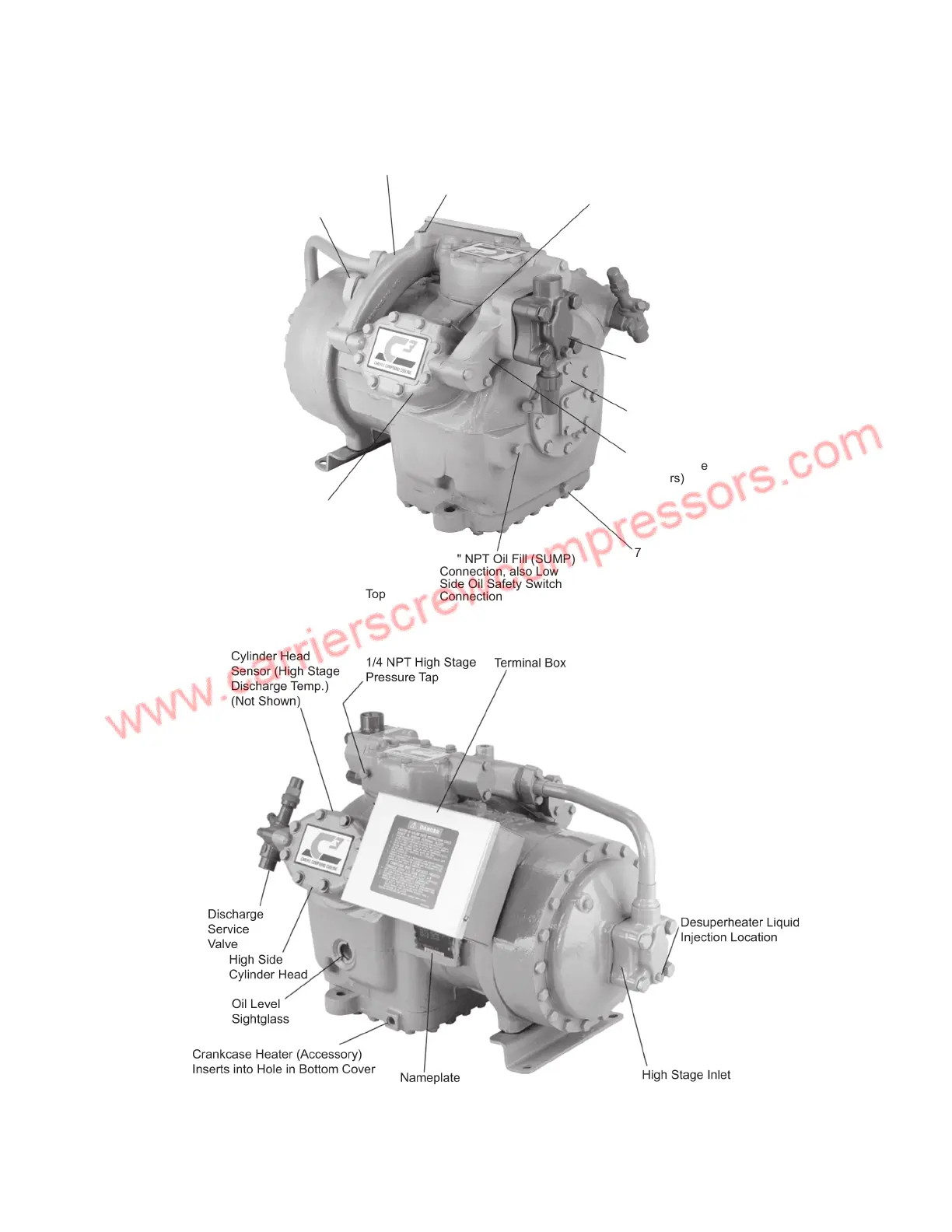

Fig. 5 — 06CC Compressor (16 to 37 cfm)
