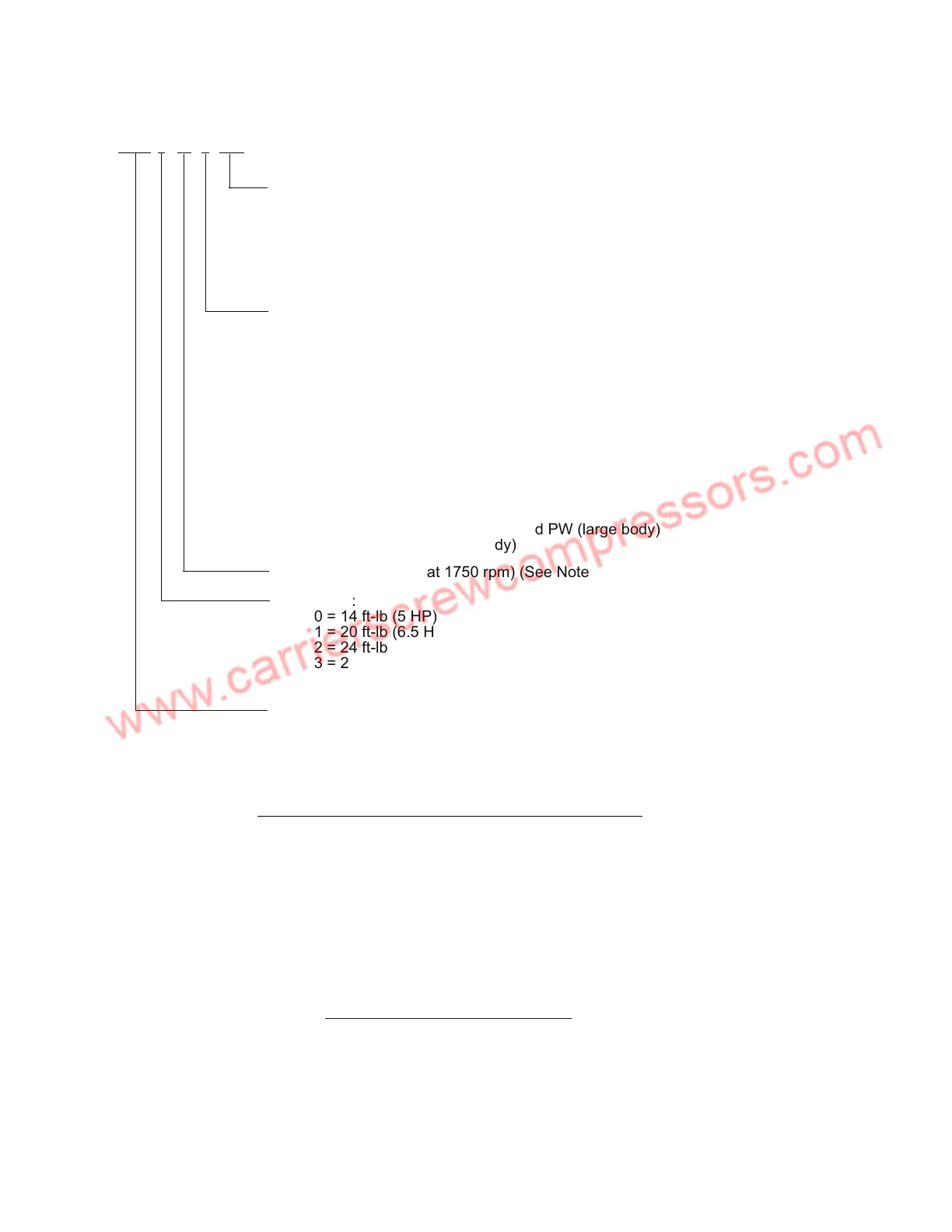

06CC Model Number Significance
06CC 6 65 E 201
Design Variable:
101 = Single Pack, without Valves, with Oil
102 = Single Pack with Valves and Oil
103 = Single Pack, Service without Valves and Term. Box or Oil
201 = Single Pack, without Valves or Oil
202 = Single Pack with Valves
Electrical Characteristics:
A = 415-3-50, XL and PW
B = 415-3-50, XL
C = 415-3-50, PW
D = 208/230-3-60, XL
E = 208/230/400/460-3-50/60
F = 400/460-3-50/60, XL and PW
G = 400/460-3-50/60, XL
H = 400/460-3-50/60, PW
J = 575-3-60, XL and PW
K = 230-3-60, PW
L = 220-3-50, XL and PW
M = 220-3-50, XL
N = 220-3-50, PW
P = 220/346/380-3-50/60, XL and PW (large body)
Q = 380-3-50/60 (small body)
Displacement (in cfm at 1750 rpm) (See Note below)
Motor Size:
0 = 14 ft-lb (5 HP) 5 = 45 ft-lb (15 HP)
1 = 20 ft-lb (6.5 HP) 6 = 60 ft-lb (20 HP)
2 = 24 ft-lb (7.5 HP) 7 = 75 ft-lb (25 HP)
3 = 27 ft-lb (10 HP) 8 = 90 ft-lb (30 HP)
4 = Not Assigned
Compressor Type:
06CC = Compound Cooling Model
06CY = Service Compressor
06C8 = Compressor, Special
NOTE: USE OF “cfm” AS MODEL SIZE DESIGNATION
Carlyle uses the “cfm” designation in the model number to identify the compressor size. The
cfm values are the sixth and seventh digits of the model number. See example above.
Carlyle offers two series of compressors based on body size. The smaller compressors, from 8 to
37 cfm, are referred to as “D” size units (model number “06D”). The larger compressors, from
50 to 99 cfm, are referred to as “E” size units (model number “06E”).
The 06CC, or Carlyle
®
Compound Cooling compressors, are made in 16 to 37 cfm and 50 to 99 cfm
sizes. The 16 to 37 cfm compressors use “D” size bodies. The 50 to 99 cfm compressors use
“E” size bodies.
NOTE: METRIC MEASUREMENTS
The compressors are built using English units: inches, foot-pounds, pints, etc. A corresponding
metric measurement has been added to all the English units in this guide. These metric measures
are a guide only, having been rounded to the nearest whole number, and therefore are not meant
to be an exact mathematical conversion.
