Carlyle 06T 033 Series - Page 5

3

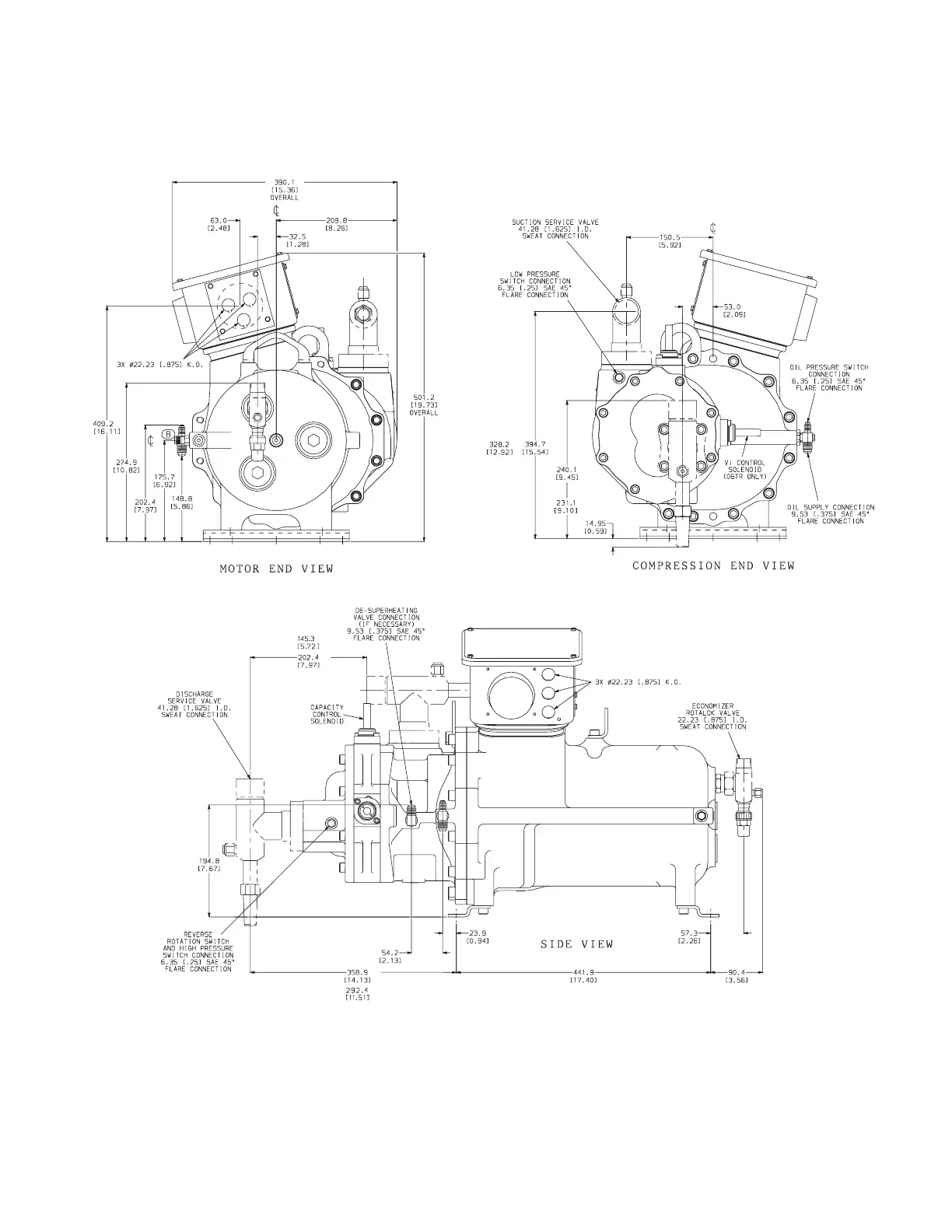

COMPRESSOR PHYSICAL DIMENSIONS CONTINUED
**
*
**
*
*
**
* Standard service valve used on all 33-54 cfm Compressors;
** Larger barstock service valve used on all 65-88 cfm Compressors (shown).
**
*
