21
OIL SEP.
OIL HEATER
OIL LEVEL SWITCH
OIL LINE
DISCHARGE
LINE
LEAD COMPRESSOR
3 MICRON FILTERS
P
TO CONDENSER
OIL SOLENOID
SIGHT GLASS
MIXING
VALVE*
P
P
OIL COOLER
(IF REQUIRED)
HAND VALVE
PRESSURE SENSOR

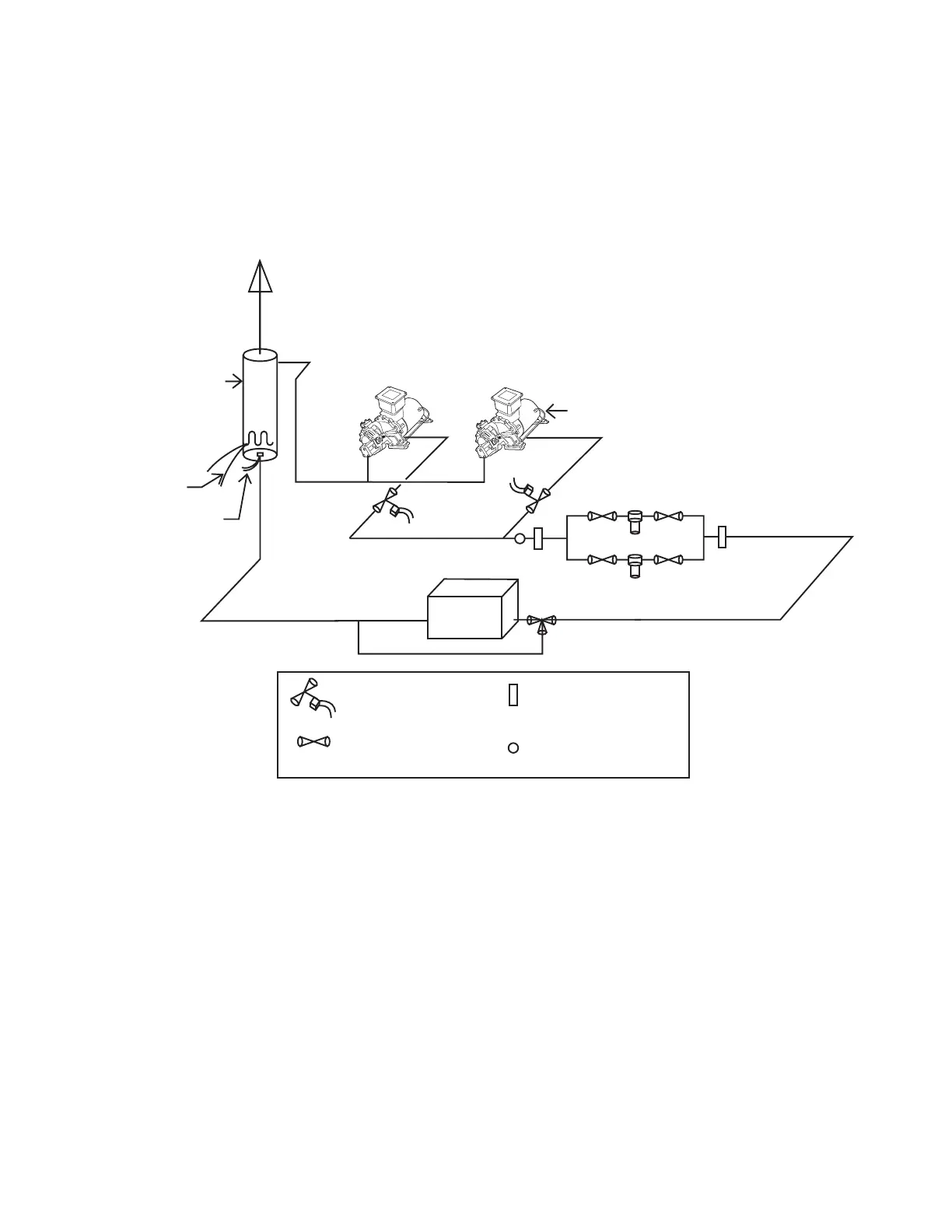

OIL SYSTEM SCHEMATIC
ISOMETRIC VIEW
3.12 Oil System Schematics
*
* Note: Other oil temperature control options are available. See section 3.8.
