3.1 Oil Separator
An oil separator is required on all Carlyle screw
compressor systems. Carlyle offers two sizes
of vertical oil separators. Parallel systems (over
two compressors) require the use of the Carlyle
14" (35.6cm) separator, and single and double
compressor systems require the use of the
Carlyle 12" (30.5cm) separator. See the draw-
ings below for dimensional information on the
oil separators.
Section 3 — Oil Management System
11
FOR REFERENCE ONLY
INCHES
[CENTIMETERS (cm)]

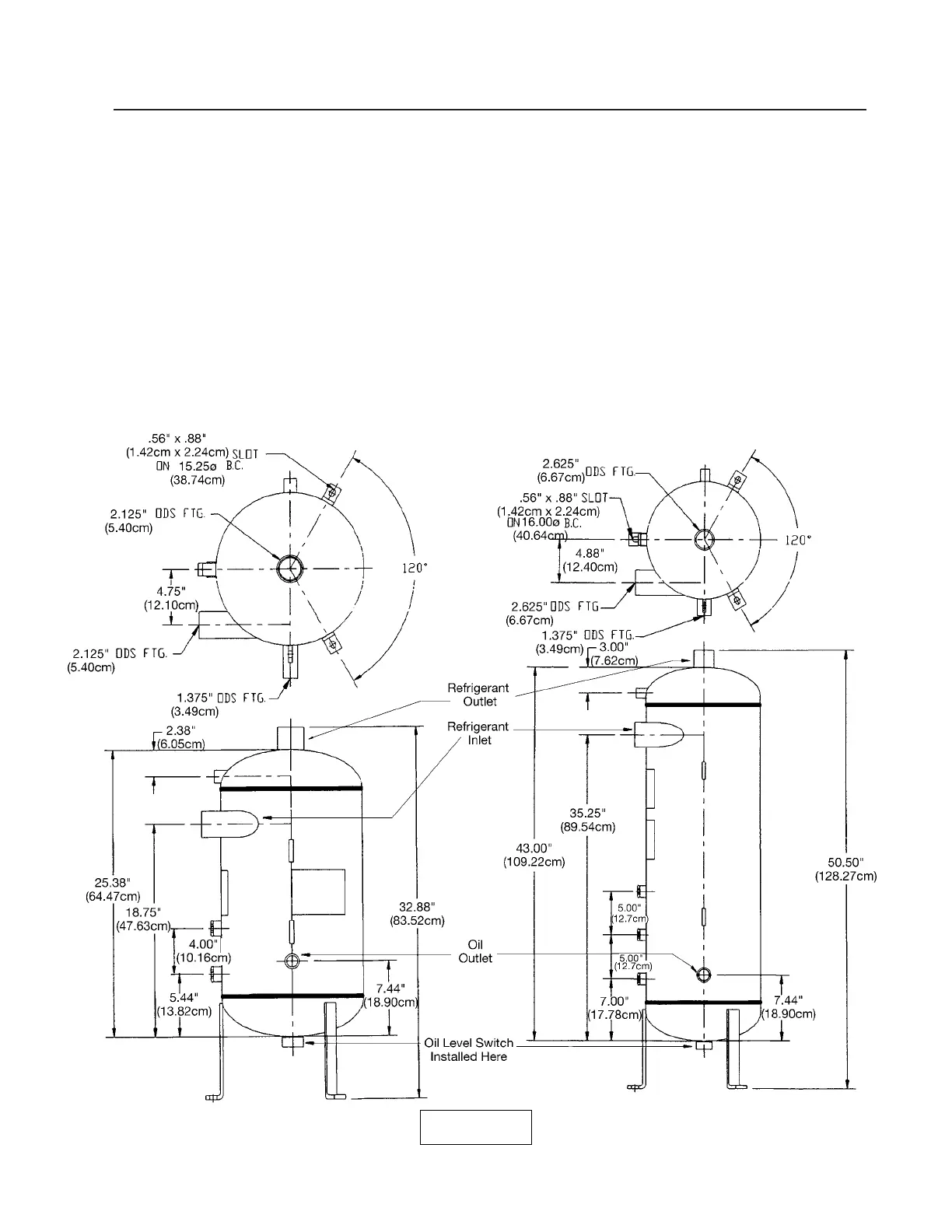

12" (30.5cm) VERTICAL OIL SEPARATOR
PHYSICAL DIMENSIONS
14" (35.6cm) VERTICAL OIL SEPARATOR
PHYSICAL DIMENSIONS
