2
* Standard service valve used on all 33-54 cfm Compressors;
** Larger barstock service valve used on all 65-88 cfm Compressors (shown).
*
*
*

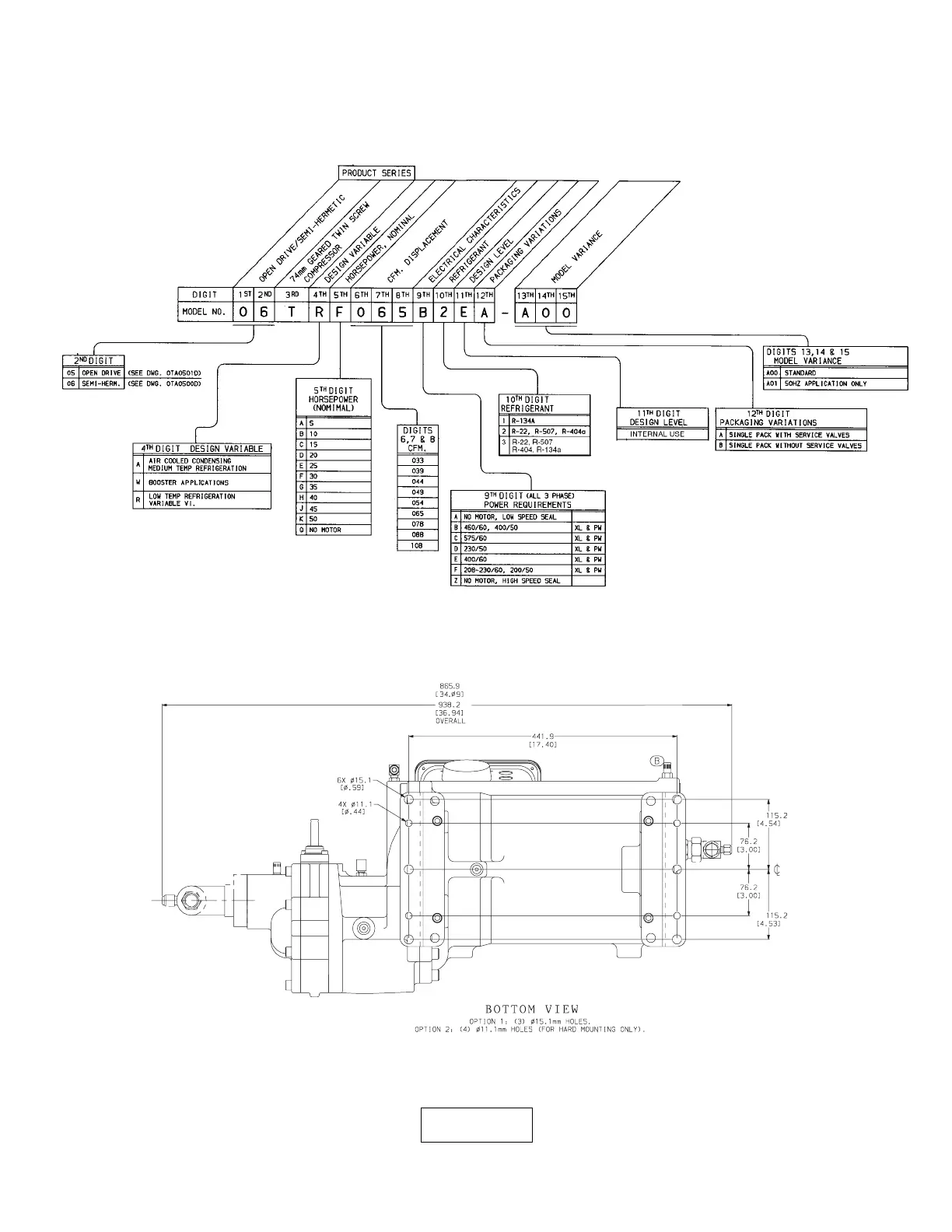

06T MODEL NUMBER SIGNIFICANCE
COMPRESSOR PHYSICAL DIMENSIONS
FOR REFERENCE ONLY
INCHES
[MILLIMETERS (mm)]
