See notes 2,5,7, and 10 on the page following these figures.
A04215

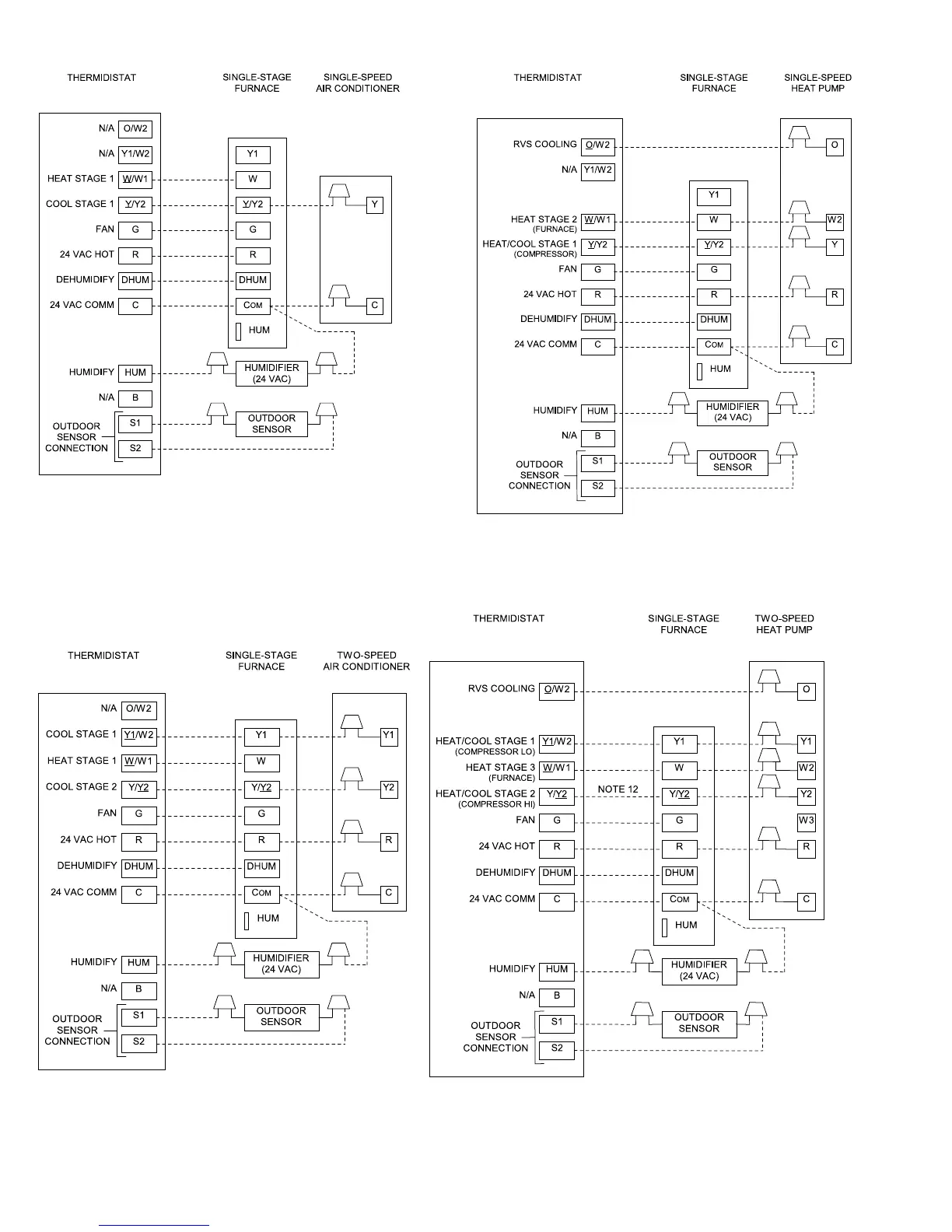

Fig. 26–Single-Stage Furnace with Single-Speed
Air Conditioner
Fig. 27–Single Stage Furnace with Two-Speed
Air Conditioner
A04216
See notes 2,5,8, and 10 on the page following these figures.
See notes 1, 2, 4, 6, 7, 9, 10 and 12 on the
page following these figures.
A04217
Fig. 28–Single-Stage Furnace with Single-Speed
Heat Pump (Dual Fuel)
See notes 1, 2, 3, 4, 6, 8, 9, 10 and 12 on the
page following these figures.
A04218
Fig. 29–Single-Stage Furnace with Two-Speed
Heat Pump (Dual Fuel)
