Carrier 120/C Series - Page 25

HUMIDFIER
(24VAC)
See notes 1, 2, 4, 11, 12, and 13 on the page following these figures.
A04219

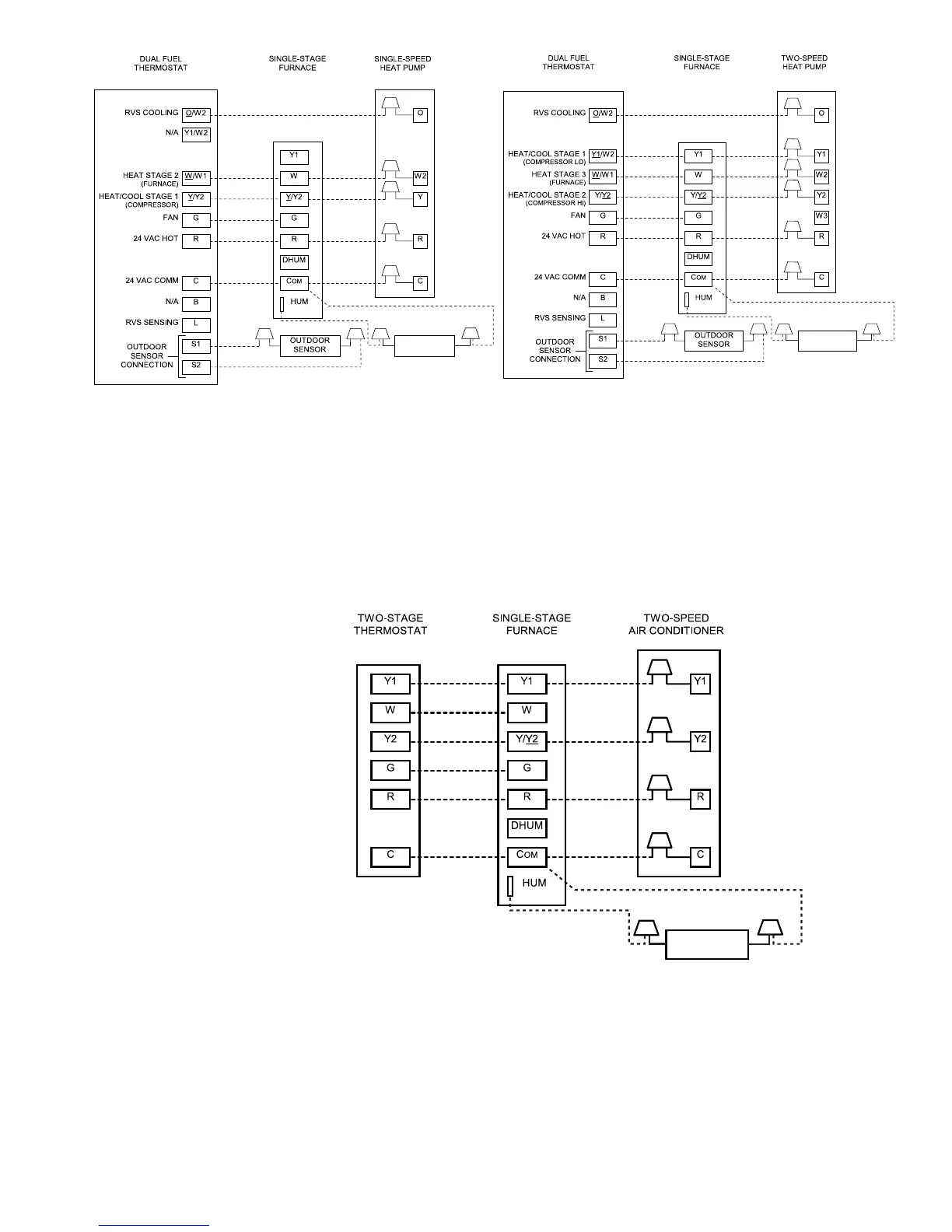

Fig. 30–Dual Fuel Thermostat with Single-Stage
Furnace and Single-Speed Heat Pump
HUMIDFIER
(24VAC)
See notes 1, 2, 3, 4, 11, 12, and 14 on the page following these figures.
A04220
Fig. 31–Dual Fuel Thermostat with Single-Stage
Furnace and Two-Speed Heat Pump
HUMIDFIER
(24VAC)
See note 2 on the page following these figures.
A04221
Fig. 32–Two-Stage Thermostat with Single-Stage
Furnace and Two-Speed Air Conditioner
