EXAMPLE:
3 short flashes followed by 2 long flashes indicates a 32 code.
Table 7 shows this to be low pressure switch open.
Utility Interface With Infinity Touch Control
The utility curtailment relay should be wired between the two
UTIL connections on the control board for this Infinity
Communicating System (see Fig. 42). This input allows a power
utility device to interrupt compressor operation during peak load
periods. When the utility sends a signal to shut the system down,
the User Interface status screen will display, ”Curtailment Yes”.
See UI installation instructions for setup details.
Utility Relay
A13414

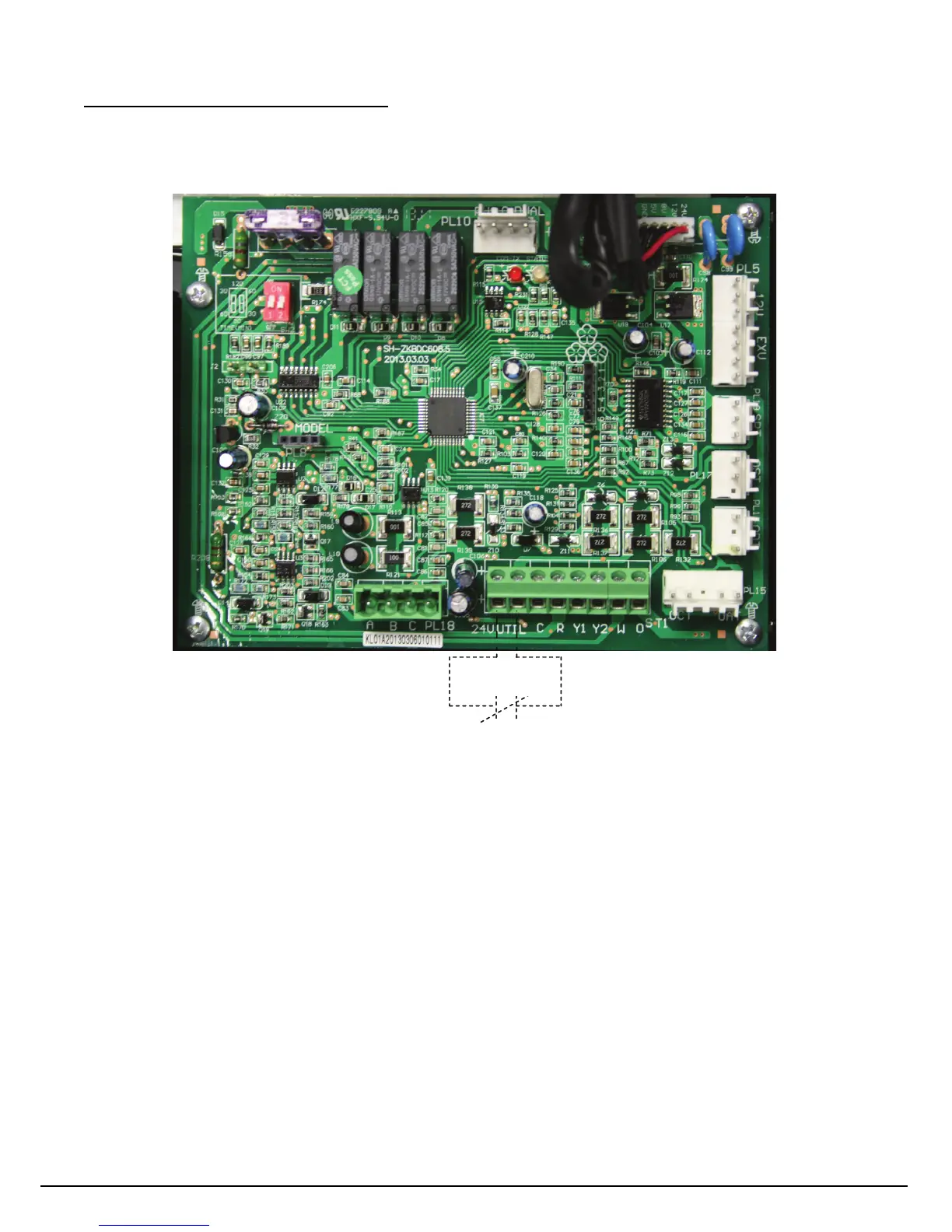

Fig. 42 -- Variable Speed Control Board with optional Utility Relay
