IAQ — Indoor-Air Quality

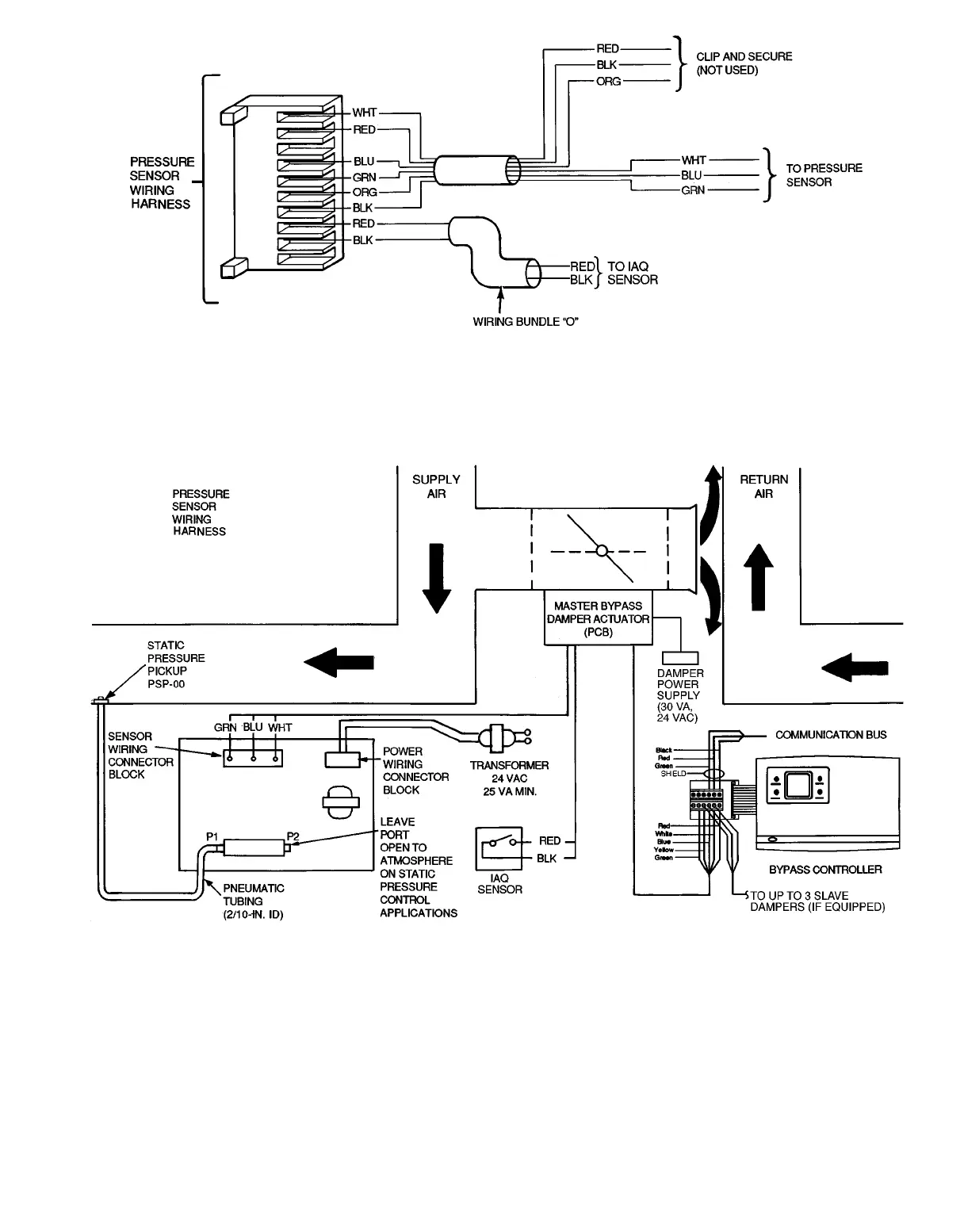

Fig. 3 — Damper Actuator Sensor Wiring

LEGEND

PCB — Printed Circuit Board

PSP — Pressure Static Pickup

Fig. 4 — Bypass Damper and Pressure Sensor Installation
