4

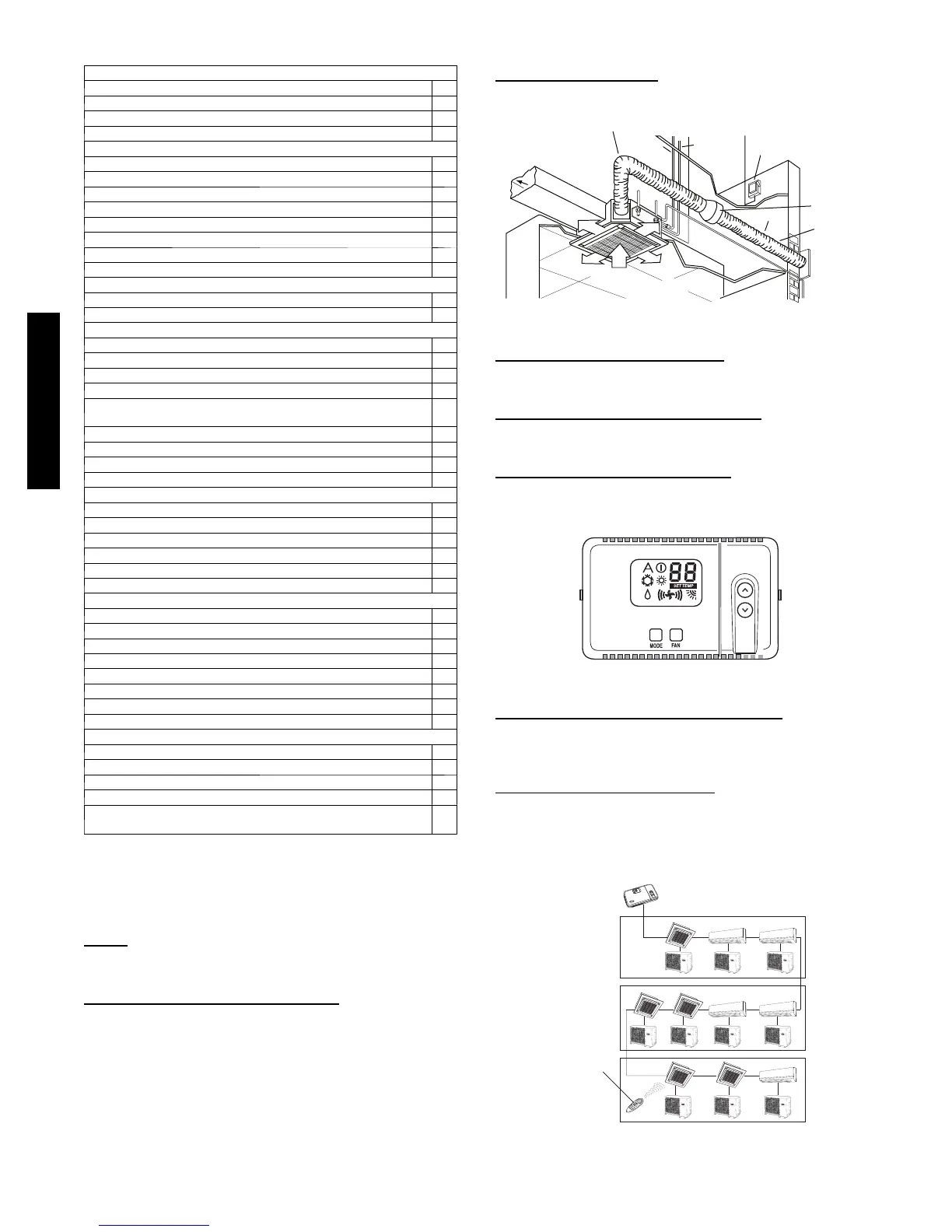

STANDARD FEATURES AND ACCESSORIES
Ease Of Install ation
Indoor and O utdoor Compact Size S
Outdoor Unit Wall Mounting Kit A
Outdoor Unit Stacking K i t A
Built --- in Condensate P ump S
Comfort Features
Microprocessor Controls S
Automatic Air Sweep S
Air Direction Control S
Auto Restart Function S
Cold Blow Protection On Heat Pumps S
Air Stratification Compensation S
Emergency Run Mode S
Auto Changeover on Heat Pumps S
Energy Saving Features
Sleep Mode S
Stop/Start Timer S
Safety And Reliability
3MinuteTimeDelayForCompressor S
Over Current Protection For Compressor S
Crankcase Heater (standard on 38QRF--- 030,035) A
High and Low Pressure Sw itches on Cooling Only Units S
High Pressure Switch and Loss of Charge Switch on Heat
Pump
S
Indoor Coil Freeze Protection S
Indoor Coil High Temperature P rotection On Heat Pumps S
Condenser High Temperature Protection On Heat Pumps S
Accumulator On Cooling Only and Heat Pumps S
Ease Of Service And Maintenance
Control Box Accessible From Bottom of Unit S
Cleanable Filters S
Diagnostics S
Te s t M od e S
Liquid Line Pressure Taps S
Suction And Discharge Pressure Taps S
Application Flexibility
208/230 and 460 3 Phase on Size 035 and 036 S
Long L i nes up to 200 feet (61 m) (accessories required) A
Power Ventilation Kit A
Low Ambient Controls (--- 20° F / ---28.9° C) A
Knock--- out to run a duct from an adjacent room A
Wind Baffles A
Wired or Wireless Controls A
Zone Manager A
Warranty
5 --- Year Compressor Warranty S
1 --- Ye a r P a r t s Wa r r a n t y S
Compressor Extended Warranty Years 6 Thru 10 O
All Parts And Labor Years 2 Thru 5 O
All Parts And Labor Years 2 Thru 5,
Compressor Years 6 Thru 10
O
Legend
SStandard
A Accessory
OOptional
INDOOR UNIT ACCESSORIES
Grille
To maximize shipping efficiency, the grille for the in--ceiling
cassette is set up as an accessory.
Air Supply Outlet Obstruction Kit
This kit can be used when up to two discharge outlets need to be
blocked in applications where the unit is installed close to a wall or
a corner.
Power Ventilation Kit
This kit will allow up to 20% of outside air to be introduced into
the conditioned space.
4" FLEX DUCT
AIRFLOW
INSULATED
LIQUID LINE
INSULATED
SUCTION LINE
WEATHERPROOF
FUSED DISCONNECT
PER NEC
4" FLEX DUCT
POWER
VENTILATION
ACCESSORY
POWER
VENTILATION
A07268
Fig. 1 – Power Ventilation Kit
Remote Control (33MC--UMC)
To provide added flexibility of choosing the user interface method
with the unit, a remote control or wired controller can be ordered.
Remote Control Locking Mount Kit
This kit can be used where there is a concern that the remote
control can be misplaced. This accessory locks the remote in place.
Wired Controller (33MC--URC)
For applications where the use of a wireless remote control is not
desired, the 40KMC/KMQ units can be controlled by means of a
wired , wall--mounted control with an LCD display.
A08432
Fig. 2 – Wall Mounted Control with LCD Display
Room Control Wiring Kit (33MC9005)
Up to six units can be daisy--chained together and controlled by
one wired remote controller. A room control wiring kit is required
for each slave unit.
Zone Manager (33MC--UZM)
For applications where more sophisticated controls are required, a
Zone Manager that permits the connection of up to 32 different
indoor units, divided into a maximum of eight different zones, can
be used. Zone Manager Wiring Kit (33MC9004) is required to
connect different units to the zone manager.
Zone Manager
ZONE ..
ZONE 1
ZONE 8
Remote Control
A08443
Fig. 3 – Zone Manager Connection
40KMC, KMQ / 38HDF,QRF
