DIMENSIONS
'
+
=
=
=
+
+
$
$
5
5
'
'
%
%
'
8QLWLQFKPP
=

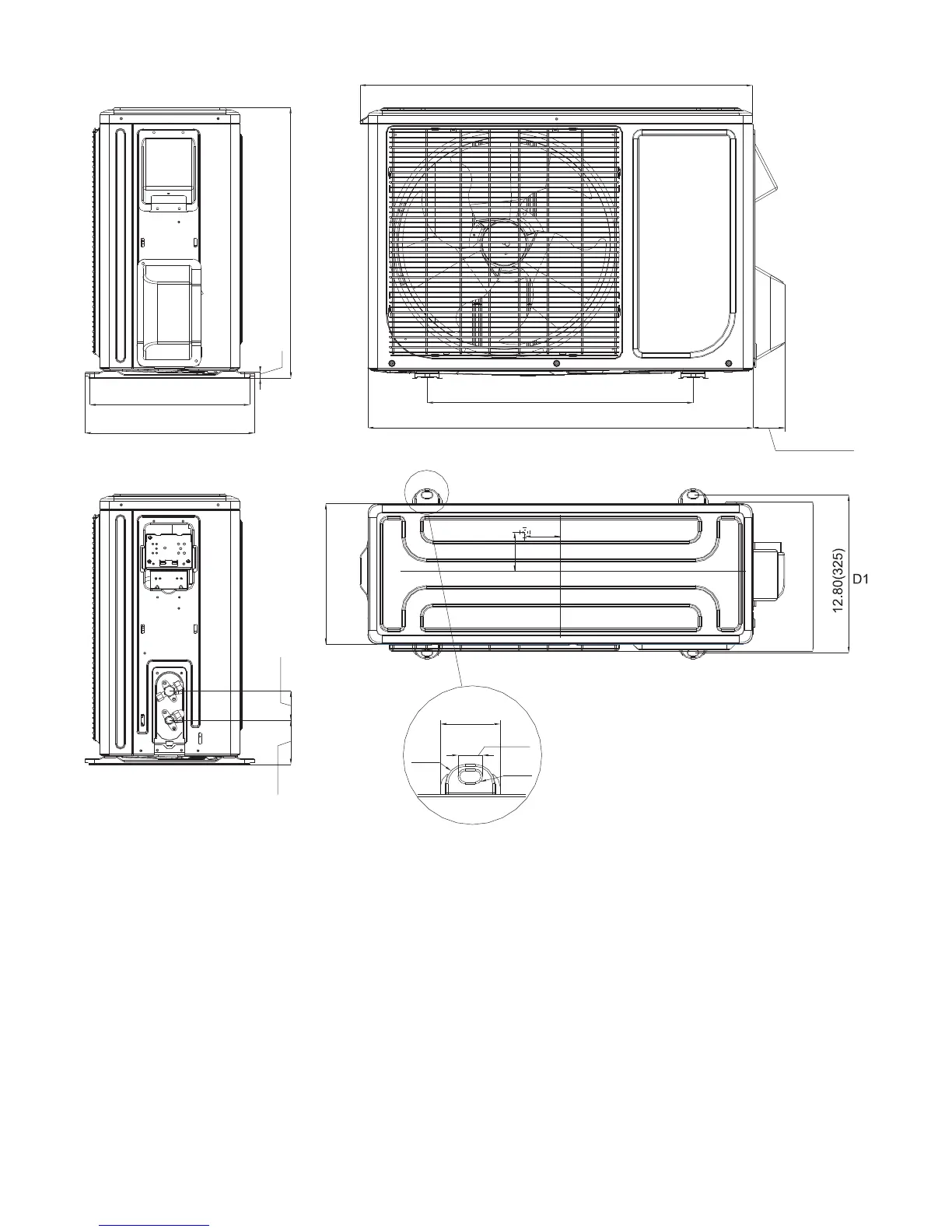

Fig. 1 – Outdoor Unit 9K and 12K
Table 3—Outdoor Units
System Size 9K 12K 9K 12K
V-Ph-Hz 115-1-60 208/230-1-60
Height (H) in (mm) 21.97 (558) 21.97 (558) 21.97 (558) 21.97 (558)
Width (W) in (mm) 31.89 (810) 31.89 (810) 31.89 (810) 31.89 (810)
Depth (D) in (mm) 12.2 (310) 12.2 (310) 12.2 (310) 12.2 (310)
Weight-Net lbs (kg) 82.45 (37.4) 82.45 (37.4) 82.45 (37.4) 82.45 (37.4)
