38GL...G / 38YY...G / 38YYS...G
GB - 2
Mod. 38GL018G, 024G
Mod. 38YY(S)018G
Mod. 38GL028G, 036G
Mod. 38YYS024G
Mod. 38YY-024G, 028G, 036G
EED
B
C
F
A
EED
B
C
F
A
EED
B
C
F
A
3
1
2
Mod.
Pipe diameter Pipe diameter
Gas Liquid Gas Liquid
(Suction) (Liquid) (Suction) (Liquid)
mm inches
18
12.70 6.35 1/2” 1/4”
24
28 15.87 6.35 5/8” 1/4”
36
48
19.05 9.52 3/4” 3/8”
Model
18 24 28 36 48
Max. pipe length 30 m 40 m 40 m 40 m 50 m
Max. height difference 10 m 15 m 25 m 30 m 30 m
38GL018G, 024G 38GL028G, 036G 38GL048G
38YY(S)018G
38YY(S)024G
38YY-028G, 036G 38YY-048G
18 24 28 36 48
A mm 800 800 800 800 800
B mm 590 803 803 803 1264
C mm 300 300 300 300 300
D mm 508 508 508 508 508
E mm 146 146 146 146 146
F mm 330 330 330 330 330
kg 46 52 67 68 94
Mod. 38GL048G
Mod. 38YY-048G

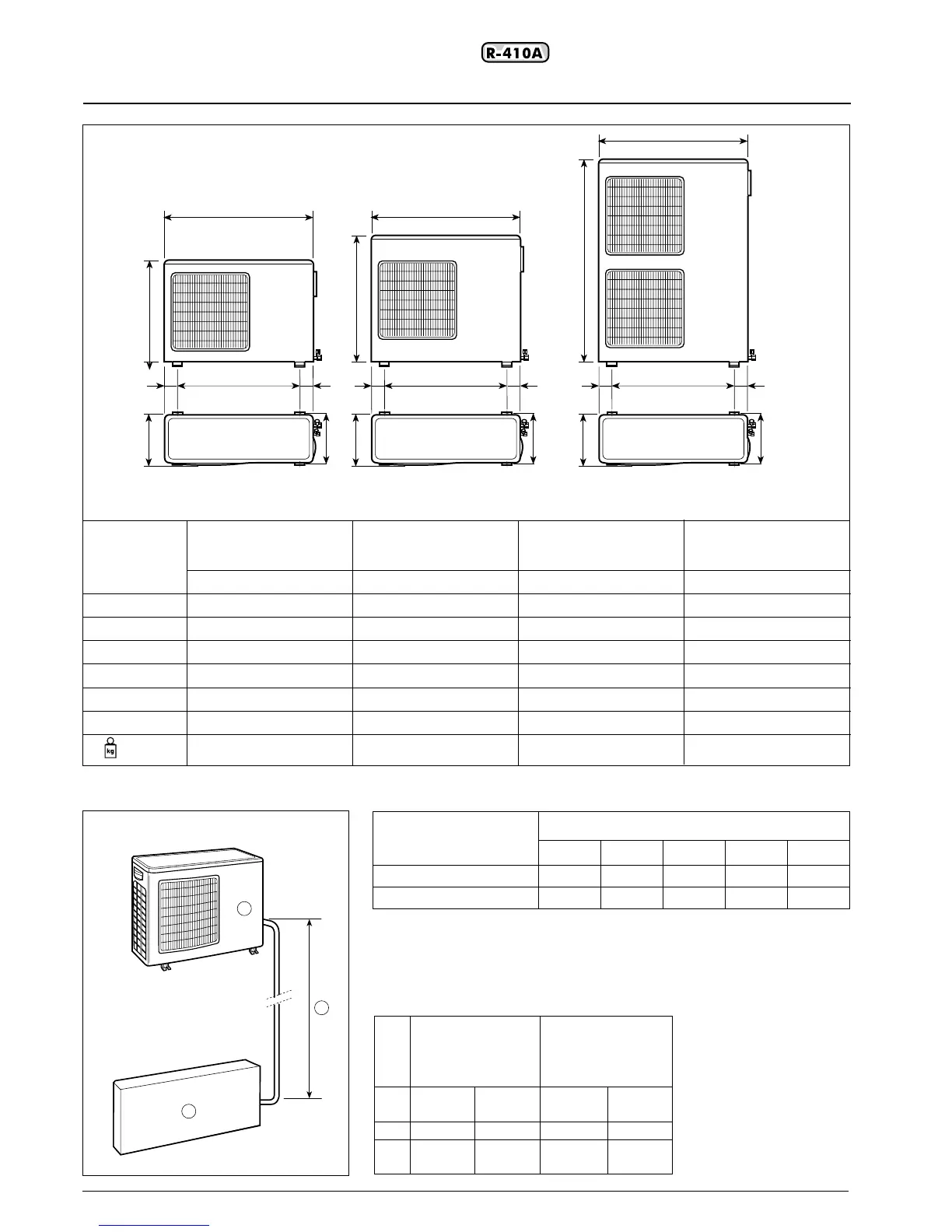

Dimensions and weight
햲 Outdoor unit
햳 Indoor unit
햴 Height difference
Connections
All fittings are flare type.
Use only refrigeration grade pipes, (Cu DHP type according to
ISO 1337), seamless, degreased, deoxidized and suitable for operating pressures of at
least 4200 kPa and with a burst pressure of 20700 kPa.
Under no circumstances must sanitary type copper pipe be used.
Table II: Connections
