DIMENSIONS - OUTDOOR

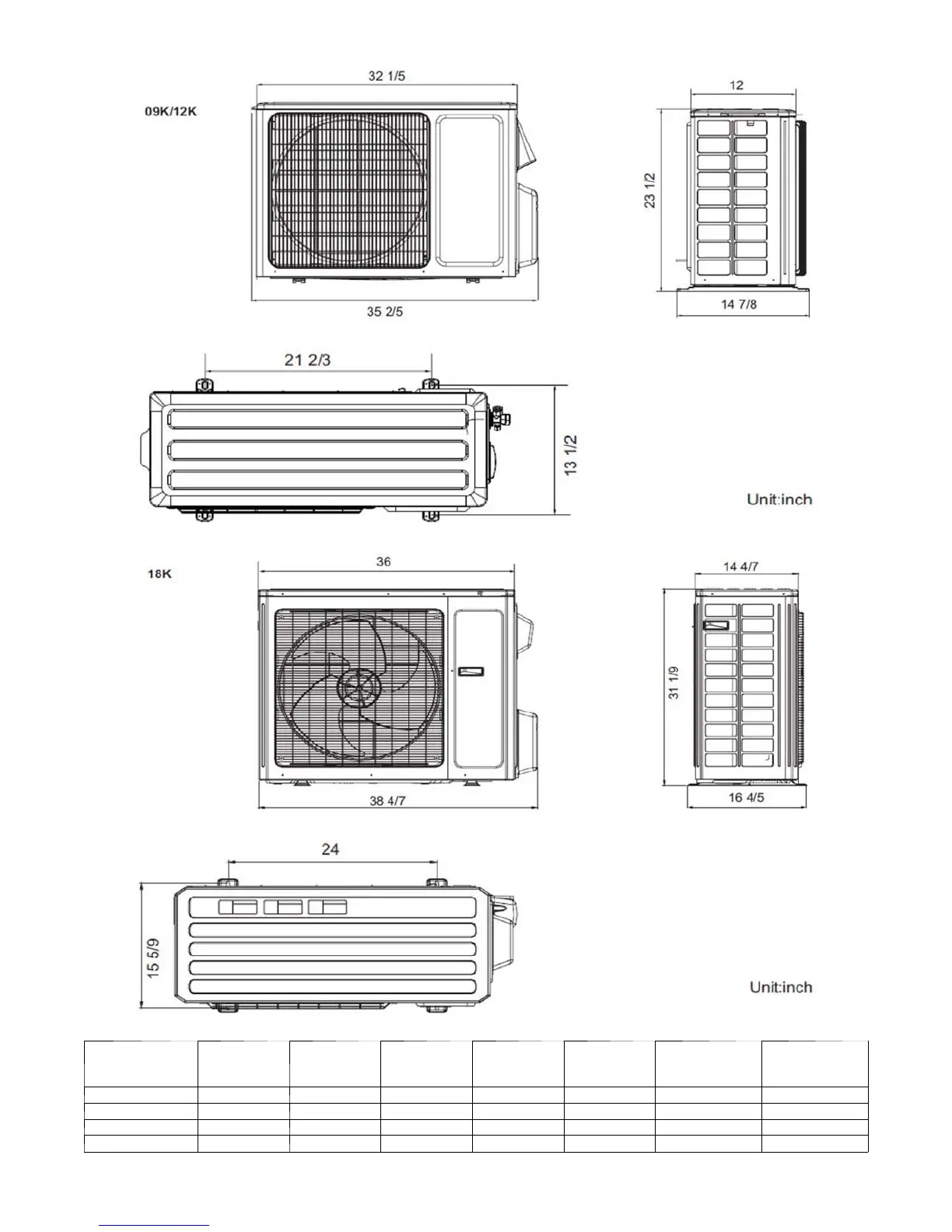

Fig. 3 – Dimensions
Fig. 4 – Dimensions
Fig. 5 – Dimensions
Fig. 6 – Dimensions
Model W in (mm) D in (mm) H in (mm) L1 in (mm) L2 in (mm)
HP
Operating
Weight lb (kg)
AC
Operating
Weight lb (kg)
9K 30.7 (780) 9.8 (250) 21.2 (540) 21.6 (549) 10.9 (276) 70.5 (32.0) 58.4 (26.5)
12K 30.7 (780) 9.8 (250) 21.2 (540) 21.6 (549) 10.9 (276) 70.5 (32.0) 61.7 (28.0)
17K HP / 18K AC 29.9 (760) 11.2 (285) 23.2 (590) 20.9 (530) 11.4 (290) 82.7 (37.5) 76.0 (47.0)
22K 33.3 (845) 12.6 (320) 27.6 (700) 22.0 (560) 13.2 (335) 103.6 (47.0) 98.1 (44.5)
