Carrier 40GRQB12B-3 - Refrigeration System Diagram

12

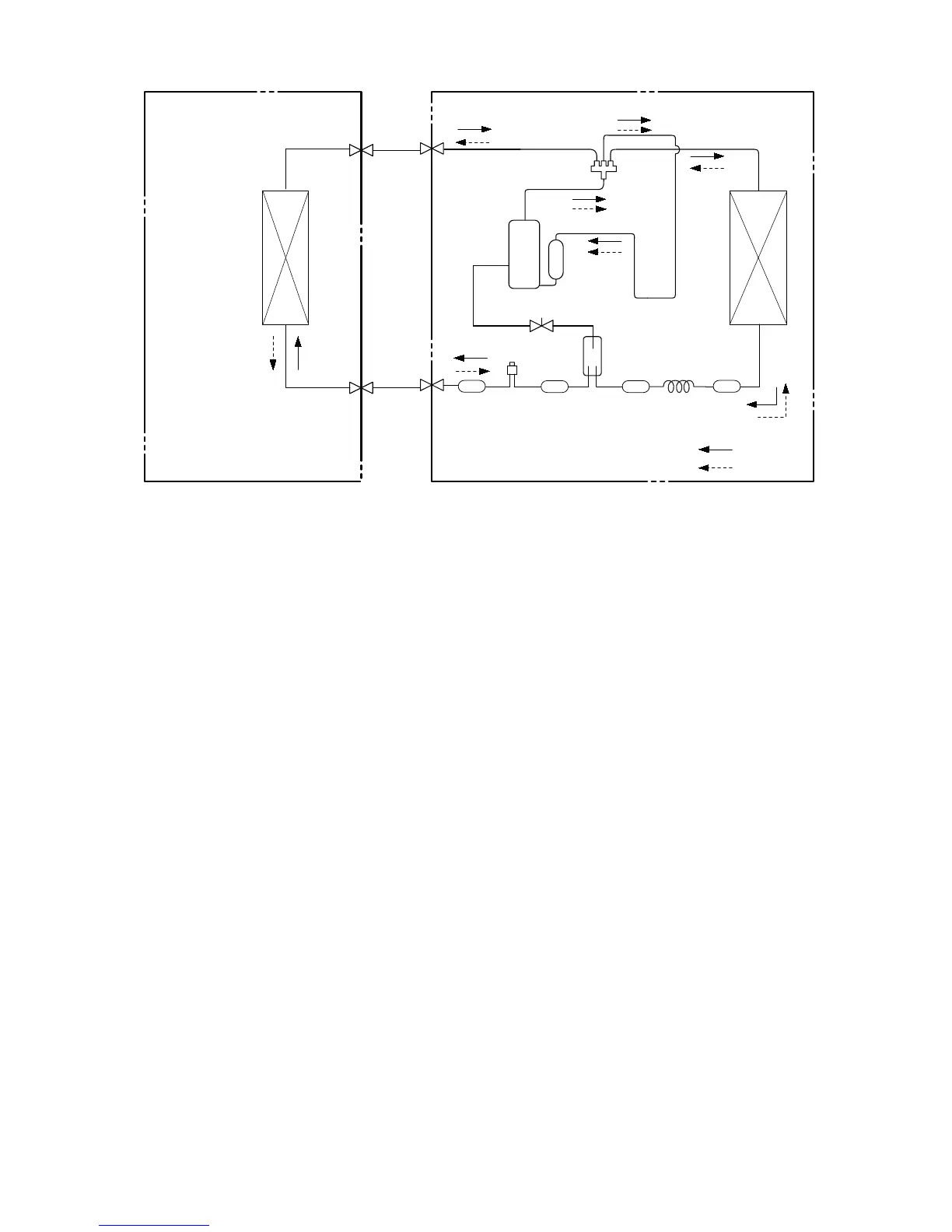

REFRIGERATION SYSTEM DIAGRAM
TINU ROODTUOTINU ROODNI
HEAT
EXCHANGE
(EVAPORATOR)
HEAT
EXCHANGE
(CONDENSER)
COMPRESSOR
GAS SIDE
3-WAY VALVE
LIQUID SIDE
2-WAY VALVE
COOLING
HEATING
Accumlator
Discharge
Suction
4-Way valve
Electron
Strainer
Strainer
expansion
valve
Strainer
Capillary
D
Strainer
Intercooler
Fig. 13 – Refrigeration System Diagrams
Connection pipe specification:
Liquid: ¼”
Gas: ½” (09K/12K)
Gas:
⅝” (18K)
