EN

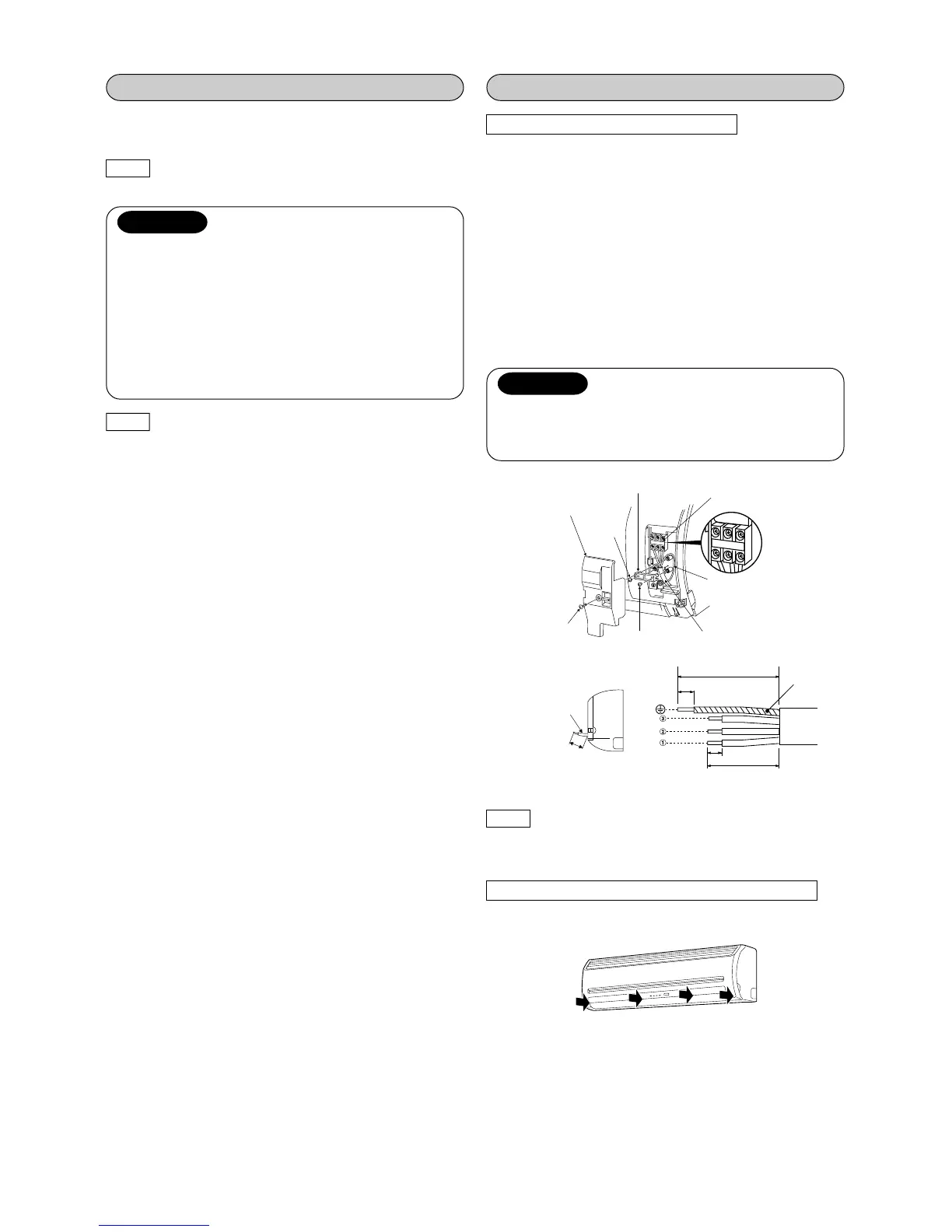

Electrical Work
1.The supply voltage must be the same as the rated voltage of the
air conditioner.
2.Prepare the power source for exclusive use with the air conditioner.
CAUTION
• This appliance can be connected to the mains in either of the
following two ways.
(1) Connection to fixed wiring:
A switch or circuit breaker which disconnects all poles and
has a contact separation of at least 3 mm must be
incorporated in the fixed wiring. An approved circuit breaker
or switches must be used.
(2) Connection with power supply plug:
Attach power supply plug with power cord and plug it into
wall outlet. An approved power supply cord and plug must
be used.
NOTE
• Perform wiring works so as to allow a general wiring capacity.
How to connect the connecting cable
Wiring of the connecting cable can be carried out without
removing the front panel.
1.Remove the air inlet grille.
Open the air inlet grille upward and pull it toward you.
2.Remove the terminal cover and cord clamp.
3.Insert the connecting cable (according to the local cords) into the
pipe hole on the wall.
4.Take out the connecting cable through the cable slot on the rear
panel so that it protrudes about 15 cm from the front.
5.Insert the connecting cable fully into the terminal block and
secure it tightly with screws.
6.Tightening torque : 1.2 N·m (0.12 kgf·m)
7.Secure the connecting cable with the cord clamp.
8.Fix the terminal cover, rear plate bushing and air inlet grille on the
indoor unit.
CAUTION
• Be sure to refer to the wiring system diagram labeled inside
the front panel.
• Check local electrical cords and also any specific wiring
instructions or limitations.
NOTE
• Wire type : More than H07RN-F or 245 IEC66
Wiring Connection
NOTE
• Use stranded wire only.
• Wire type : H07RN-F or more
How to install the air inlet grille on the indoor unit
• When attaching the air inlet grille, the contrary of the removed
operation is performed.
4
Earth line
Connecting cable
about 15 cm
Stripping length of the connecting cable
Connecting cable
Screw
Screw
Earth line
Terminal block
Screw
Cord clamp
Terminal cover
1
2
3
1
3
2
10 mm
10 mm
50 mm
110 mm
To Next Page
