Electrical wiring
Depending on whether the unit is installed
on the wall (console) or the ceiling
(underceiling), the electrical wiring of the
indoor unit must be routed differently.
Fig. 24 shows the positions where the
existing indentation in the left-hand side
cover of the indoor unit must be broken to
route the wiring.
7.3 Changing the Wireless Remote Control to a Wired Remote Control
To modify the option to use the indoor unit
from the wireless remote control to the wired
remote control, the following steps must be
followed - according to the illustrations on the
following pages:
-Disconnect the intermediate plug which
links the three-way cable of the board to
the display, indicated by the number ,
and connected to the main board.
- This cable will remain loose inside
the indoor unit.
-Connect the intermediate plug to the
three-way cable of the wired remote
control, indicated by the number .

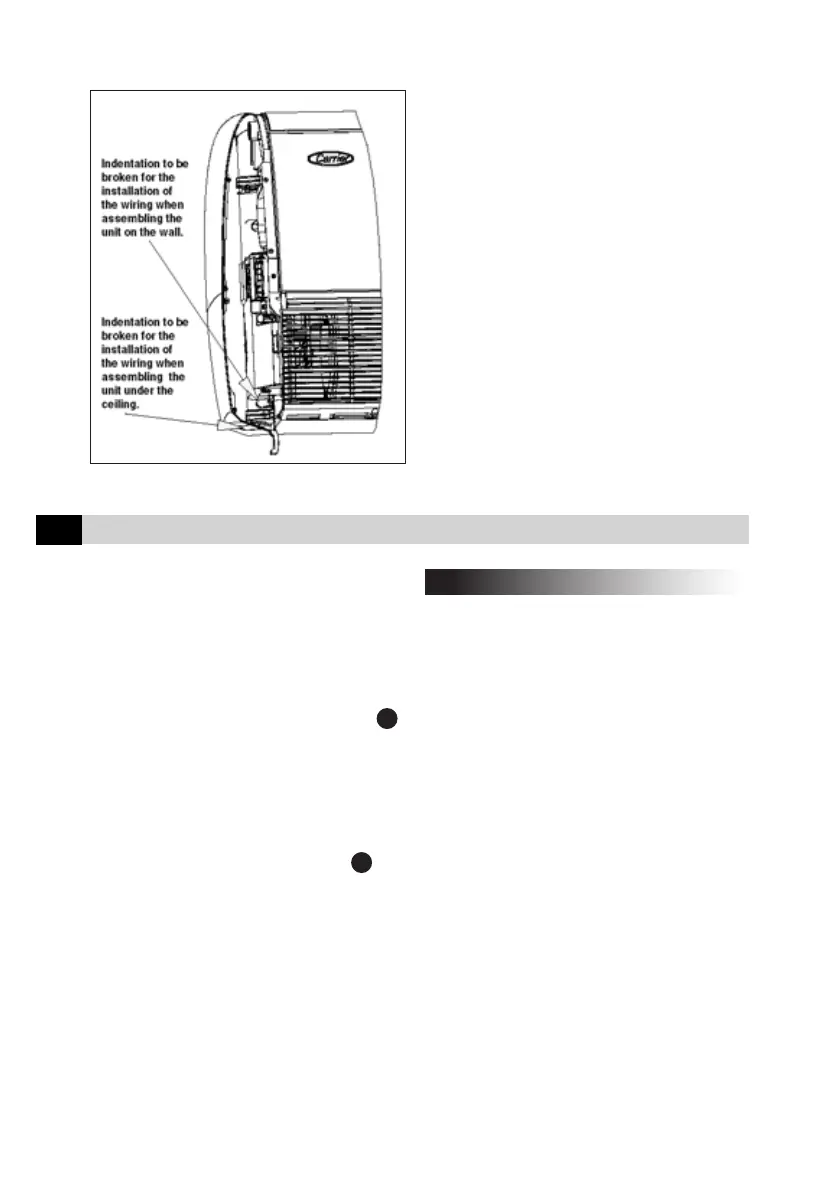

Fig. 24 - Indentation of wiring output
1
2
The Split Space is factory fitted to operate
with the Wireless Remote Control kit.
NOTE
To Next Page
