45MBCAQ: Installation Instructions
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
24
1. Hang the intake grille on the panel, and then connect the lead
connectors of the louver motor and the control box on the panel to the
corresponding connectors of the main body.

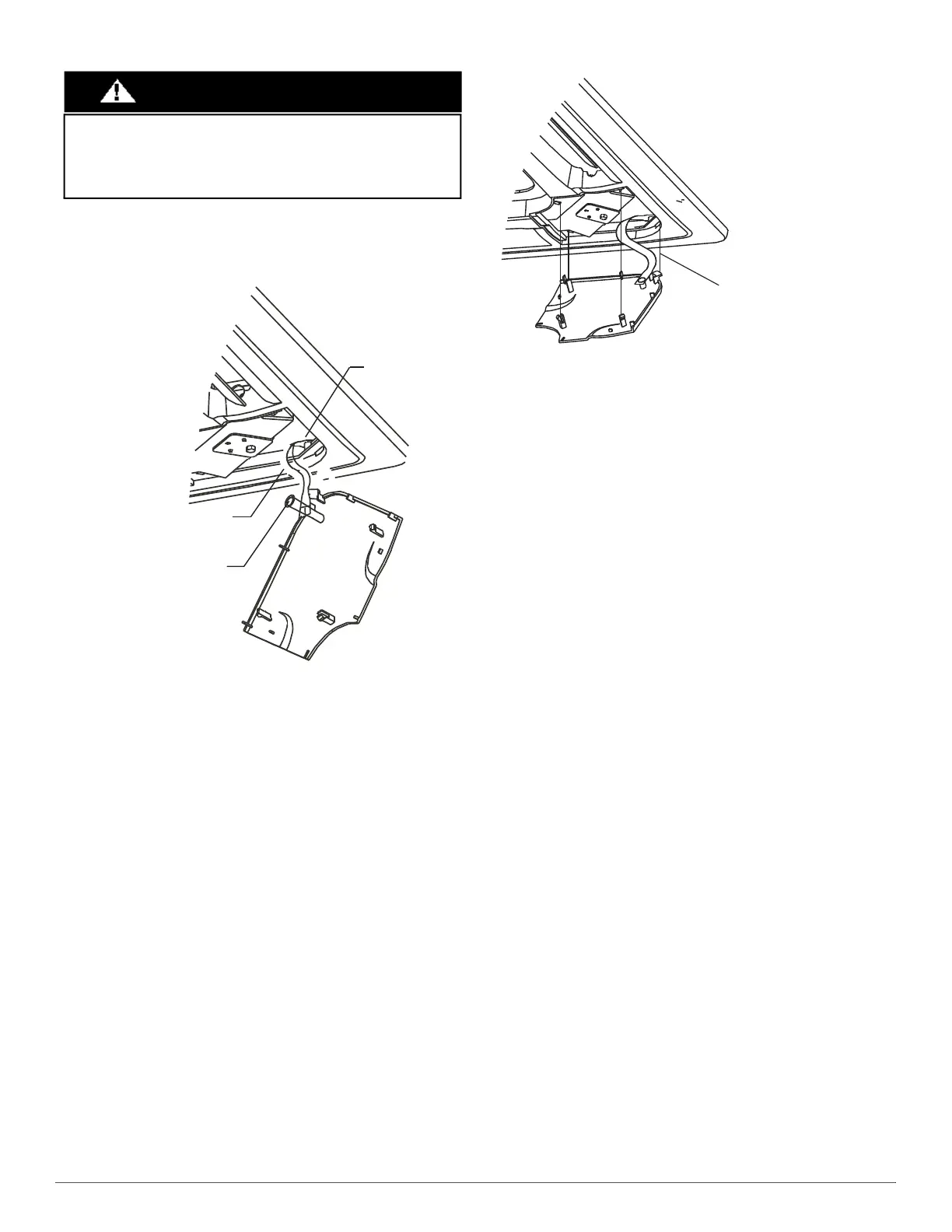

Fig. 37 —Connect Lead Connectors of Louver Motor
and Control Box
2. Re-installed into the style grid.
3. Reinstall the installation cover.
4. Fix the installation cover plate rope to the pillar of the installation
cover plate, and gently press the installation cover plate into the
panel.
Fig. 38 —Reinstall Installation Cover
NOTE: After installation, the butt plugs of display, swing, water pump and
other wire bodies must be placed in the electric control box.
If the unit is not hung correctly and a gap exists, the unit’s height must
be adjusted to ensure proper function. The unit’s height can be
adjusted by loosening the upper nut, and adjusting the lower nut.
CAUTION
Bolt
l cover rope
Panel hook
When installing the
cover, slide the four
slide fasteners into
the corresponding
slots on the panel.
To Next Page
