DIMENSIONS
Table 1 —Dimensions Indoor

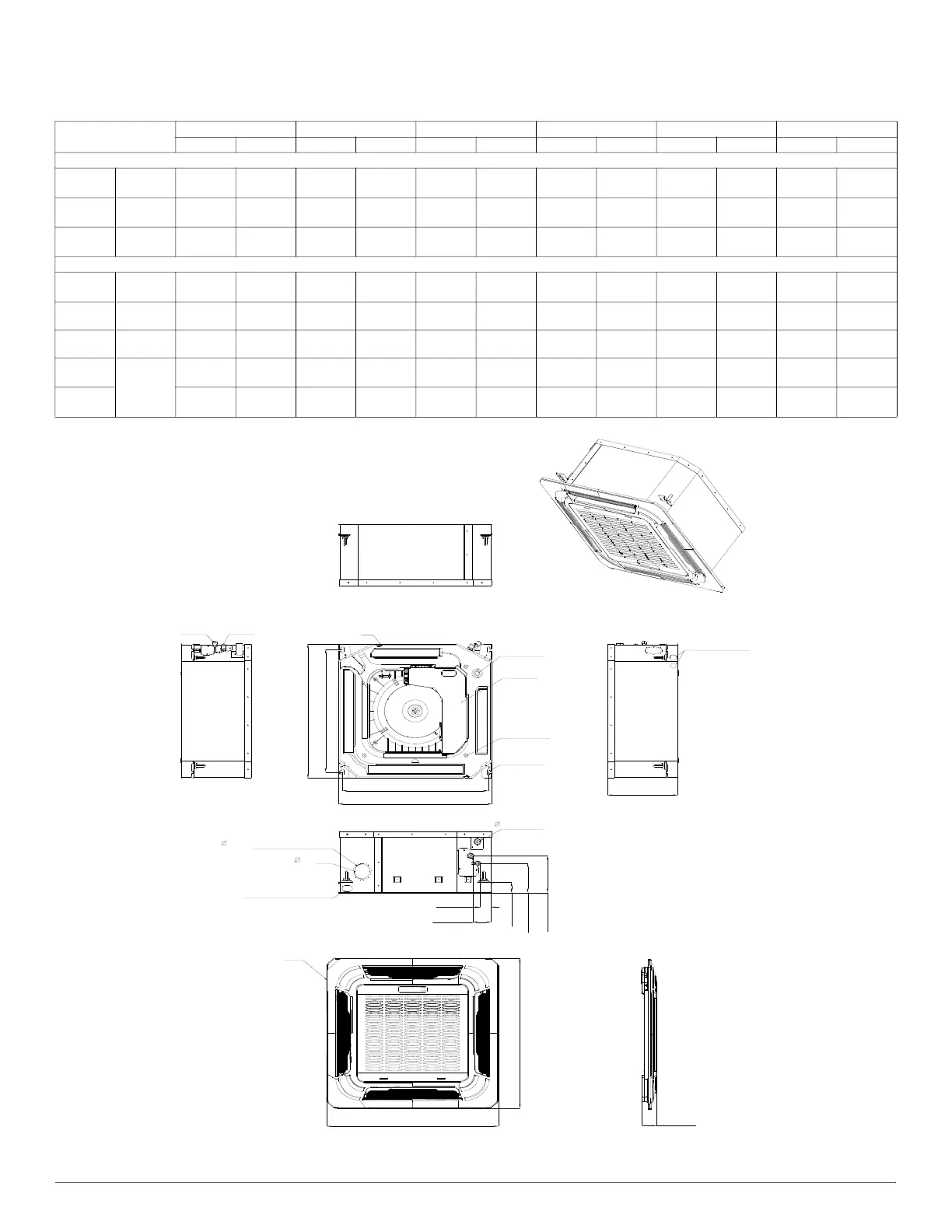

Fig. 1 —Indoor Unit (Sizes 09-18K)
UNIT SIZE
9K 12K 18K 24K 36K 48K
Body Panel Body Panel Body Panel Body Panel Body Panel Body Panel
DIMENSIONS
Height in (mm)
10.24
(260)
1.97
(50)
10.24
(260)
1.97
(50)
10.24
(260)
1.97
(50)
8.07
(205)
2.17
(55)
9.65
(245)
2.17
(55)
11.3
(287)
2.17
(55)
Width in (mm)
22.44
(570)
25.47
(647)
22.44
(570)
25.47
(647)
22.44
(570)
25.47
(647)
33.07
(840)
37.4
(950)
33.07
(840)
37.4
(950)
33.07
(840)
37.4
(950)
Depth in (mm)
22.44
(570)
25.47
(647)
22.44
(570)
25.47
(647)
22.44
(570)
25.47
(647)
33.07
(840)
37.4
(950)
33.07
(840)
37.4
(950)
33.07
(840)
37.4
(950)
PACKAGING
Height in (mm)
11.42
(290)
4.84
(123)
11.42
(290)
4.84
(123)
11.42
(290)
4.84
(123)
8.54
(217)
3.54
(90)
10.12
(257)
3.54
(90)
11.5
(292)
3.54
(90)
Width in (mm)
25.79
(655)
28.15
(715)
25.79
(655)
28.15
(715)
25.79
(655)
28.15
(715)
35.43
(900)
40.75
(1035)
35.43
(900)
40.75
(1035)
35.43
(900)
40.75
(1035)
Depth in (mm)
25.79
(655)
28.15
(715)
25.79
(655)
28.15
(715)
25.79
(655)
28.15
(715)
35.43
(900)
40.75
(1035)
35.43
(900)
40.75
(1035)
35.43
(900)
40.75
(1035)
Weight -
Gross
Lbs (kg)
41.88
(19)
9.92
(4.5)
41.88
(19)
9.92
(4.5)
46.3
(21)
9.92
(4.5)
54.23
(24.6)
17.64
(8)
66.14
(30)
17.64
(8)
72.53
(32.9)
17.64
(8)
Weight -
Net
35.27
(16)
5.51
(2.5)
35.27
(16)
5.51
(2.5)
39.68
(18)
5.51
(2.5)
46.3
(21)
11.02
(5)
58.2
(26.4)
11.02
(5)
63.27
(28.7)
11.02
(5)
Panel
Gas side
Liquid side
4-install hanger
Body
Drain pipe
0.98
(25)
Outside Air Intake
2.56(65)
25.47(647)
25.47(647)
Drain hole
1.97(50)
( for Service )
21.46(545)
22.44(570)
10.24(260)
2.67(68)
1.65(42)
6.18(157)
4.96(126)
Wiring connection port
1.73(44)
2.95(75)
E-parts box
4-Screw hole
(for install panel)
22.44(570)
20.59(523)
Wiring connection port
