Carrier 48TC 17 Series - Integrated Gas Control (IGC) Board; IGC Board Connections and Diagrams

47
Red LED-Status
C08452

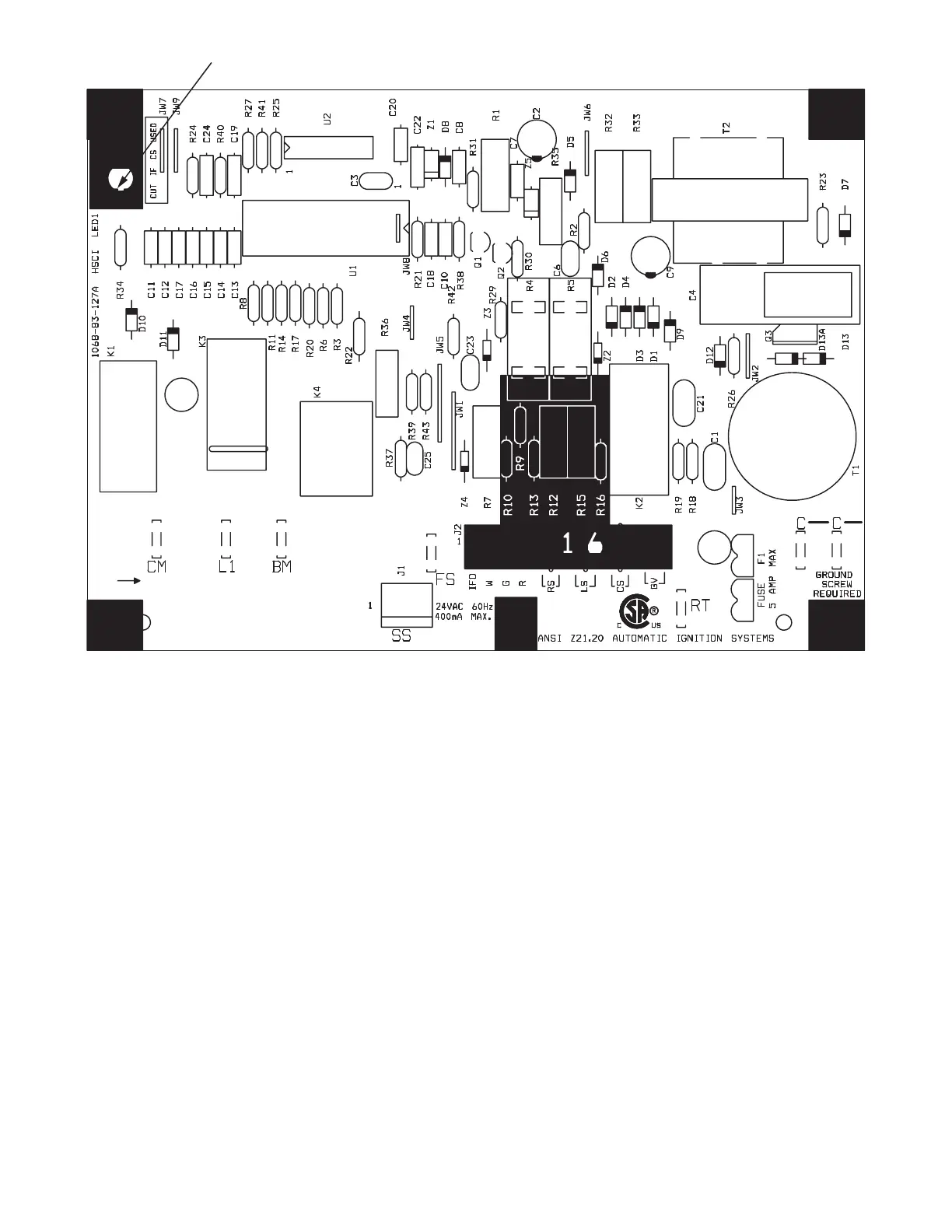

Fig. 59 − Integrated Gas Control (IGC) Board
Table 14 – IGC Connections
TERMINAL LABEL POINT DESCRIPTION SENSOR LOCATION TYPE OF I/O
CONNECTION
PIN NUMBER
INPUTS
RT, C Input power from TRAN 1 control box 24 VAC —
SS Speed sensor gas section analog input J1, 1‐3
FS, T1 Flame sensor gas section switch input —
W Heat stage 1 LCTB 24 VAC J2, 2
RS Rollout switch gas section switch input J2, 5‐6
LS Limit switch fan section switch input J2, 7‐8
CS Centrifugal switch (not used) — switch input J2, 9‐10
OUTPUTS
L1, CM Induced draft combustion motor gas section line VAC
IFO Indoor fan control box relay J2, 1
GV Gas valve (heat stage 1) gas section relay J2, 11‐12
