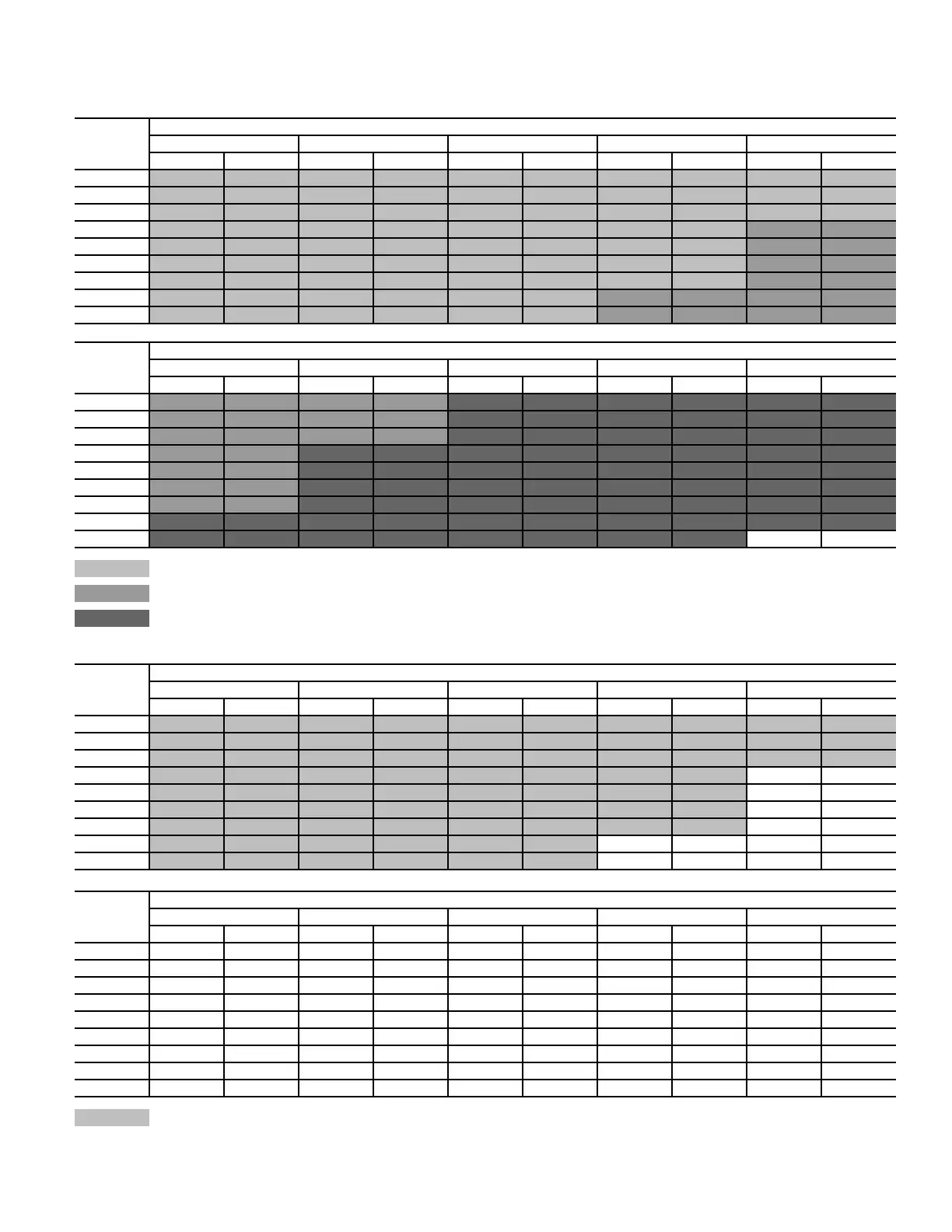

APPENDIX C — FAN PERFORMANCE
50FC-A05 THREE PHASE — 4 TON HORIZONTAL SUPPLY (RPM - BHP)
CFM
AVAILABLE EXTERNAL STATIC PRESSURE (in. wg)
0.2 0.4 0.6 0.8 1.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
1200
1093 0.14 1306 0.24 1497 0.35 1667 0.49 1819 0.64
1300
1148 0.16 1348 0.26 1533 0.38 1700 0.52 1850 0.67
1400
1206 0.18 1393 0.28 1571 0.41 1734 0.55 1883 0.70
1500
1266 0.21 1442 0.31 1612 0.44 1770 0.58 1916 0.73
1600
1329 0.24 1493 0.35 1655 0.47 1808 0.61 1951 0.77
1700
1393 0.28 1546 0.38 1700 0.51 1848 0.65 1988 0.81
1800
1458 0.32 1602 0.42 1747 0.55 1890 0.70 2026 0.86
1900
1523 0.36 1659 0.47 1797 0.60 1934 0.75 2066 0.91
2000
1590 0.41 1718 0.52 1849 0.65 1980 0.80 2108 0.96
CFM
AVAILABLE EXTERNAL STATIC PRESSURE (in. wg)
1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
1200
1959 0.79 2089 0.96 2211 1.14 2327 1.33 2438 1.53
1300
1988 0.83 2117 1.00 2238 1.18 2352 1.37 2462 1.57
1400
2019 0.86 2146 1.03 2266 1.22 2379 1.41 2487 1.61
1500
2052 0.90 2177 1.08 2296 1.26 2408 1.46 2515 1.66
1600
2084 0.94 2209 1.12 2327 1.31 2438 1.51 2544 1.71
1700
2119 0.99 2242 1.17 2358 1.36 2469 1.56 2574 1.77
1800
2154 1.03 2276 1.22 2391 1.41 2500 1.61 2605 1.83
1900
2191 1.08 2311 1.27 2424 1.47 2533 1.68 2636 1.89
2000
2230 1.14 2347 1.33 2459 1.53 2566 1.74 ——
Standard Static 1093-1900 RPM, 0.72 Max BHP
Medium Static 1093-2170 RPM, 1.06 Max BHP
High Static 1093-2660 RPM, 1.96 Max BHP
50FC-A05 THREE PHASE – STANDARD STATIC — 4 TON HORIZONTAL SUPPLY (RPM - VDC)
CFM
AVAILABLE EXTERNAL STATIC PRESSURE (in. wg)
0.2 0.4 0.6 0.8 1.0
RPM Vdc RPM Vdc RPM Vdc RPM Vdc RPM Vdc
1200
1093 5.8 1306 6.9 1497 7.9 1667 8.8 1819 9.6
1300
1148 6.0 1348 7.1 1533 8.1 1700 8.9 1850 9.7
1400
1206 6.3 1393 7.3 1571 8.3 1734 9.1 1883 9.9
1500
1266 6.7 1442 7.6 1612 8.5 1770 9.3 — —
1600
1329 7.0 1493 7.9 1655 8.7 1808 9.5 — —
1700
1393 7.3 1546 8.1 1700 8.9 1848 9.7 — —
1800
1458 7.7 1602 8.4 1747 9.2 1890 9.9 — —
1900
1523 8.0 1659 8.7 1797 9.5 — — — —
2000
1590 8.4 1718 9.0 1849 9.7 — — — —
CFM
AVAILABLE EXTERNAL STATIC PRESSURE (in. wg)
1.2 1.4 1.6 1.8 2.0
RPM Vdc RPM Vdc RPM Vdc RPM Vdc RPM Vdc
1200 ——————————
1300 ——————————
1400 ——————————
1500 ——————————
1600 ——————————
1700 ——————————
1800 ——————————
1900 ——————————
2000 ——————————
Standard Static 1093-1900 RPM
