SEE NOTES: 1,2,4,7,8,9 on the page
following these figures
A03213

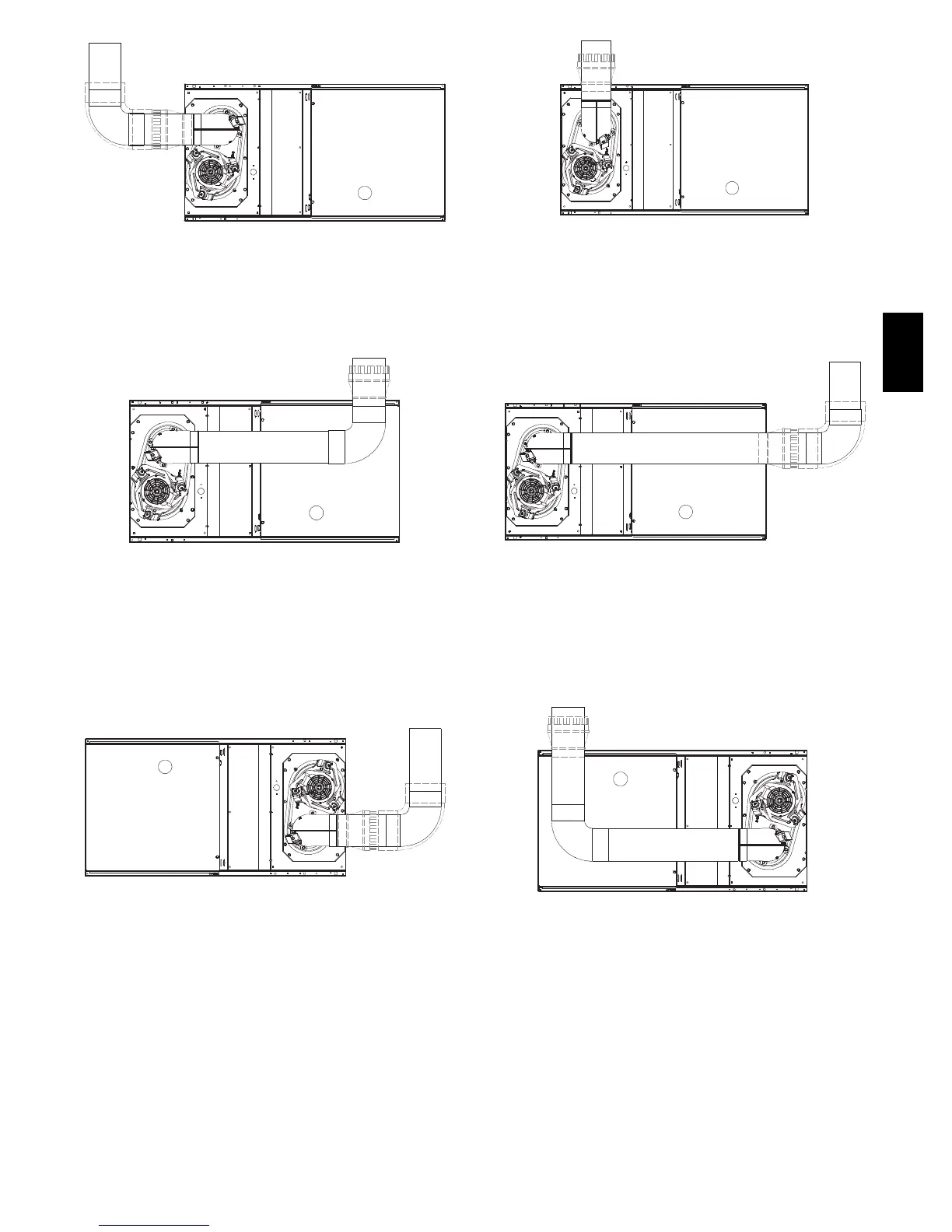

Fig. 41 -- Horizontal Left Application -- Vent Elbow Left
SEE NOTES: 1,2,4,5,7,8,9 on the page
following these figures
A03214
Fig. 42 -- Horizontal Left Application -- Vent Elbow Right
then Up
SEE NOTES: 1,2,4,7,8,9 on the page
following these figures
A03218
Fig. 43 -- Horizontal Right Application -- Vent Elbow Right
SEE NOTES: 1,2,4,5,7,8,9 on the page
following these figures
A03215
Fig. 44 -- Horizontal Left Application -- Vent Elbow Up
SEE NOTES: 1,2,4,5,7,8,9 on the page
following these figures
A03216
Fig. 45 -- Horizontal Left Application -- Vent Elbow Right
SEE NOTES: 1,2,4,5,7,8,9 on the page
following these figures
A03219
Fig. 46 -- Horizontal Right Application -- Vent Elbow Left
then Up
