U PFLOW DOWN FLOW HO RIZO NTAL
YES
YES
[......
YES
\
120°_
MIN
YES
\
12oo_
MIN
YES
\
120°_
MIN
YES
NO NO

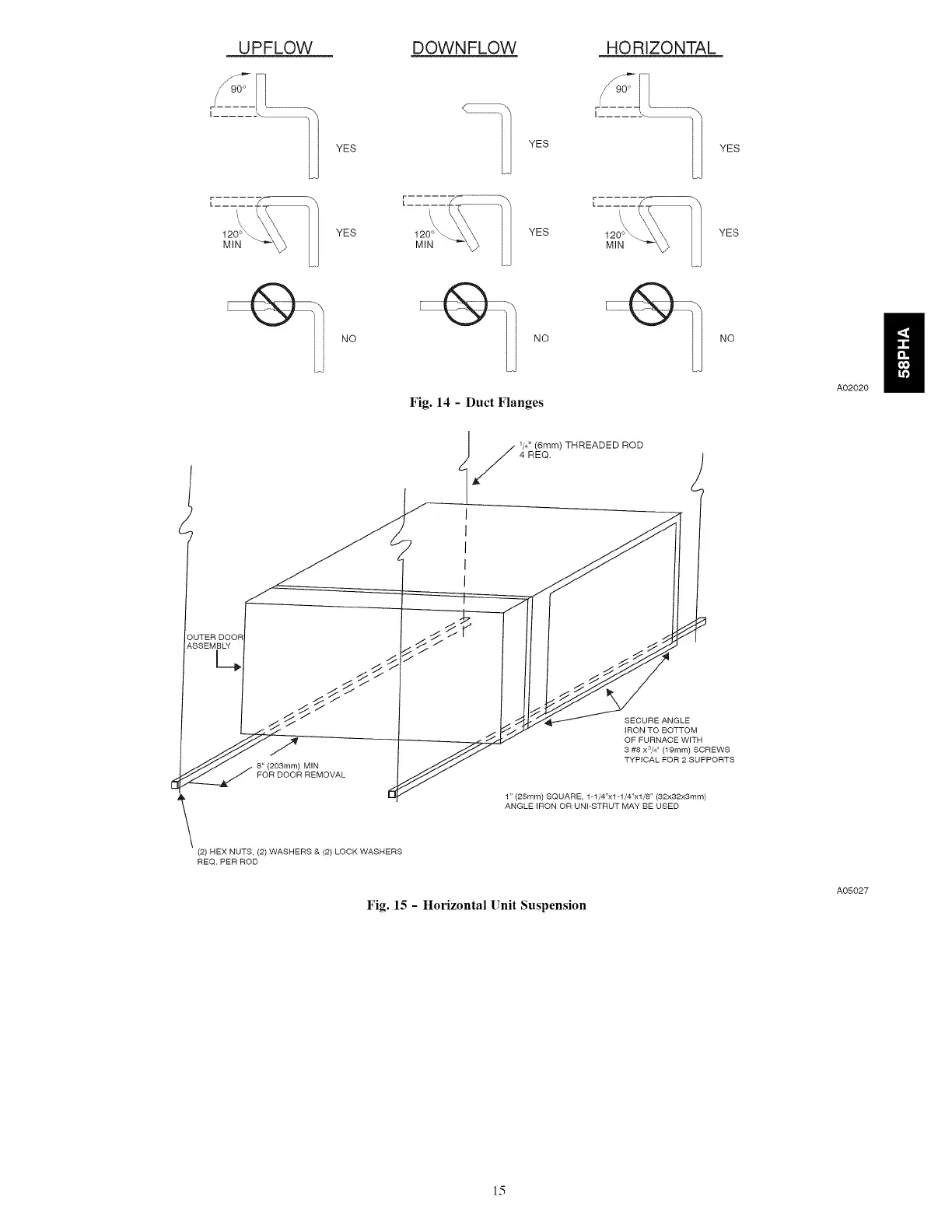

Fig. 14 - Duct Flanges
NO
A02020
il
/ /4" (6mm) THREADED ROD
4 REQ.
8" (203mm) MIN
FOR DOOR REMOVAL
SECURE ANGLE
IRON TO BOTTOM
OF FURNACE WITH
3 #8 xS/4 '' (t9mm) SCREWS
TYPICAL FOR 2 SUPPORTS
1" (25ram) SQUARE, 1-1/4"xl-1/4"xl/8" (32x32x3mm)
ANGLE IRON OR UNFSTRUT MAY BE USED
(2) HEX NUTS, (2) WASHERS & (2) LOCK WASHERS
REQ. PER ROD
Fig. 15 - Horizontal Unit Suspension
A05027
15
