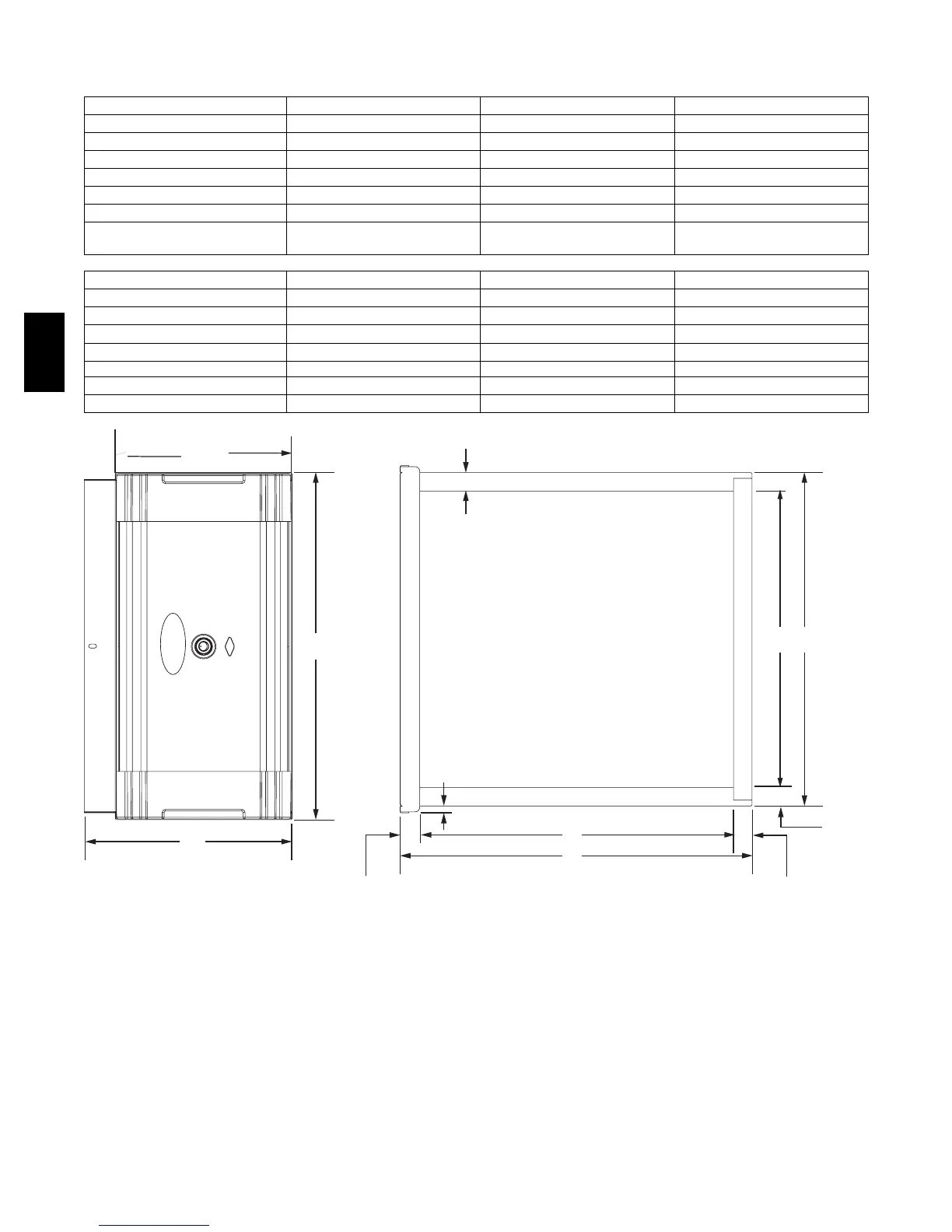

SPECIFICATIONS AND DIMENSIONS
Table 1—Specifications and Dimensions
Specifications GAPABXCC1620 GAPABXCC2020 GAPABXCC2420
Color Taupe Metallic Taupe Metallic Taupe Metallic
Cabinet Material 20 Ga. Powder Coated Steel 20 Ga. Powder Coated Steel 20 Ga. Powder Coated Steel
Electrical 208/230v/60Hz 208/230v/60Hz 208/230v/60Hz
Maximum Airflow (CFM) 1350 1800 2000
Efficiency Equivalent to MERV 15 Equivalent to MERV 15 Equivalent to MERV 15
Replacement Cartridge GAPCCCAR1620 GAPCCCAR2020 GAPCCCAR2420
Initial Pressure Drop (in w.c.)
(at maximum airflow)
.22 .25 .22
Dimensions GAPABXCC1620 GAPABXCC2020 GAPABXCC2420
A 18---1/2 22 25---1/2
B 15---1/8 18---5/8 22---1/8
C 13---1/8 13---1/8 13---1/8
D 17---5/8 21---1/8 24---5/8
E 19---3/4 19---3/4 19 ---3/4
F 22---1/4 22---1/4 22---1/4
G 11---1/4 11---1/4 11---1/4
A
C
G
DB
E
F
3/8" (Typical Top & Bottom)
1 1/2"
1 3/16"
1 3/16"
1 3/16"
A06378
Fig. 15 --- Dimensions
