Carrier PGAPAXX1625 User Manual

4
A
ir Flow
Air Flow
Air Flow
Air Flow
NOTE:
Mounting on this side
requires the cabinet
to be rotated 180° for
correct air flow. This
places the hinged end
the door at the top of
the cabinet and the
handle/latch at the
bottom.
A11333

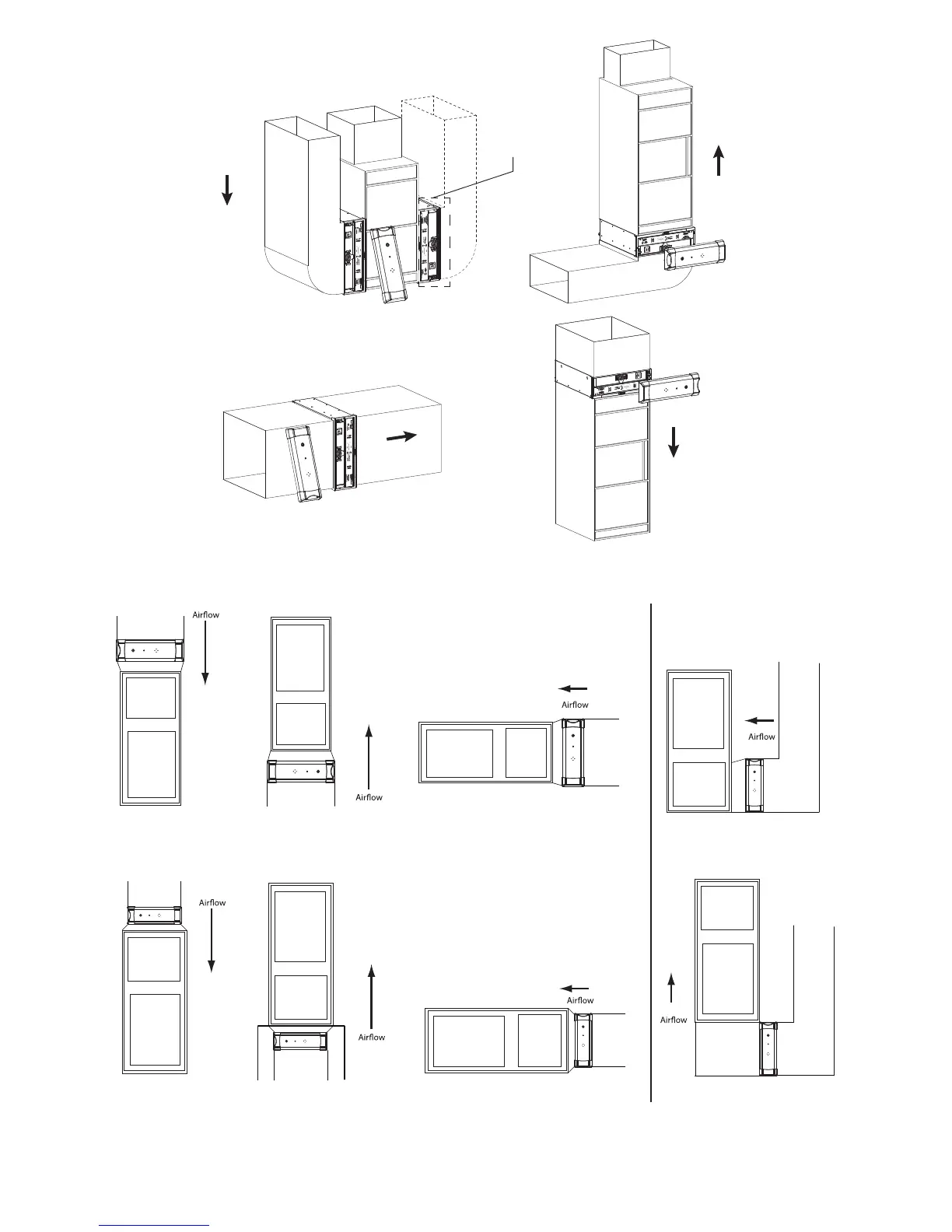

Fig. 3 -- Air Purifier Cabinet Orientation
Downflow 14” Furnace
with Top Mount
Upflow 14” Furnace
with Bottom Mount
Horizontal 14” Furnace
with Side Mount
Plenum
Box
Upflow Furnace
with Plenum Box
Horizontal 24” Furnace
Downflow 24” Furnace
with Top Mount
Upflow 24” Furnace On Stand
with Bottom Mount
Upflow Furnace
A11331
Fig. 4 -- Air Purifier Cabinet Orientation with Transition

Carrier PGAPAXX1625 Specifications

General

Brand	Carrier
Model	PGAPAXX1625
Category	Air Cleaner
Language	English
