START--UP AND OPERATION

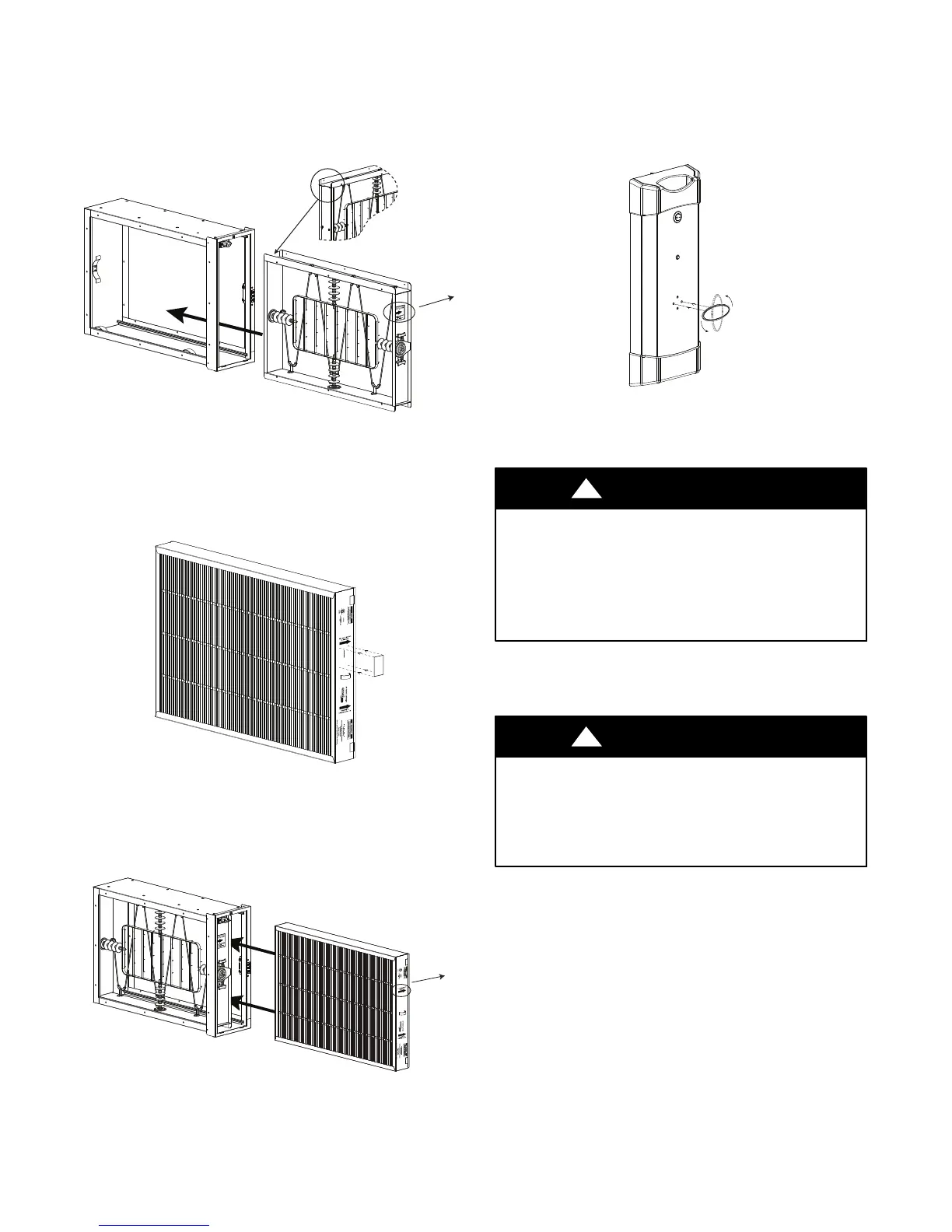

Final Assembly
1. Install the Filter Enhancement Module (FEM) into the cab-
inet, insuring that FEM is held firmly in place by the reten-
tion springs and that the high voltage connector/handle is
facing outward. See Fig. 15.
Airflow
A11495
Fig. 15 -- Installing FEM
2. Apply the desired brand label to the filter . Select either the
Carrier or Bryant label from the accessory bag containing
installation components and affix it to the filter frame in the
designated location as illustrated in Fig. 16.
A11498
Fig. 16 -- Apply Filter Brand Label
3. Slide the filter into the cabinet next to the FEM with the fil-
ter pull--tab facing outward and paying particular attention
to the airflow direction arrows. See Fig. 17.
Airflow
A11496
Fig. 17 -- Replace Filter
4. Insert the desired brand logo into the front of the door pan-
el. To insure that the logo is installed in the proper orienta-
tion, first attach the door to the purifier and then snap the
Carrier or Bryant logo into place with the text in upright po-
sition. See Fig. 18.
5. Affix the “Captures & Kills” label to the front of the purifi-
er door as desired.
A11497
Fig. 18 -- Attach Logo
Checking Air Purifier Operation
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal injury
or death.
Before installing or servicing system, always turn off main
power to system. There may be more than one disconnect
switch. Lock out and tag switch with a suitable warning label.
!
WARNING
1. Attach the Air Purifier door to the cabinet. The power sup-
ply will not energize the Air Purifier if the door is not prop-
erly in place.
CARBON MONOXIDE HAZARD
Failure to follow this warning could result in personal injury
or death.
Do not remove door during blower operation or operate
blower with door removed or improperly latched.
!
WARNING
2. Turn the HVAC system power on and adjust the thermostat
or System Control to activate the system fan.
3. Turn the Air Purifier power switch to on position.
4. The green indicator light above the Air Purifier power
switch should illuminate (see Fig. 19).
