Legend
1 Water chiller (30SZ)
2 Fan coil units
3 Water circulating
pump
4 Inertia accumulator
5 Expansion vessel
6 Pressure gauges at
pressure intake
7 Manual shut-off valves
8 Mesh filter
9 Pressure inlets
10 Thermometers
11 Flow switch
12 Automatic purge
13 Drain
14 Charge valve
15 Flexible coupling
Legend
1 Water chiller (30SZV)
2 Fan coil units
3 Water circulating pump
4 Inertia accumulator
5 Expansion vessel
6 Pressure gauges at
pressure intake
7 Manual shut-off valves
8 Mesh filter
9 Pressure inlets
10 Thermometers
11 Flow switch
12 Automatic purge
13 Drain
14 Charge valve
15 Flexible coupling
16 Condenser

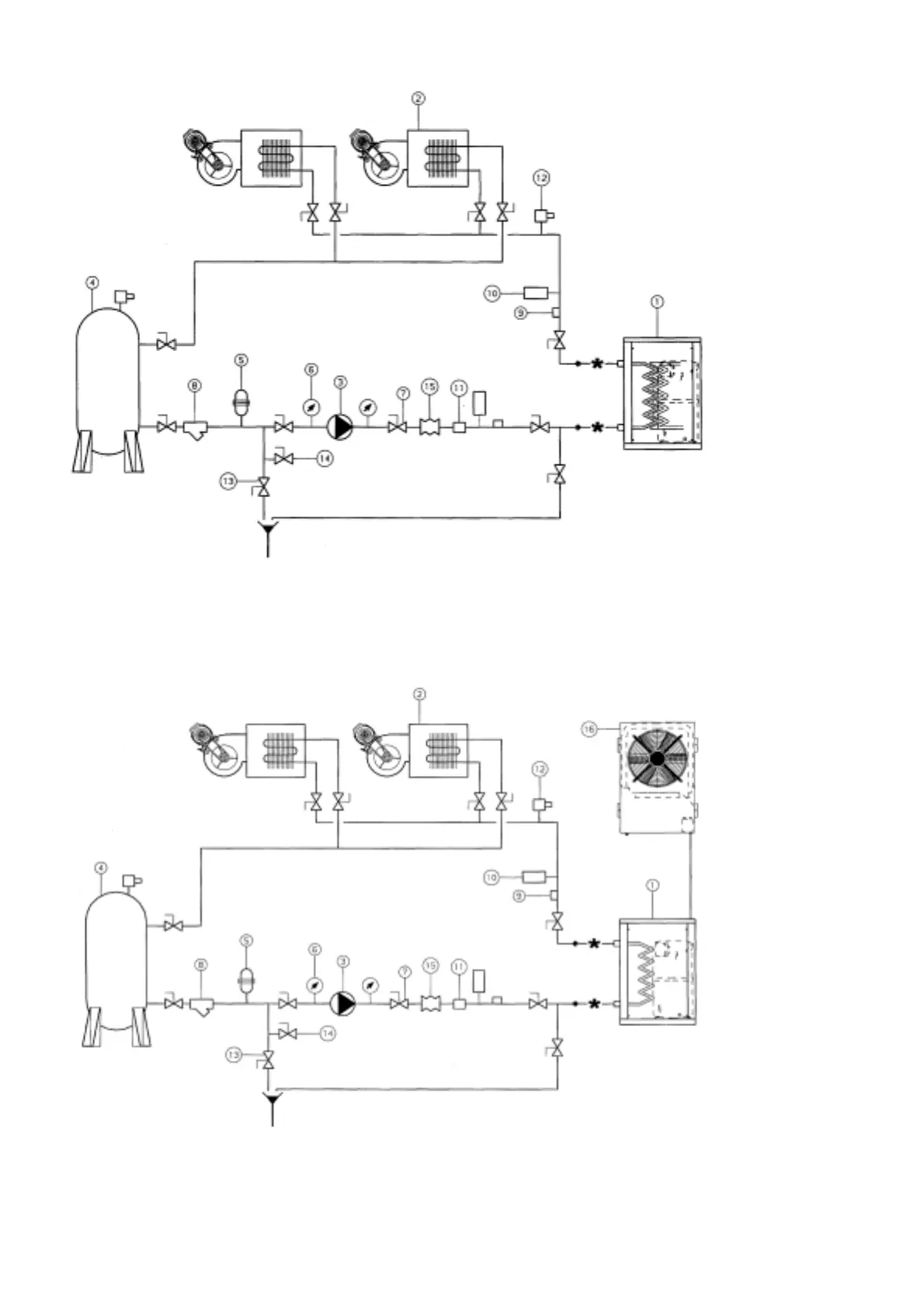

Typical hydraulic installation (30SZ)
Typical hydraulic installation (30SZV)
IMPORTANT: Refer to the certified drawings, to make the unit hydraulic connections.
