6
X
Y
Z
1
2
3
4

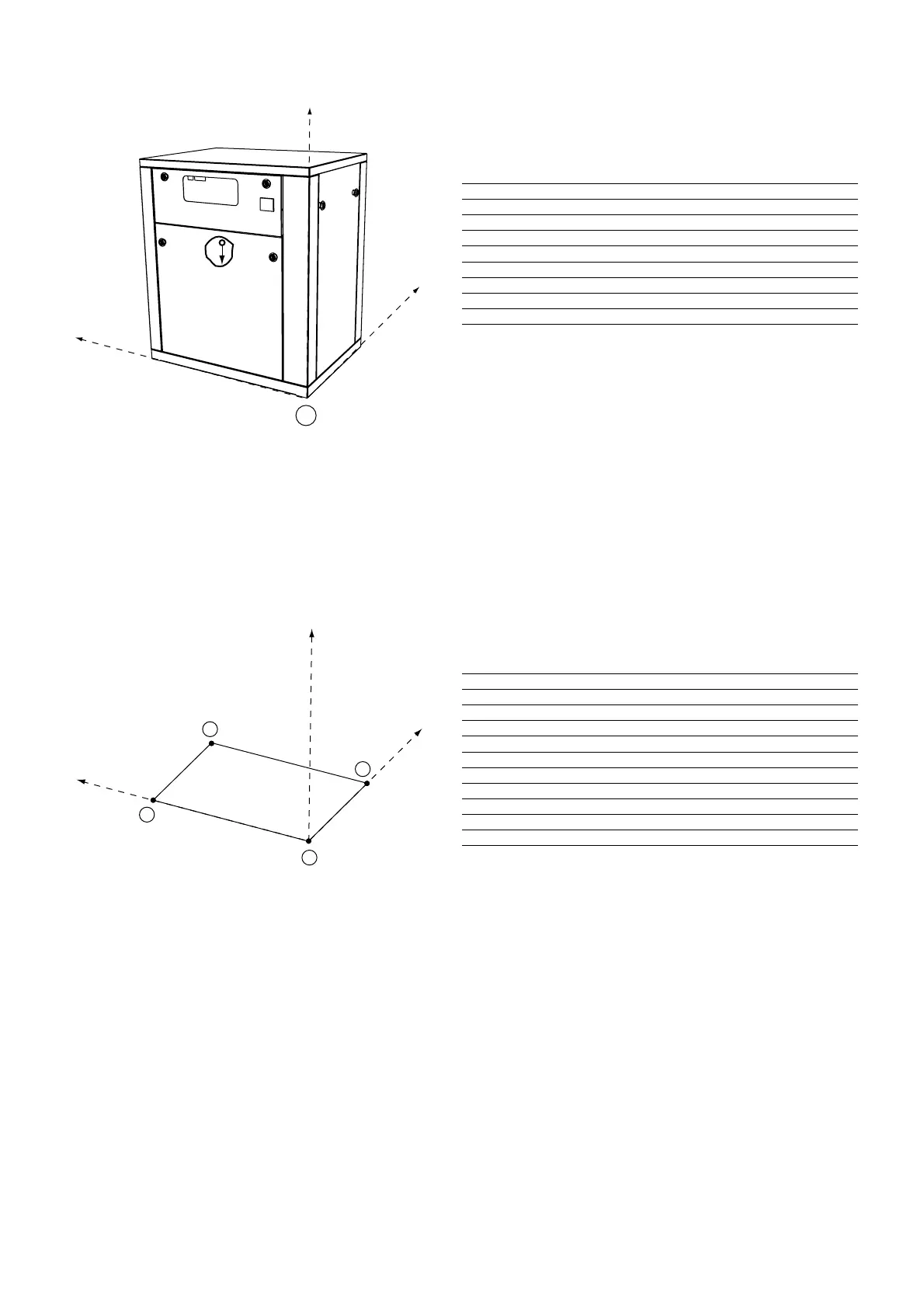

Centre of gravity (approx.)
30SZ 004 005 006 007 009 011 018 024 027 036
XG* mm 340 340 340 340 340 340 483 493 493 490
YG* mm 280 280 275 285 280 278 342 333 333 324
ZG* mm 359 364 369 373 377 380 442 467 467 473
30SZV 004 005 006 007 009 011 018 024 027 036
XG* mm 335 335 335 335 335 335 478 488 488 485
YG* mm 287 287 282 292 287 285 349 340 340 331
ZG* mm 349 354 359 363 367 370 432 457 457 463
* Measured from point A
All dimensions are in mm
Weight distribution (approx.)
30SZ 004 005 006 007 009 011 018 024 027 036
1 30 32 34 42 48 52 94 116 120 130
2 36 37 40 50 56 61 98 119 122 132
3 18 18 19 24 30 32 112 122 124 133
4 21 23 23 28 34 37 120 123 126 135
30SZV 004 005 006 007 009 011 018 024 027 036
1 24 25 26 33 39 43 76 94 94 96
2 33 34 36 47 52 56 92 112 115 124
3 17 17 18 22 26 28 106 115 117 125
4 20 22 22 27 33 35 116 120 122 130
The weights are given in kg
Control box
G
A
X
Y
Z
