23
WIRING DIAGRAMS
*
* C wire not needed for batteries
** Remove jumper when using split power (Indoor and Outdoor units
utilize separate transformers).
Y1
Y/Y2
W
G
Rh
Rc
C
C
G
R
R
W
Y
COM
Y
**
A12246

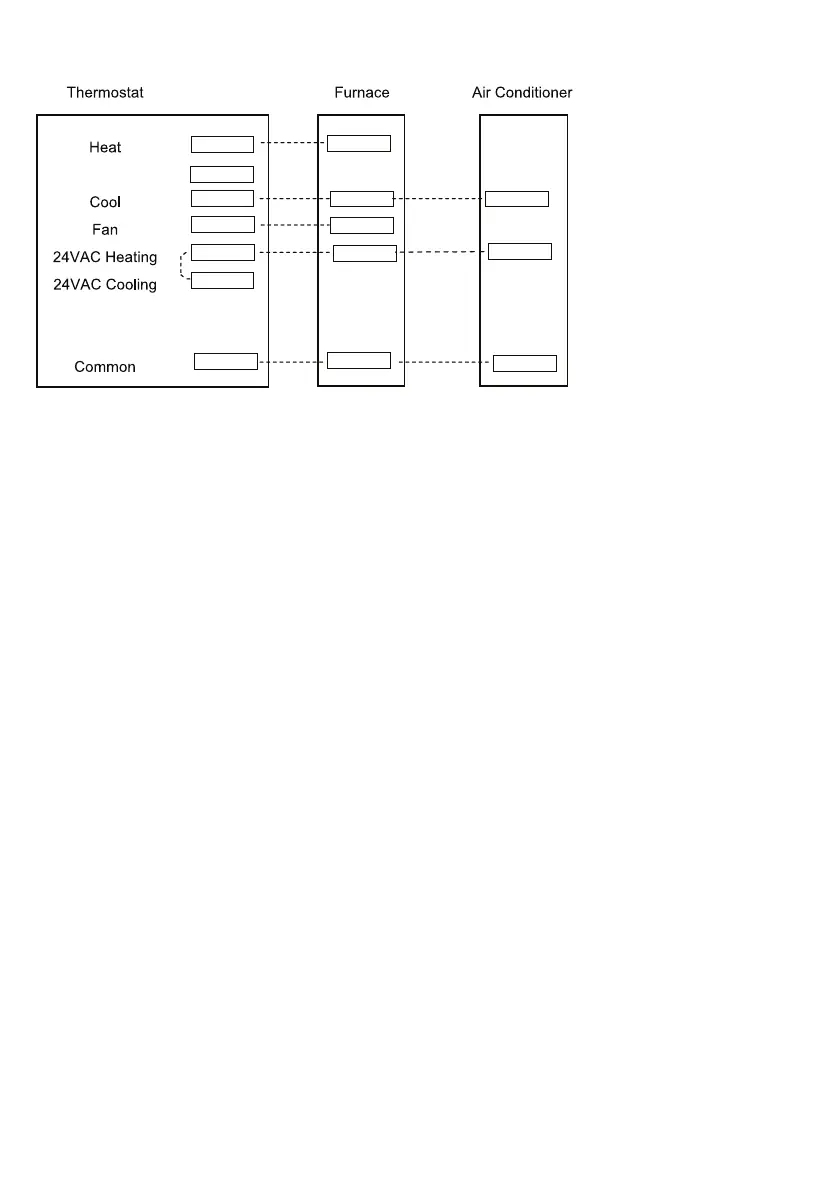

Fig. 1 - Single Speed A/C Thermostat Typical Installation
Equipment configuration: AC
