GOLD SERIES OVAL POOL | USER MANUAL
6
Patio block
Patio block
Patio block
Patio block
10′ (25)
Equal trench width
10′ (25)
Equal trench width
10′ (25)
Equal trench width
10′ (25)
Equal trench width
7′1″ (216)
Patio block
7′1″ (216)
Patio block
8′7″ (262)
Patio block
8′7″ (262)
Patio block
3′10″ (116)
3′10″ (116)
3′10″ (116)
3′10″ (116)
5′0″ (152)
5′2″ (158)
6′6″ (198)
6′6″ (198)
6′10″
(209)
15′11″
(485)
15′11″
(485)
15′11″
(485)
2′5″ (74)
2′5″ (74)
3′11″ (120)
3′11″ (120)
2′7″ (78)
2′7″ (78)
2′7″ (78)
2′7″ (78)
2′2″ (67)
Equal
2′2″ (67)
Equal
2′2″ (67)
Equal
2′2″ (67)
Equal
3-⅛″ (8 cm)
Deep
3-⅛″ (8 cm)
Deep
3-⅛″ (8 cm)
Deep
3-⅛″ (8 cm)
Deep
15x24
15x30
18x33
18x39

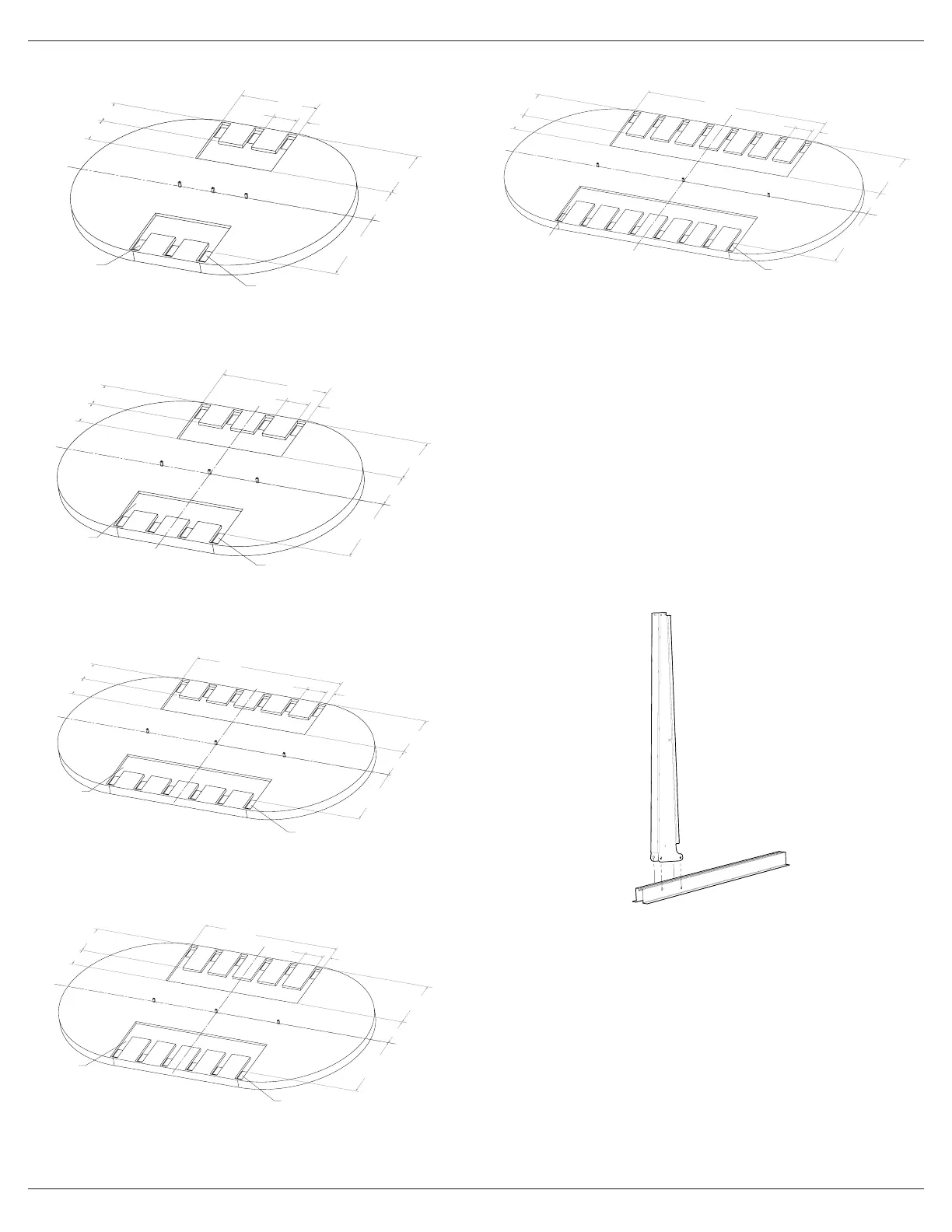

STEP 5.1 STEP 5.2
Patio block
10′ (25)
Equal trench width
7′1″ (216)
Patio block
3′10″ (116)
5′0″ (152)
6′10″
(209)
2′5″ (74)
2′7″ (78)
2′2″ (67)
Equal
3-⅛″ (8 cm)
Deep
15x21
UNPACKING THE POOL PARTS
Open all the boxes that were supplied with your pool. Layout on the ground all the
parts and make sure that you have all the parts listed in the BOM section at page
23. Make sure that you DO NOT start installation if any parts are missing. Contact
your seller if that is the case, he will provide the missing parts. Make sure to inspect
if there are any defects in the parts before installation. Do not untie and unroll the
pool wall before Assemble the round section rails, as it will be harder to install.
ASSEMBLING THE FOOTBEAM AND BUTTREST POSTS
For this assembly you will need the following parts ready (Qty shown for 1 post).
STEP 1
Assemble the buttrest (46025009) post on top of the footbeam (46025008) aligning
the holes.
