X1 TUBE PREAMP PEDAL
X1 TUBE PREAMP SPECIFICATIONS:
Preamp Tubes: Two 12AX7 (four stages)
Controls: MASTER, BASS, MID, TREBLE, PRESENCE, GRAPHIC EQ
Lead channel: VOLUME, DRIVE, GAIN switch
Rhythm channel: VOLUME, BRIGHT switch
Graphic EQ: 5-Band, channel tracking, footswitchable, backlight color indications
Audio connections: Input, Output, Loop Send, Loop Return, Cab Voiced Out/Phones, Speaker
Input Impedance: >500K Ohms
Effects loop: Fully buffered, footswitchable, pre-Master/Amp/Voiced Out
Cab Voiced/Phones: 3G (3rd generation) active analog circuit, 2x12” and 4x12” settings,
TS (mono) or TRS dual-mono (for stereo heaphones) low impedance capable
Speaker Output: 1 Watt @ 4 Ohms minimum
Footswitches (4): BYPASS(Master or Loop), GEQ, GAIN, CHANNEL
Bypass type (master): relay engaged hardwire bypass
DC adapter (included): Carvin model# AC12VDC1AU, 100-240VAC input, international plug set.
12VDC/1A voltage regulated output, 5.5mmOD/2.1mmID Center Positive.
Size: H x W x D 3.825” x 8.875” x 8.375” (97mm x 225mm x 213mm)
Weight (without adapter): 3.9 lb. (1.77 kg)
Warranty: One Year, 90 days on tubes
Congratulations on your purchase of the X1 tube preamp pedal. The
X1 is designed to give you real tube tone with the ability to integrate
into nearly any system. The X1 works as an add-in pedal to your current
setup, or it can be the center of your whole guitar rig for live or recording.
If you already have a favorite guitar amp, the X1 preamp can work as a
pedal in front of your amp with true hardwire bypass. It can feed a power
amp or a guitar amp return to power guitar speaker cabinets. If you don’t
have an amp at all, it can drive a regular guitar cabinet directly with 1
Watt of power. The Cab Voiced/Phones jack uses Carvin’s third generation
Cabinet Voicing circuit to give you the frequency response of a 2x12”
or 4x12” guitar speaker cabinet so you can just plug in headphones or
connnect to a recording or PA system without having to mic a speaker.
DESIGNED FOR MAKING CONNECTIONS
The design criteria for the X1 was to deliver the sounds of the classic
Carvin X-100B amplifier in a compact package with added connectivity.
The result is a full tube preamp in a pedal format, able to fit in a carry-on
or backpack. The X1 incorporates tube technology with simple, yet flexible
modern features to interface with many types of gear.
12AX7 TUBE STAGES
Tone generation and overdrive comes from 12AX7 tubes, utilizing tube
gain stages running at the same operating conditions as they do in a full
size tube amp.
GROUND CONTROL
The X1 has 4 top mounted footswitches for Channel, Gain, Graphic EQ
and Bypass. Switch from Rhythm to Lead with the CHANNEL switch, then
hit the GAIN footswitch to kick up the tube overdrive when you need it.
Kick in the Graphic EQ for a second set of tone on demand. Use the BYP-
LOOP footswitch to hard bypass the whole pedal, or to just turn off the
Effects Loop. The Graphic EQ’s backlighting shows different colors for
channel selection and EQ on so you always know what setting you’re on.
EXTENSIVE TONE CONTROL
The wide range BASS, MID, TREBLE, and PRESENCE tone controls are
the same circuits as used in the X-100B amplifier. The Rhythm channel’s
BRIGHT switch adds sparkling clear highs to clean tones. The powerful
5-band Graphic EQ can be set to activate for either or both channels, and
footswitched off/on.
NO SPEAKERS?
The Phones jack uses Carvin’s 3G (third generation) analog Cabinet
Voicing circuit to emulate the response of a 2x12” or 4x12” guitar speaker
cabinet. Connect headphones for “silent” practice, or feed to any combi-
nation of effects, recording inputs or live gear to capture real tube tones
without micing speakers.
NO AMP?
A 1 watt amp is built in, capable of driving any standard guitar cabinet.
1 Watt is louder than you might think! Of course it’s not enough for every
situation, but it’s great when you don’t want to carry an amp or when you
just want to practice.
76-22111A 081517
For your records, you may wish to record the following information.
Serial No._______________________ Invoice Date__________________
RECEIVING INSPECTION—read before getting started
INSPECT YOUR AMP FOR DAMAGE which may have occurred during shipping. If damage is
found, please notify the shipping company and CARVIN immediately.
SAVE THE CARTON & ALL PACKING MATERIALS. In the event you have to re-ship your unit,
always use the original carton and packing material. This will provide the best possible protec-
tion during shipment. CARVIN and the shipping company are not liable for any damage caused
by improper packing.
SHIPMENT SHORTAGE. If you find items missing, they may have been shipped separately.
Please allow several days for the rest of your order to arrive before inquiring.
RECORD the SERIAL NUMBER and INVOICE DATE on the enclosed warranty card and
below on this manual for your records. Keep your portion of the card and return the portion
with your name and comments to us.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL!
THIS UNIT CONTAINS HIGH VOLTAGE INSIDE!
CAUTION
RISK OF ELECTRIC SHOCK
EXAMPLE SETUPS
IMPORTANT! FOR YOUR PROTECTION, PLEASE READ THE FOLLOWING:
WATER AND MOISTURE: Appliance should not be used near water (near a bathtub, washbowl,
kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc). Care should be taken
so that objects do not fall and liquids are not spilled into the enclosure through openings.
POWER SOURCES: The appliance should be connected to a power supply only of the type
described in the operating instructions or as marked on the unit.
GROUNDING OR POLARIZATION: Precautions should be taken so that the grounding or
polarization means of an appliance is not defeated.
POWER CORD PROTECTION: Power supply cords should be routed so that they are not likely
to be walked on or pinched by items placed upon or against them, paying particular attention
to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
SERVICING: The user should not attempt to service the unit beyond that described in the
operating instructions. All other servicing should be referred to qualified service personnel.
FUSING: If your unit is equipped with a fuse receptacle, replace only with the same type fuse.
Refer to replacement text on the unit for correct fuse type.
This symbol is intended to alert
the user to the presence of unin-
sulated “dangerous voltage”
within the product’s enclosure
that may be of sufficient mag-
nitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert
the user to the presence of
important operating and main-
tenance (servicing) instructions
in the literature accompanying
the appliance.
LIMITED WARRANTY
Your Carvin preamp is guaranteed against failure for ONE YEAR (USA) unless otherwise stated.
Vacuum tubes are guaranteed for 90 days. Carvin will service and supply all parts at no charge
to the customer providing the unit is under warranty. Shipping costs are the responsibility of the
customer. CARVIN DOES NOT PAY FOR PARTS OR SERVICING OTHER THAN OUR OWN.
A COPY OF THE ORIGINAL INVOICE IS REQUIRED TO VERIFY YOUR WARRANTY. Carvin
assumes no responsibility for horn drivers or speakers damaged by this unit. This warranty does
not cover, and no liability is assumed, for damage due to: natural disasters, accidents, abuse, loss
of parts, lack of reasonable care, incorrect use, or failure to follow instructions. This warranty is
in lieu of all other warranties, expressed or implied. No representative or person is authorized to
represent or assume for Carvin any liability in connection with the sale or servicing of Carvin prod-
ucts. CARVIN SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
MAINTAINING YOUR EQUIPMENT
The outer surface of your unit can be wiped with a dry or slightly damp cloth in order to remove
dust and bring back the new look. Avoid spilling liquids or allowing any other foreign matter inside
the unit. As with all pro gear, avoid prolonged use in caustic environments (salt air). When used
in such an environment, be sure the equipment is adequately protected.
SERVICE:
In the USA: email: service@carvin.com, or visit our website: www.carvinaudio.com and under
“SUPPORT” click on “REPAIR INFORMATION”
Outside the USA: contact your dealer, or go to http://www.carvinaudio.com click on “DEALERS”
for your nearest service center.
Include a written description of the problem with serial number and date of purchase.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
16262 WEST BERNARDO DR. SAN DIEGO, CA 92127
800-854-2235 CARVINAUDIO.COM
BUILT IN THE
USA
USER MANUAL
The X1 works as an add-in pedal to your current setup, or it can be the center of your whole guitar rig for live
or recording. Feed a guitar amp input, or just use your amp’s power section. Drive a guitar cabinet from the
X1 SPECIFICATIONS:
» Preamp Tubes: Two 12AX7 (four stages)
» Controls: MASTER, BASS, MID, TREBLE, PRESENCE,
GRAPHIC EQ
» Lead channel: VOLUME, DRIVE, GAIN switch
» Rhythm channel: VOLUME, BRIGHT switch
» Graphic EQ: 5-Band, channel tracking, foot
switchable, backlight color indications
» Audio connections: Input, Output, Loop Send, Loop
Return, Cab Voiced Out/Phones, Speaker
» Input Impedance: >500K Ohms
» Effects loop: Fully buffered, footswitchable,
pre-Master/Amp/Voiced Out. SEND level +4dBu
» Cab Voiced/Phones: 3G (3rd generation) active
analog circuit, 2x12” and 4x12” settings,
» TS (mono) or TRS dual-mono (for stereo headphones)
low impedance capable
» Speaker Output: 1 Watt @ 4 Ohms minimum
» Footswitches (4): BYPASS(Master or Loop), GEQ,
GAIN, CHANNEL
» Bypass type (master): relay engaged hardwire bypass
» DC adapter (included): , 100-240VAC input,
international plug set.. 12VDC/1A voltage regulated
output, 5.5mmOD/2.1mmID Center Positive
» Size: H x W x D 3.825” x 8.875” x 8.375” (97mm x
225mm x 213mm)
» Weight (without adapter): 3.9 lb. (1.77 kg)

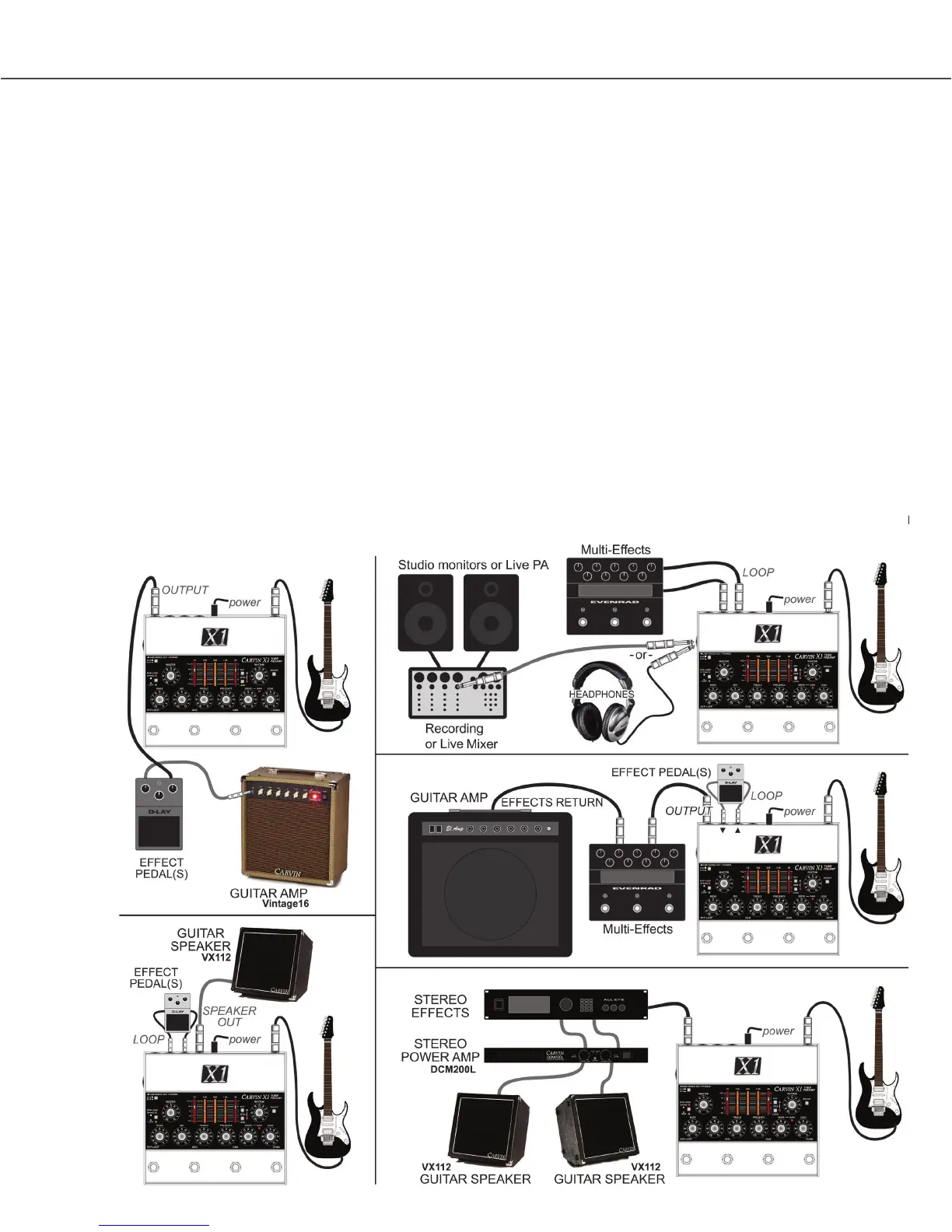

EXAMPLE SETUPS
The X1 works as an add-in pedal to your current setup,
or it can be the center of your whole guitar rig for live
or recording. Feed a guitar amp input, or just use your
amp’s power section. Drive a guitar cabinet from the
built-in 1 Watt amp. Carvin Amp’s analog Cabinet
Voicing out emulates a guitar cabinet response for
headphones, recording or live gear.
To Next Page
