Cascade 65K - Component Installation

2
FP0783.eps
3 Install the solenoid valve to the bracket. Tighten the
capscrews to a torque of 4 ft.-lbs. (5 Nm).
FP0958.eps
1
4
Component Installation

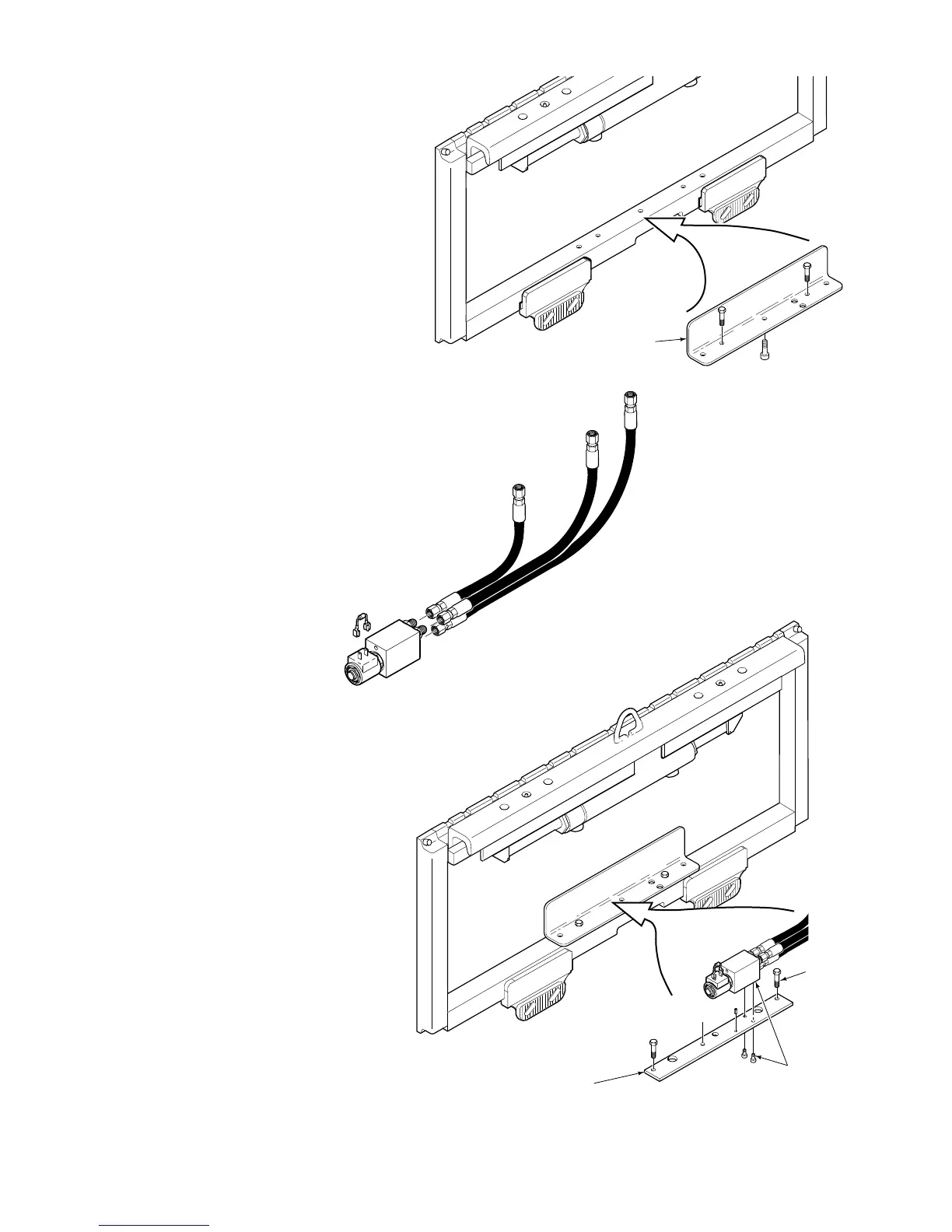

1 Mount the guard to the sideshifter lower carriage bar.
Tighten the capscrews to a torque of 25 ft.-lbs. (35 Nm).
FP0959.eps
2 Install the hoses to the valve fittings with the hose length
orientation shown. Tighten the hose ends with the natural
bend of the hoses upward. Install the diode to the solenoid
coil.
4 Install the bracket to the guard. Tighten the capscrews to
a torque of 25 ft.-lbs. (35 Nm).
3
4
