Cascade C Series Installation Instructions

219990 Rev. 0 5
9

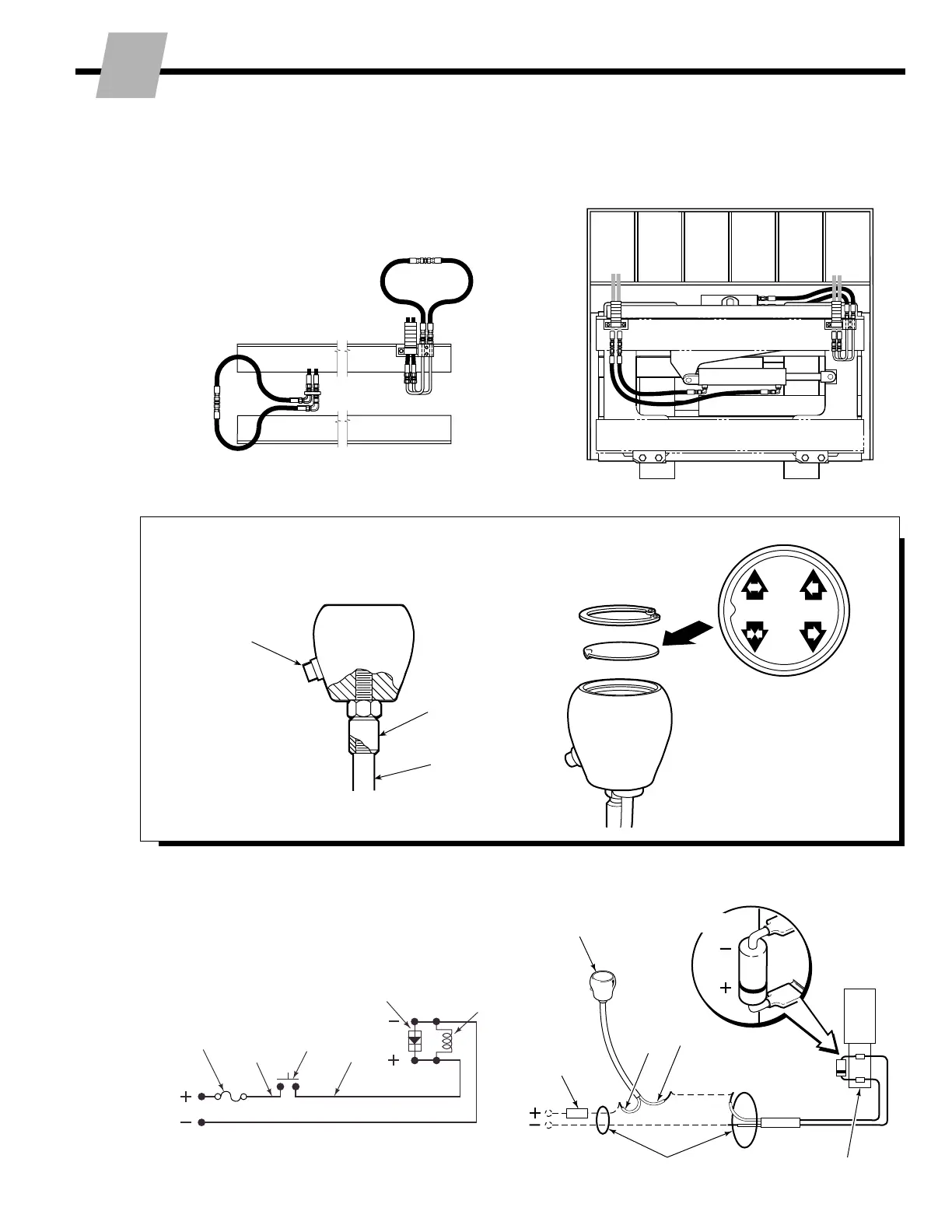

Install wiring –
(Solenoid equipped units)
PRESS
BUTTON
TO POSITION
SIDESHIFT
CL0240.ill
Button
toward
driver
Truck control
valve handle
Adapter
8
Install solenoid control knob –
(Solenoid equipped units)
CL0258.ill
CL0257.ill
Solenoid Coil
User-supplied wire
7.5-Amp
Fuse
White
Black
7.5-Amp
Fuse
White Black
Solenoid Coil
Diode
Diode
Knob
Button
Control Lever Knob
7
Connect hoses prepared in
Step 5 to Attachment fittings
I
NSTALLATION
FP0214.ill
6
Flush hydraulic supply hoses
A
Install hoses to hose terminals on
carriage. Connect using union fittings.
B Operate auxiliary valves for 30 sec.
C Remove union fittings.
GA0092.ill
