Cascade H Series User Manual

INSTALLATION
10
6095756-R2 EN

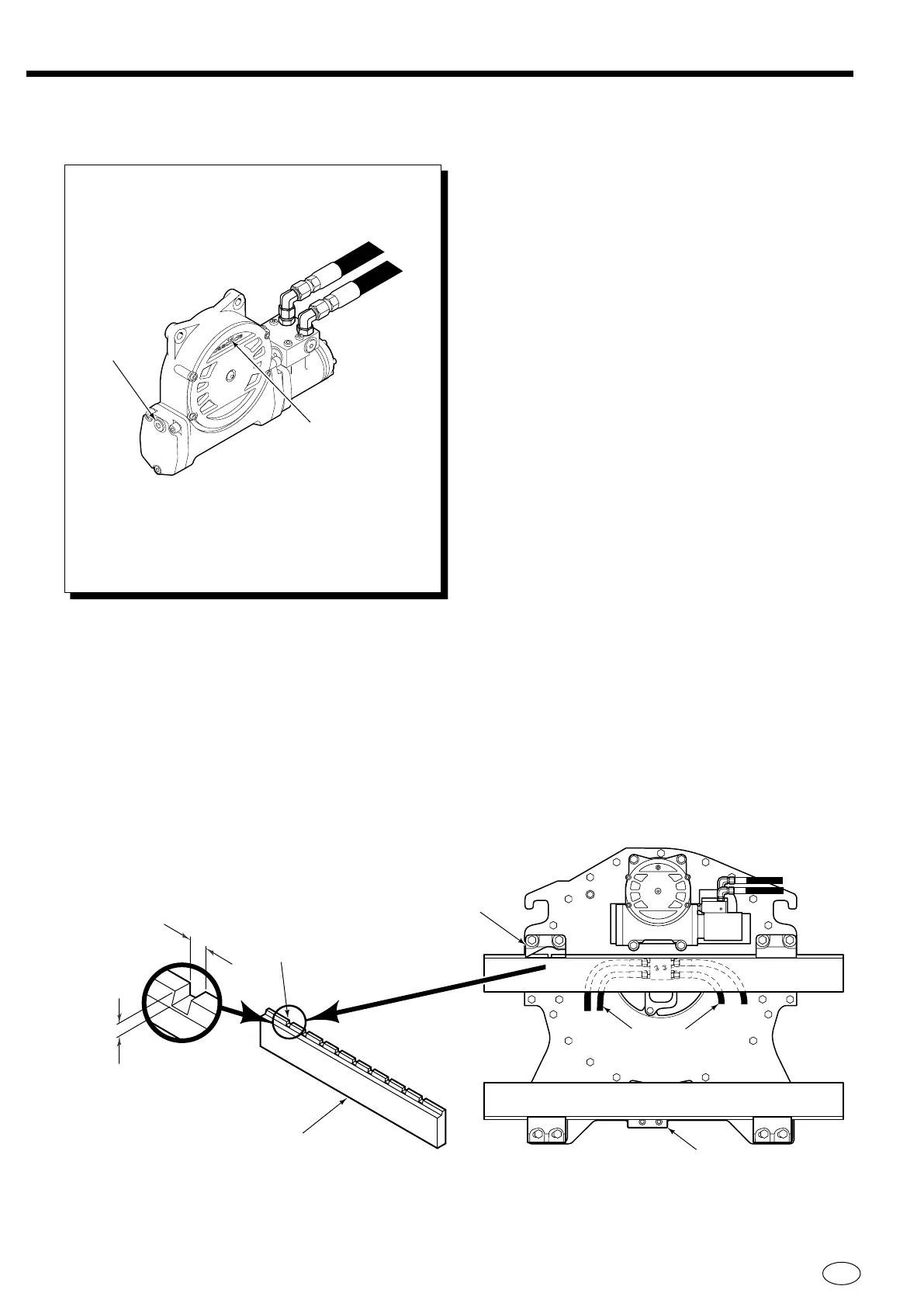

5
Check lubricant level and
remove rubber vent cover
RC0139.eps
Level must
be up to fill
plug hole
Remove rubber
vent cover
If necessary, fill gearbox with Cascade Gear
Lube 656300 or equivaent SAE 90 wt. gear lube
(AGMA 'mild' 6EP Gear Oil).
RC3757.eps
6
Mount attachment on truck carriage
A
Center truck behind attachment.
B Tilt forward and raise carriage into position.
C Engage top mounting hooks with carriage.
Make sure left hook engages closest notch on
top carriage bar
D Lift attachment 5 cm off pallet.
GA0079.eps
Class II – 15-17 mm
Class III – 18-20 mm
Class IV – 18-20 mm
Class II – 8-9 mm
Class III – 10-11 mm
Class IV – 12-13 mm
Carriage Bar
and Upper
Mounting Hook
Center Spacer
Engage locator
tab in notch
Upper
Carriage Bar
Notch
Connect hoses to
end block before
attachment installation
Attachment Installation
