Cascade H Series User Manual

INSTALLATION
12
6095756-R2 EN
Attachment Installation
9

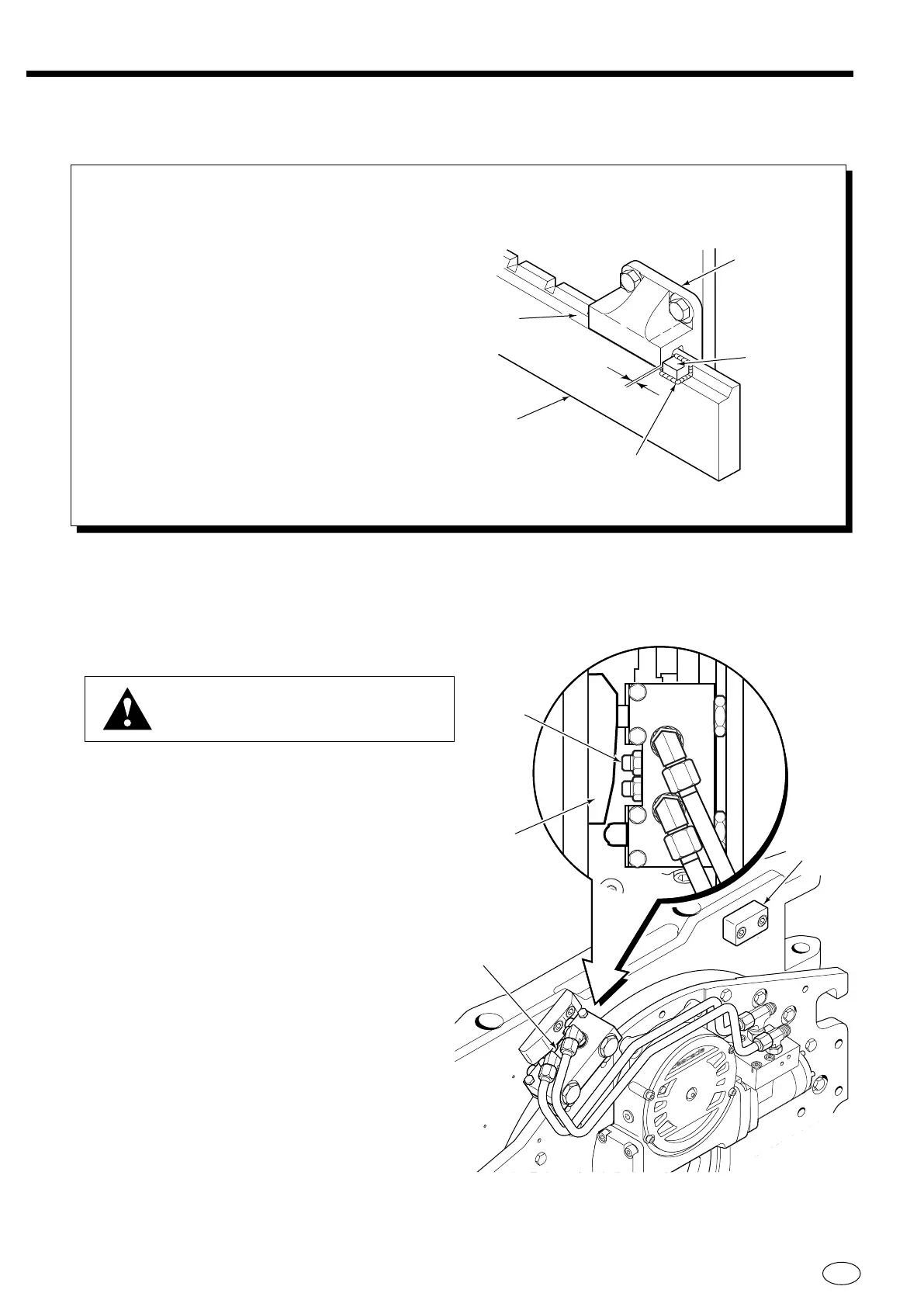

Install stop block kit
• Preheat each stop block and carriage bar weld
area to 180° C.
• Use AWS E-7018 low hydrogen rod and weld a
6 mm fillet full length on three side of each stop
block.
RC0224.eps
RH Upper
Mounting Hook
Steel Stop
Blocks
(both sides)
6 mm fillet
weld on three
sides
Truck Upper
Carriage Bar
NOTE: Do not weld
stop block on inside
1.5 mm
10
180° Stop Valve Adjustment
(if equipped/required)
WARNING: Make sure all personnel are
clear of attachment during adjustment.
A Loosen the jam nut on the stop valve adjustment
screws and turn the screws OUT (counterclockwise)
until a groove marking the maximum-out position
is visible. Adjustment screws should be adjusted
equally.
IMPORTANT: Backing the adjustment screws out
past the groove will cause hydraulic leakage.
B Using a load that: A) is the heaviest to be lifted,
or B) requires maximum motor torque, rotate the
attachment back and forth to the stops at full
speed for 1–2 minutes before making adjustments.
Observe whether the attachment fully completes its
rotation slowly into the hard stop.
C If rotation does not continue into the hard stop,
rotate the stop valve off the ramp and turn the
adjustment screw IN (clockwise) one-eighth turn.
Test for complete rotation slowly into the hard stop.
D Repeat Step C until the attachment fully completes
its rotation slowly into the hard stop. Tighten the jam
nut on the adjustment screw.
E Check the torque on the stop block capscrews and
tighten to 110 Nm if necessary.
RC2845.eps
A
C
E
Adjustment
Screw and
Jam Nut
Stop
Block
Ramp
180°
Stop
Valve
