LOAD TROUBLESHOOTING
CL2505.eps
CANNED / BOTTLED / DENSE CASE GOODS Neutral to positive
SOFT CASE GOODS Neutral to Negative
APPLIANCE / LARGE CASE GOODS Neutral to Negative
UNKNOWN LOADS
Start with neutral, look for
creases and adjust camber
as required.
IF LOWER TIER OF LOAD IS
CREASED:
Re-clamp load
so bottom edge
is even with
bottom of pads
Check for bent
pads, straighten
or replace
Check
hydraulics for
high supply
pressure
Add or increase
negative camber
(Contact Cascade
Service)
Re-clamp load
squarely
between pads
1
2
3
4
5

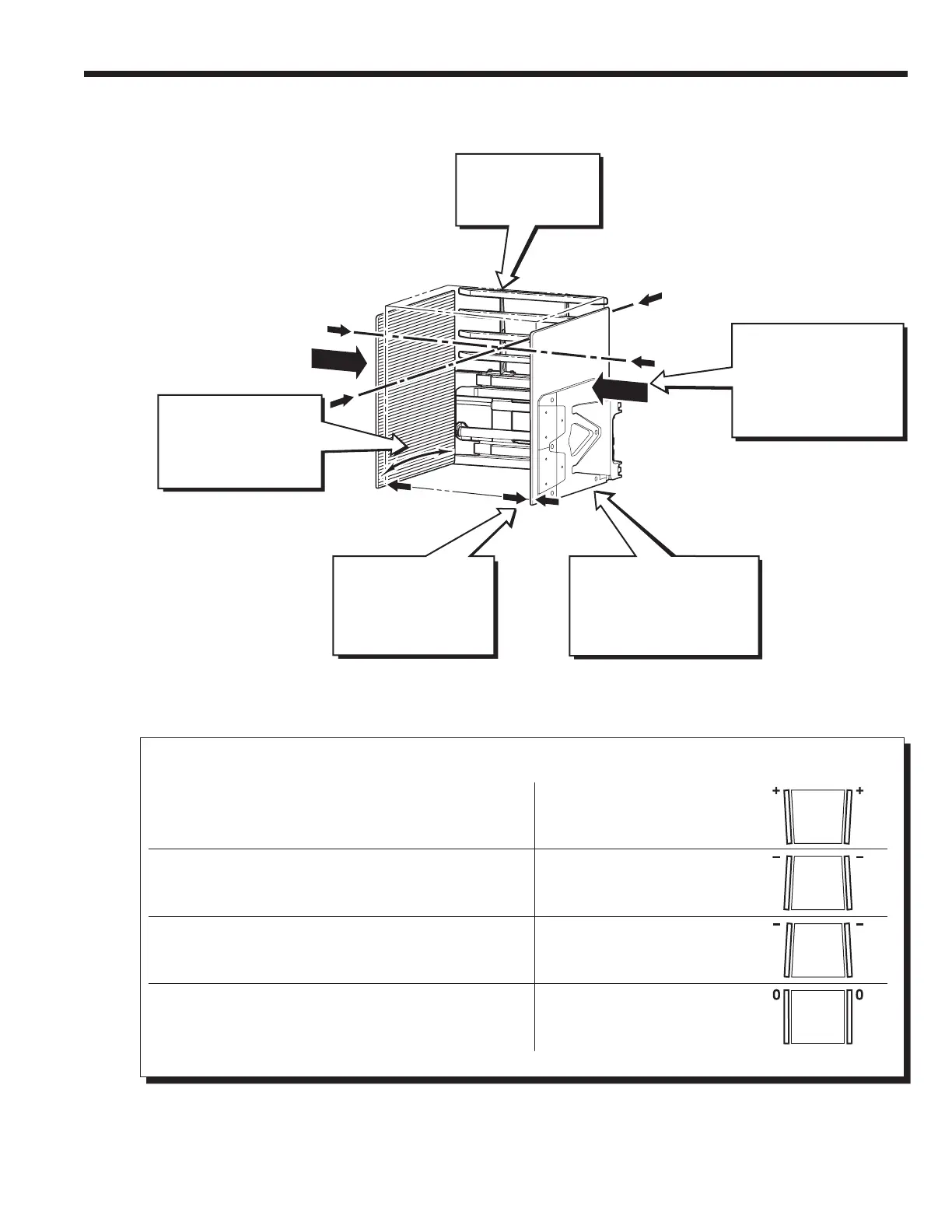

TYPICAL PAD CAMBER FOR HANDLING CARTON CASE LOADS
