Cascade J Series User Manual

6871082-R2i
RECOMMENDED HYDRAULIC SUPPLY
CONTENTS
GA0033.eps
This manual provides instructions for installing Cascade
J-Series Carton Clamps.
Follow the suggested installation procedures for best
results. If you have any questions or need more
information, contact your nearest Cascade Service
Department for assistance. Refer to back cover.
Read the WARNING Statements placed throughout
this Manual to emphasize safety during attachment
installation.
IMPORTANT: Field alterations may impair performance
or capability and could result in loss of warranty.
Consult Cascade for any required modifications.
Recommended Hydraulic Supply i
Truck Requirements
Standard Carton Clamp &
White Good Clamps 1
Tipping Carton Clamp 2
Installation 3
Load Troubleshooting 12
Adjusting Pad Camber
Standard (Shimmed) Design 14
Flexible (Adjusta-Block) Design 16
Periodic Maintenance
General 18
Attachments with External Sideshift 20
Tipping Attachments 21

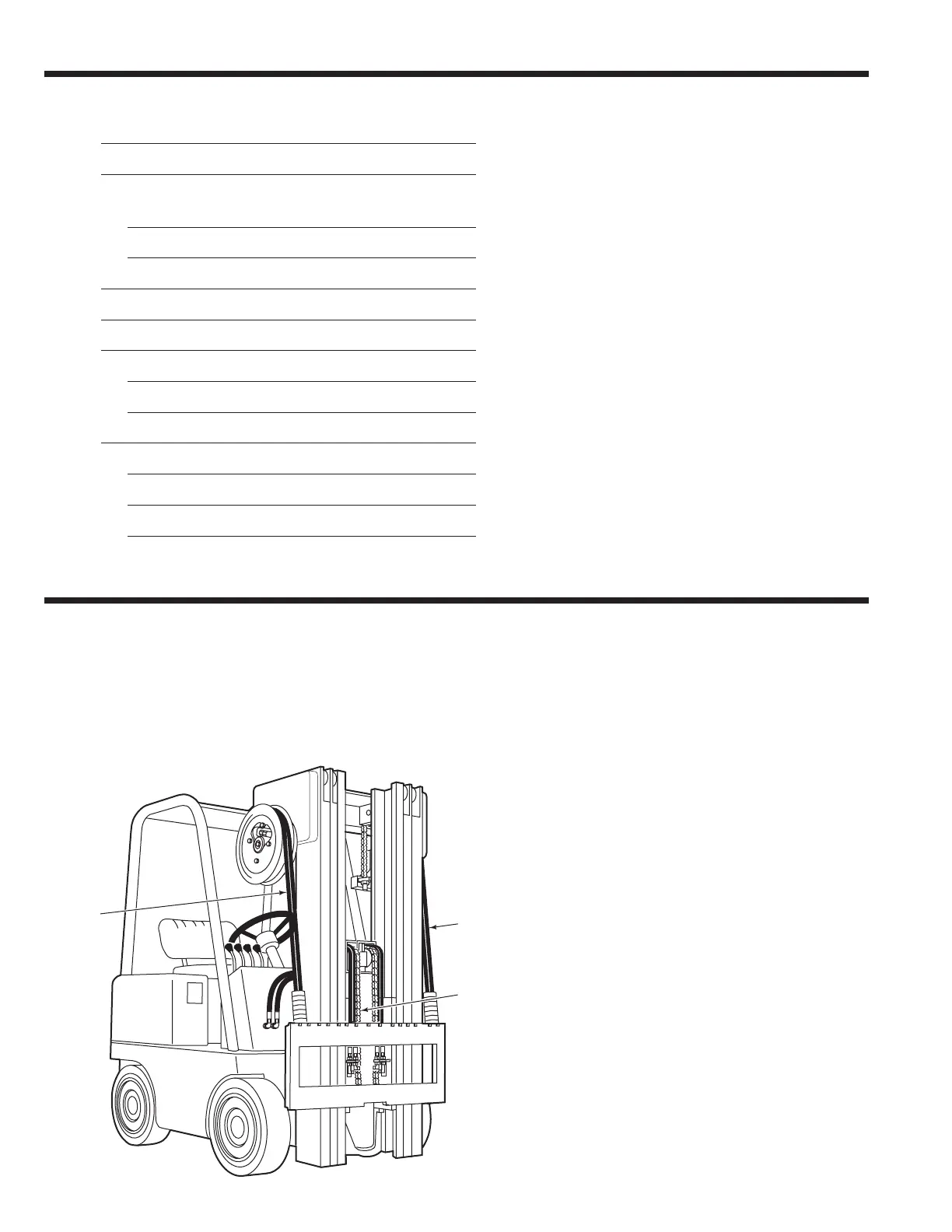

J-Series Clamps provide the best performance with one of the hydraulic
supply arrangements shown below. Refer to Cascade Hose & Cable Reel
Selection Guide, Part No. 212199, to select the correct hose reel for the
mast and truck. The hose and fitting requirements are:
• All hoses and fittings for CLAMP and SIDESHIFT functions should be at
least No. 6 (M8) with a minimum internal diameter of 0.28 in. (7 mm).
Non-Sideshifting
A or B
RH or LH THINLINE™ 2-port Hose Reel Group.
OR
C Mast single internal hose reeving group.
Sideshifting
A and B
RH and LH THINLINE
™
2-port Hose Reel Groups.
OR
C Mast double internal hose reeving group.
Sideshifting with Solenoid
A 6-N-1 Cable/Hose Reel group.
OR
A and C
Cable Reel and single internal hose reeving group.
B
A
C
