CHAPTER 1 - GENERAL INFORMATION
1-3
S2PV00033ZE01 NA Issued 11-08 Bur
MACHINE COMPONENTS
BS07M601

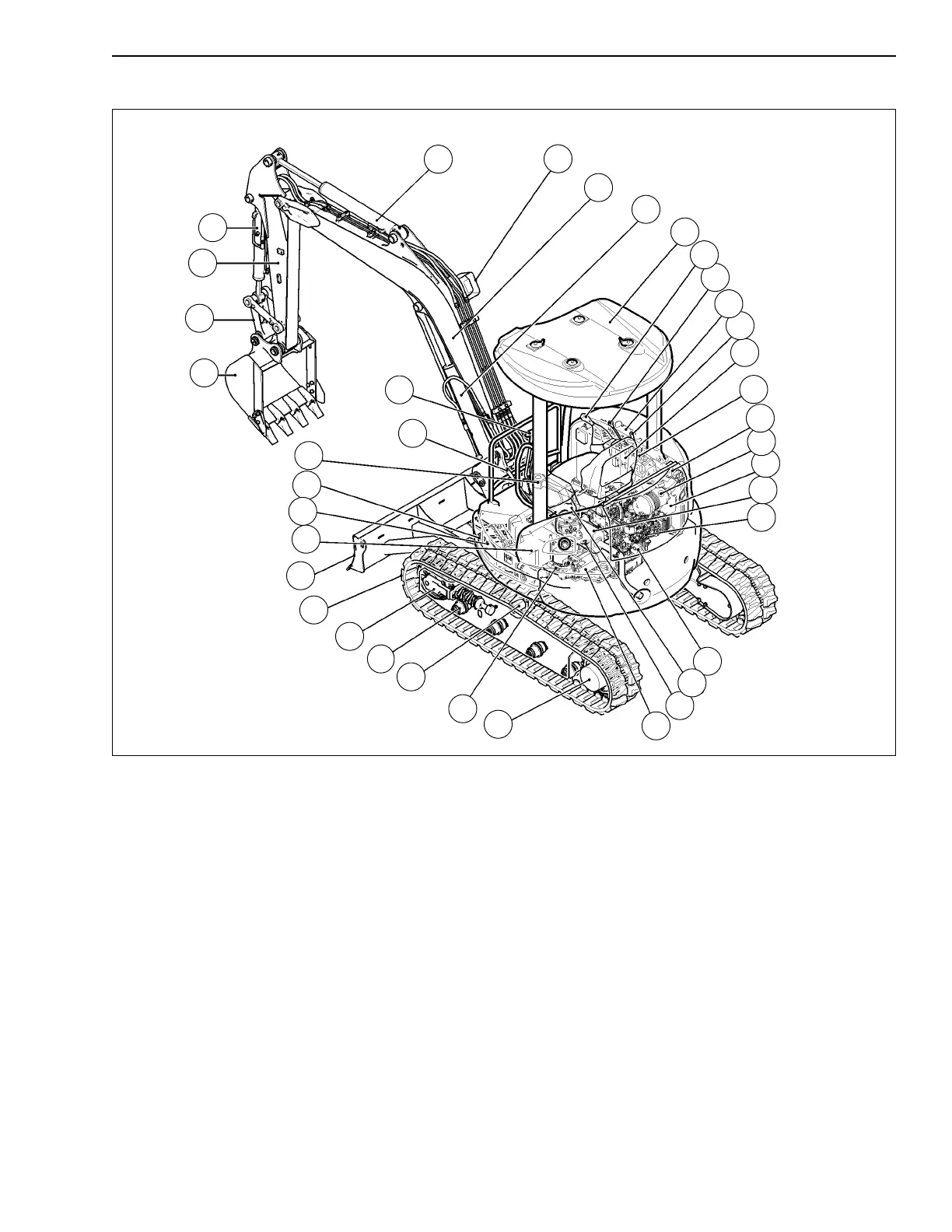

Figure 2
MACHINE COMPONENTS
1. MITSUBISHI ENGINE 11. SWING CYLINDER 21. SWIVEL JOINT 31. BOOM CYLINDER
2. OIL FILTER 12. CONTROL VALVE 22. TRAVEL MOTOR 32. ARM CYLINDER
3. RADIATOR 13. TRAVEL LEVER 23. SWING BEARING 33. WORK LAMP
4. RESERVOIR TANK 14. SAFETY LOCK LEVER 24. IDLER ASSEMBLY 34. ARM
5. AIR CLEANER 15. CANOPY 25. LOWER ROLLER 35. LINK
6. MUFFLER 16. CONTROL LEVER 26. UPPER ROLLER 36. BUCKET CYLINDER
7. FUEL TANK 17. DOZER CONTROL LEVER 27. RUBBER CRAWLER BELT 37. BUCKET
8. HYDRAULIC TANK 18. THROTTLE LEVER 28. DOZER BLADE
9. HYDRAULIC PUMP 19. MONITOR PANEL 29. DOZER CYLINDER
10. SWING MOTOR 20. BATTERY 30. BOOM
32
30
33
31
15
1
6
4
5
19
3
12
18
8
17
16
36
34
35
13
14
11
29
7
28
27
24
25
26
23
22
9
21
2
10
37
20
