Engine-Engineandcrankcase

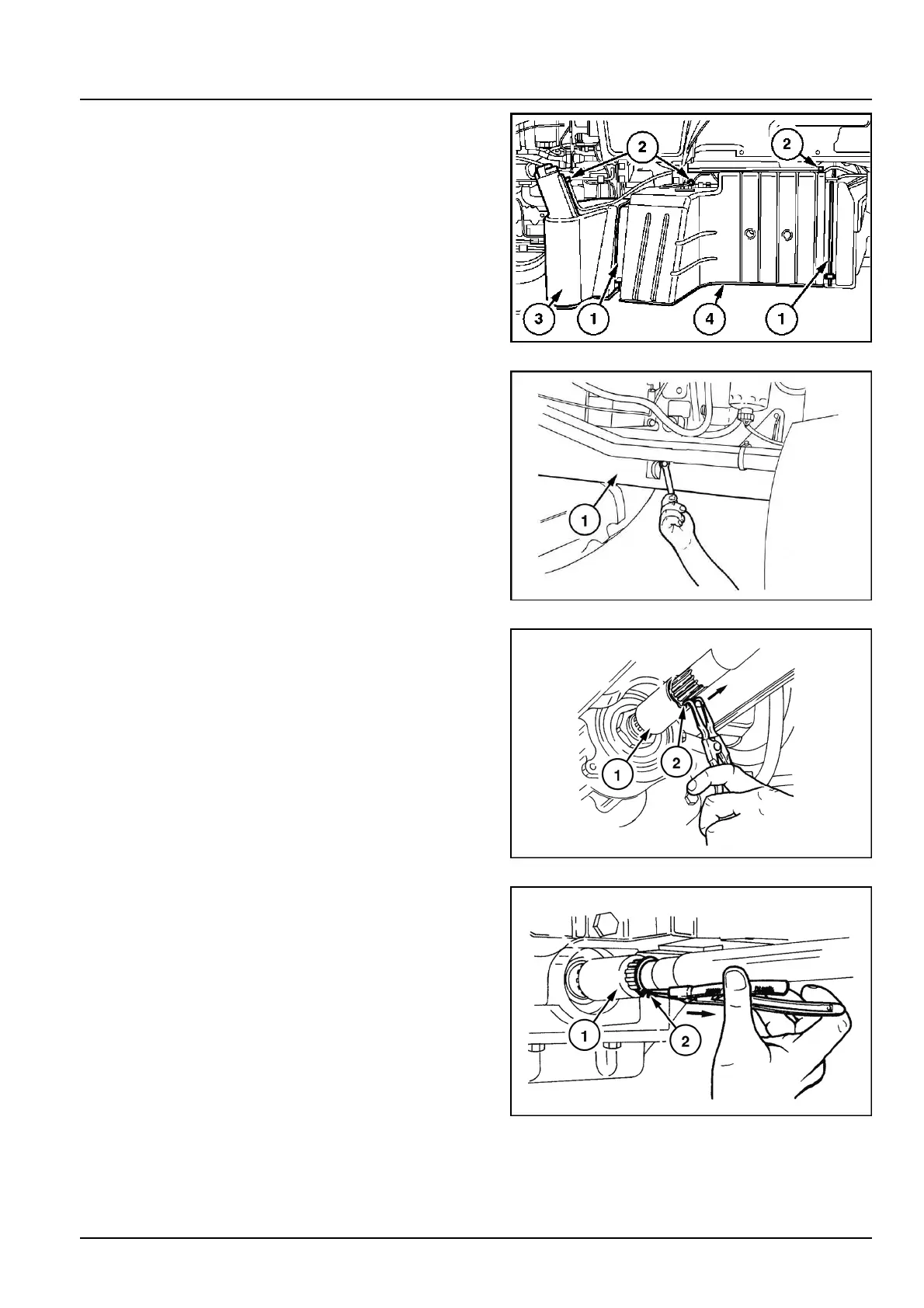

10.Detachthetankretainingstraps(1),markandde-
tachthefuelpipes(2)andextractthefueltank(3).
Removealsothebottomtankguard(4)
WLAPL4S10C111A9
11.Unscrewthefrontcentralandrearretainingboltson
thefrontaxleshaftguard,thenremovetheguard(1).
WLAPL4S10C112AA10
12.Removethecirclip(2)andmovethefrontsleeve(1)
inthedirectionindicatedbythearrowuntilitisre-
leasedfromthegrooveonthefrontaxle.
WLAPL4S10C113AA11
13.Removethecirclip(2)retainingthecouplingsleeve
ofthepropellershaft(1)ontheback,movethe
sleeveontheshaft.
WLAPL4S10C114AA12
4753161807/05/2013
10.1[10.001]/7
