Engine-Engineandcrankcase

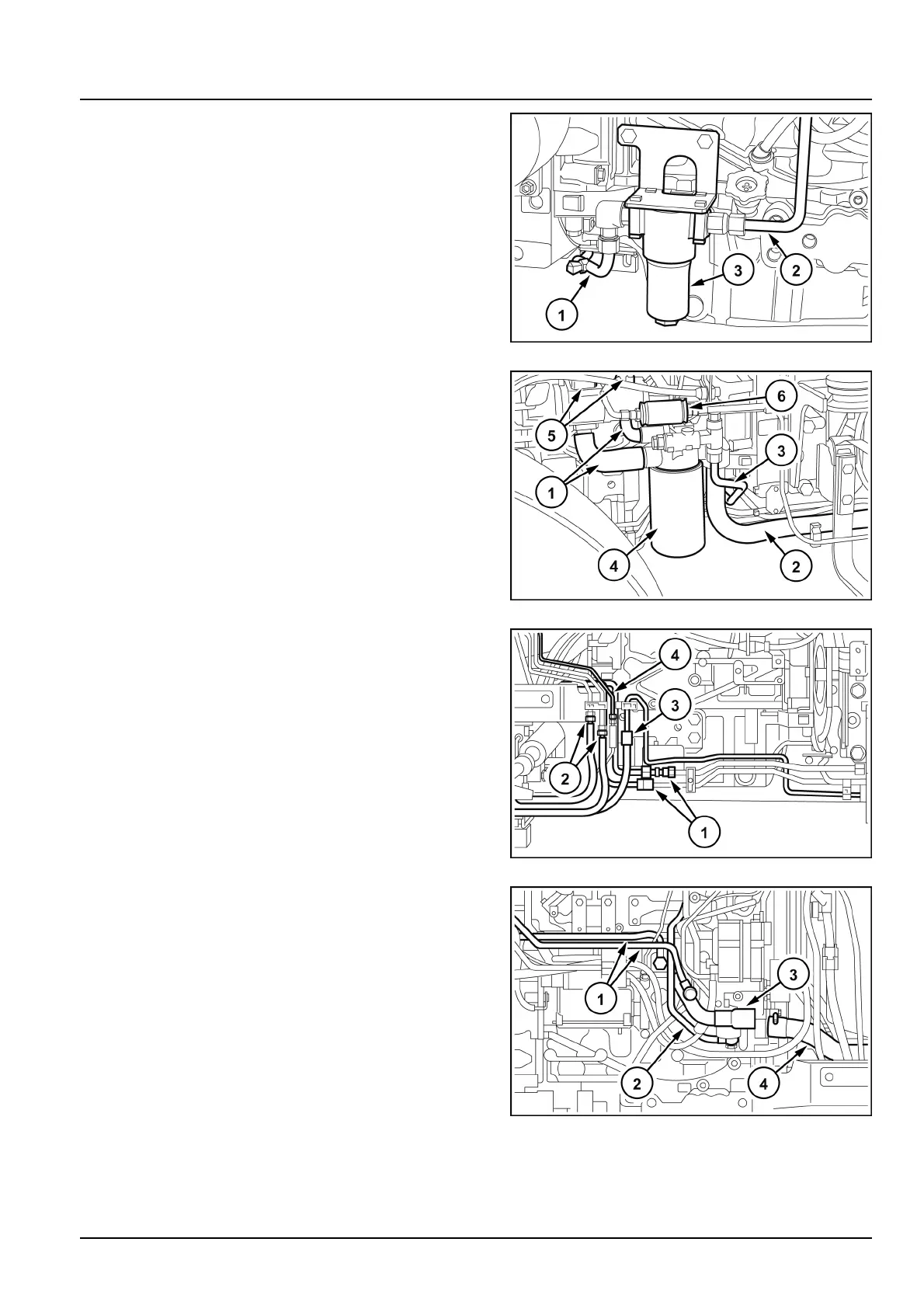

24.Detachthepowersteeringspoolvalveoutletpipeon
thegearboxspoolvalve(2),onthesamelterdetach
thegearboxspoolvalvesupplypipe(1).
Subsequentlyremovetheltertogetherwiththesup-
port(3).
WLAPL4S10C126A24
25.Disconnecttheintakepipesfromthepump(1)onthe
pumpitself,theoillterintakepipefromthetrans-
mission(2),onthejunctionunderthetransmission,
attheheightofthecabsupport.
Disconnectthedeliverylinetothelift(3)againatthe
heightofthepipe(2).
Detachthedeliverypipes(5)totheliftandtothe
powersteeringanti-cavitationtank(6)onthepump.
26.Detachtheunittogetherwiththelter(4),tank(6),
supportandthepartsofpipingdisconnectedprevi-
ously.
27.Detachthehighpressure-powersteeringpumpunit.
WLAPL4S10C127A25
28.Detachthepipesofthecooler(1),differentiallock(3)
and,ifapplicable,frontbrakingassembly(4).
29.Freethepipespreviouslydetachedfromthesup-
ports,bracketsandclampssecuredtotheengine,
dothesamethingalsoforthepipesdirectedtothe
steeringsystemcylinder(2).
WLAPL4S10C128A26
30.Ontheright-handside,detachthecabheatingpipes,
(1),thepipeinsertedontheenginesleeve.(3)com-
ingfromtheexpansiontank,then,loosentheclamps
and,ontheengine,detachthelower(4)andupper
rubbersleevesjoiningradiator-engine.
WLAPL4S10C134A27
4753161807/05/2013
10.1[10.001]/11
