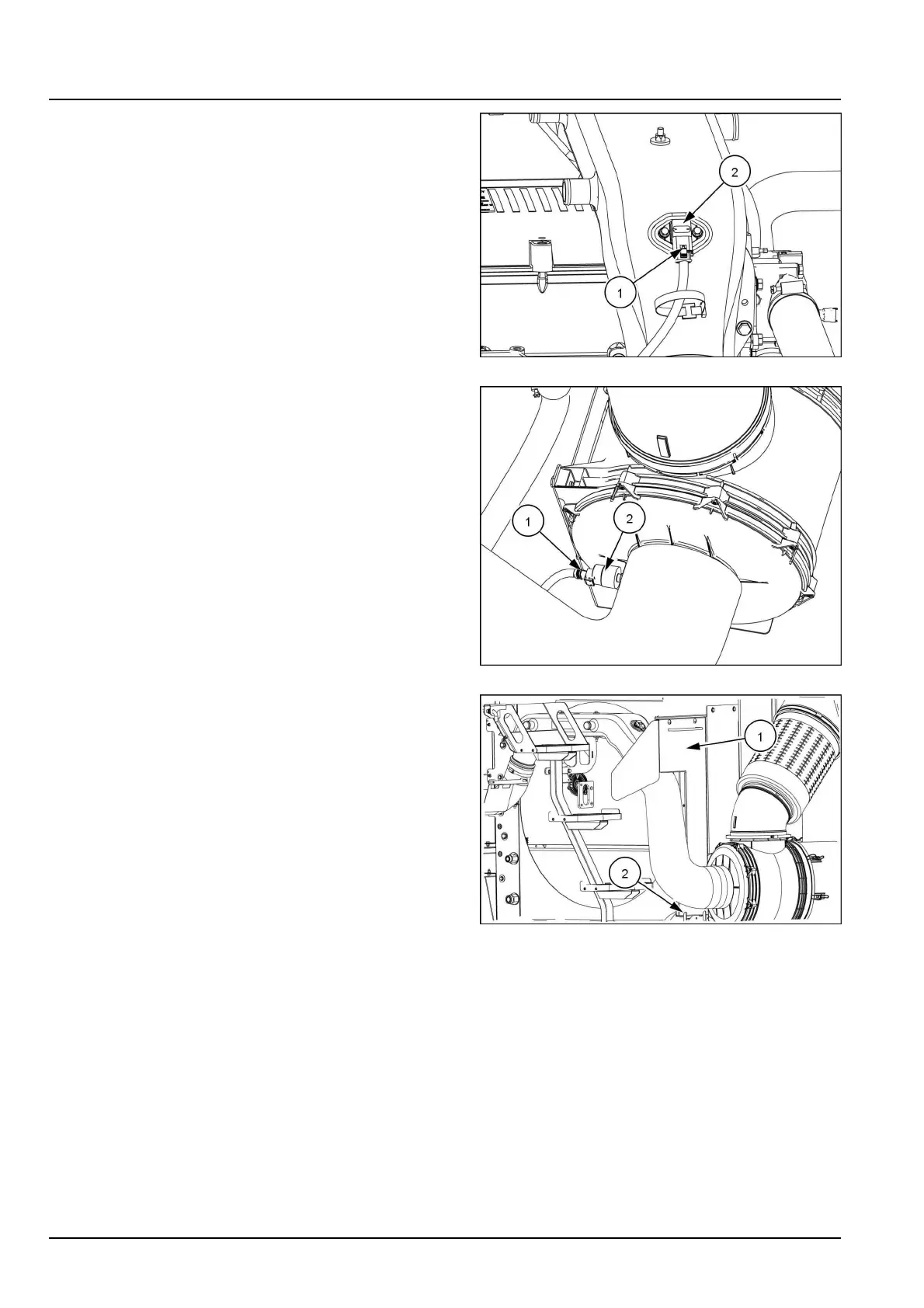

Engine-Aircleanersandlines
8.Installtheconnector(1)totherestrictionsensor(2)on
theairintaketube.
NHPE13AF00542AA8
9.Installtheharnessconnector(1)tothepressureswitch
(2)ontheairlterhousing.
NHPE13AF00543AA9
10.Settheendshield(1)intotheplatformbracket(2)and
pushthetopoftheshieldintothestudballsonhood
frametosecuretheshield.
NHPE13AF00440AA10
4804083715/08/2017
10.1[10.202]/8
