INTRODUCTION
Brokenpin

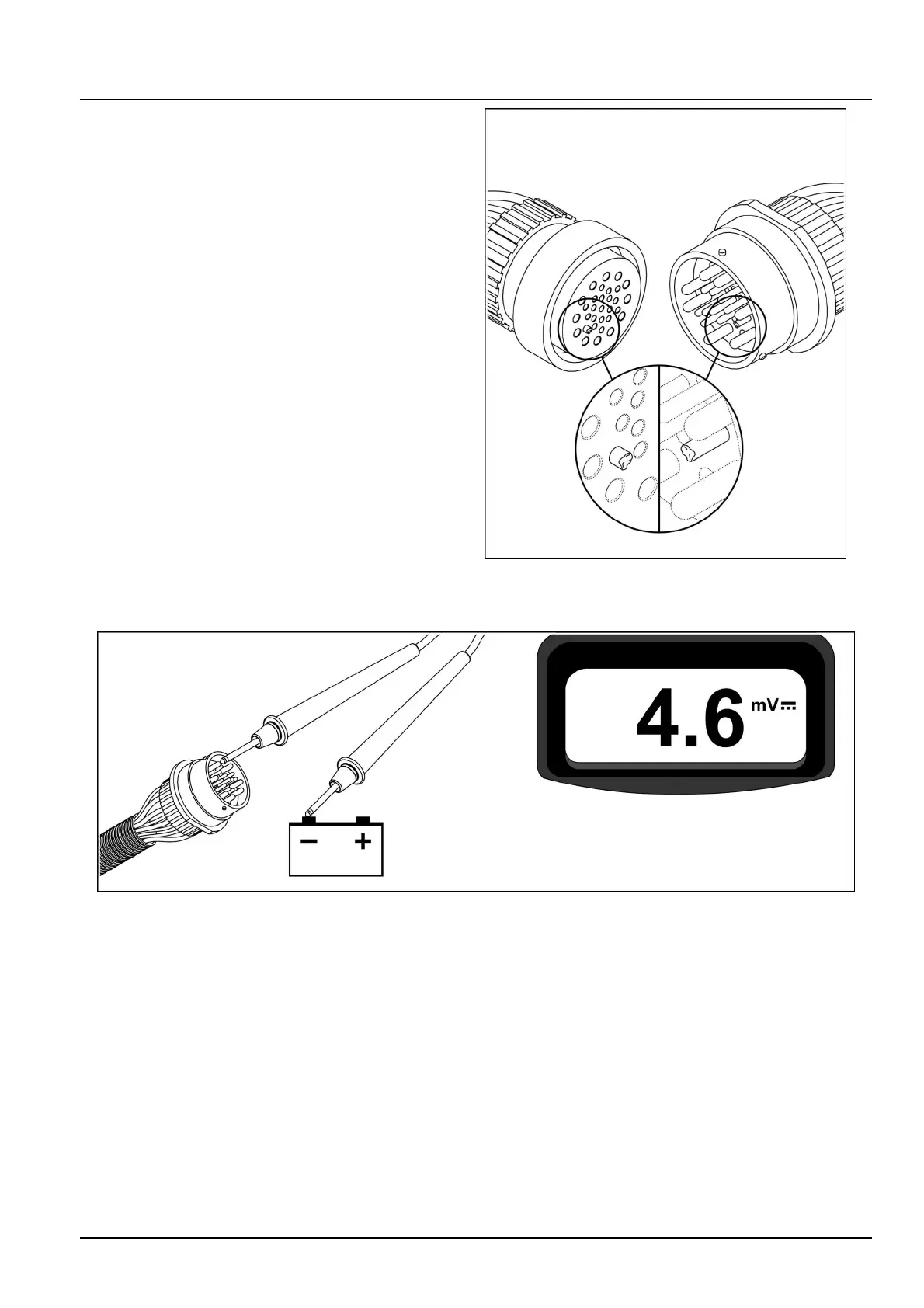

Inspectthemaleconnectorforbrokenpins,wherethepin
remainswithitsfemalecavity,providingminimalcontact
whenthetwoconnectorsarejoined.
RCIL06PTR108BAA6
Measuringvoltage
RCIL06PTR019CAA7
1.SelecttheDCvoltagefunctiononthemultimeter.
2.TurnsystempowerON.
3.Touchthepositive(+)leadofthemultimetertothepinorcavitythatisbeingtested.Touchthenegative(-)leadto
areliablesourceoftractorbatteryground.
4.Readthedisplayedmeasurement.
