SECTION 58 - DRIVELINES - CHAPTER 3
58-12

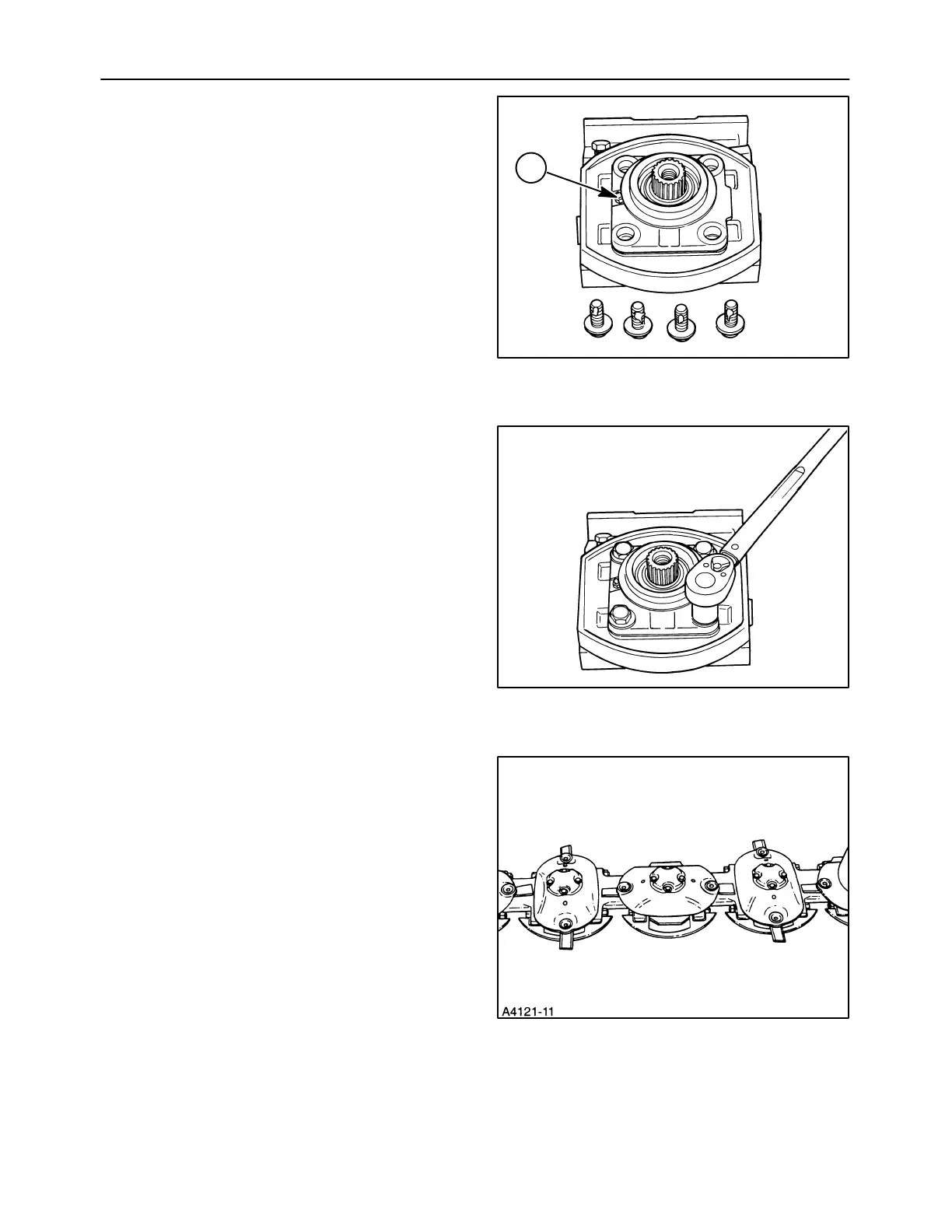

Installation
1. Apply a thin bead of silicone sealant to the sealing
flange of the new top cap assembly, 1, and
position it on the lower module assembly with the
breather facing to the right.
2. Apply silicone sealant to the end of the threads of
the top cap retaining bolts, install them, and
torque to 113 N⋅m (83 lb ft).
3. It is necessary to time the cutter bar discs during
reassembly to eliminate interference between the
knives. The discs are properly timed when they
are 90° apart, as shown. The disc hub and top cap
shaft splines are randomly cut, with no index
marks.
