SECTION 58 - DRIVELINES - CHAPTER 3
58-13

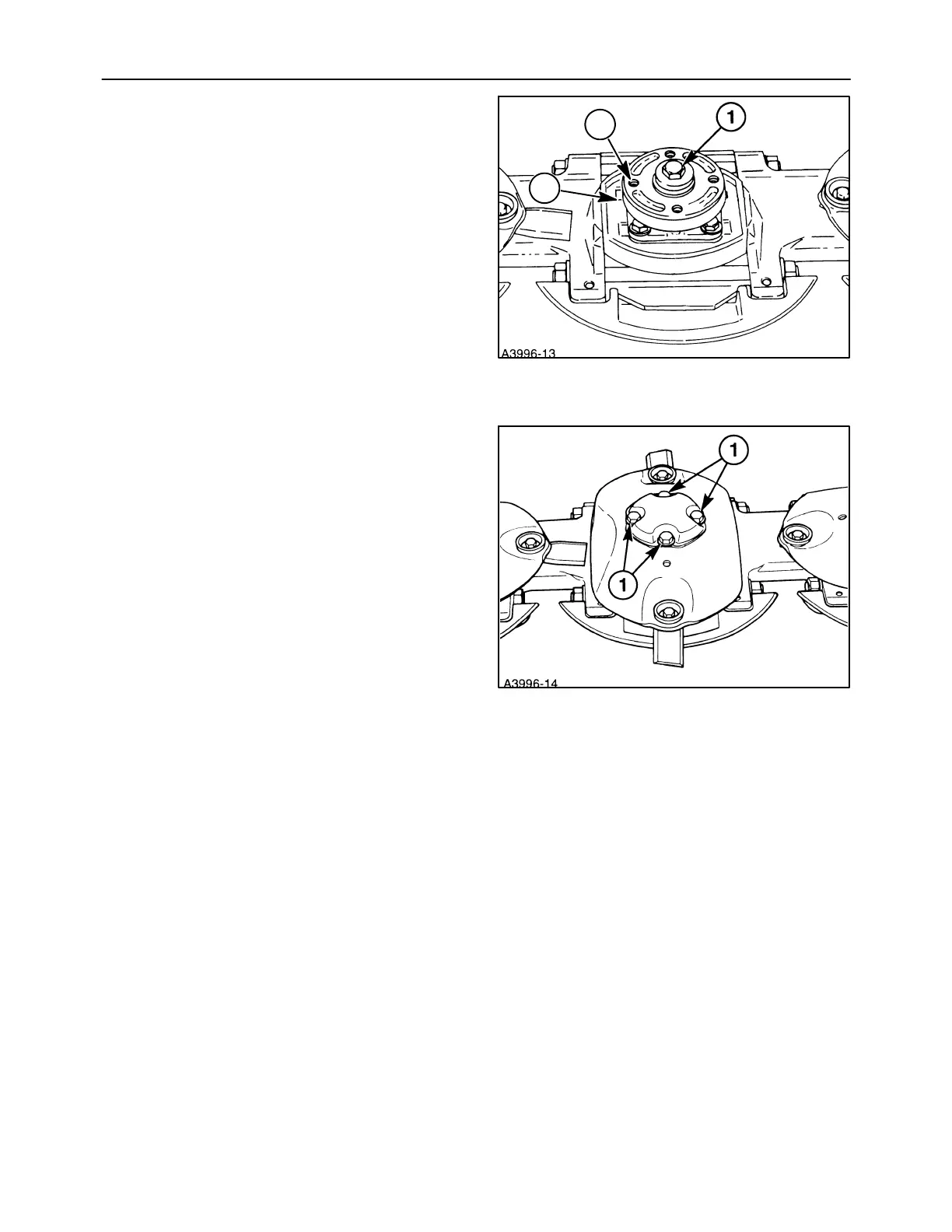

Apply a thin coating of grease to the seal lip and
surface on disc hub. Slide the disc hub onto the
top cap shaft; if it is not perfectly timed to the
adjacent discs, remove the disc hub, rotate it 90°
and reinstall it. Continue to do this until the disc
hub is properly timed; one of the four positions will
provide correct timing.
NOTICE: With the adjacent discs positioned at 90
°
,
the breather, 2, should be completely visible through
the disc hub bolt hole, 3, when the hub is properly
timed.
4. If the module has a hex head cap screw, discard
this cap screw and install a new 12-point cap
screw. Apply a small amount of silicone sealant to
the end of the disc hub retaining bolt, 1, and
torque it to 224 N⋅m (150 lb ft) or turn the bolt 90°
after the bolt has contacted the washer.
5. Install the disc assembly and cover, and torque
retaining bolts, 1, to 113 N⋅m (83 lb ft).
2
3
25
26
