SECTION 58 - DRIVELINES - CHAPTER 3
58-15

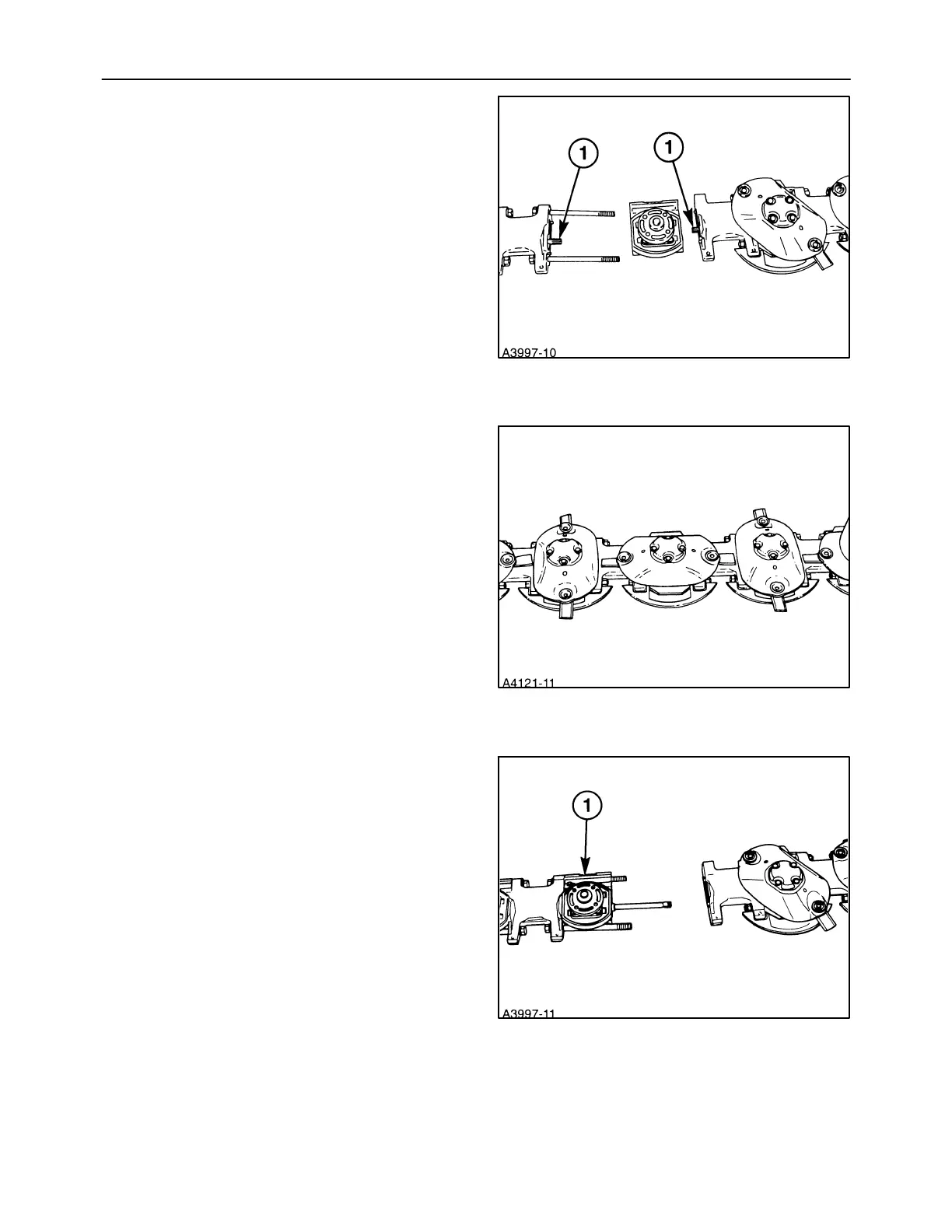

Reassembly
1. Prior to reassembly, remove the connecting
shafts, 1, from both spacers, and apply lubricant
to both ends of the shafts. Reinstall the
connecting shafts.
2. It is necessary to time the cutter bar discs on
either side of the replacement module during
reassembly to eliminate interference between the
knives. The discs are properly timed when they
are 90° apart, as shown. Rotate the discs of the
modules on either side of the replacement
module so that they are timed to each other.
3. Install the replacement module, 1, on one end of
the cutter bar so that the connecting shaft splines
into the pinion shaft, the tie bolts are properly
positioned and the module housing fits onto the
aligning dowels on the spacer.
29
30
31
