1. Install a snap ring on the pinion side of module
casting. Slide the bearing cup for the pinion side
bearing into the housing bore against snap ring.
Note that the direction of rotation desired will
affect which side of housing you start on. For
example, install snap ring on right side of housing
for clockwise rotation, and on the left side of
housing for counter-clockwise rotation.
2. Support the module housing approximately 1/2
inch above the work surface on blocks, a large
piece of pipe as shown, or in an open vise;
position the snap ring and bearing cup down.
Slide the assembled lower module shaft into
housing, making sure pinion side is down against
snap ring to orient properly for desired direction of
rotation.

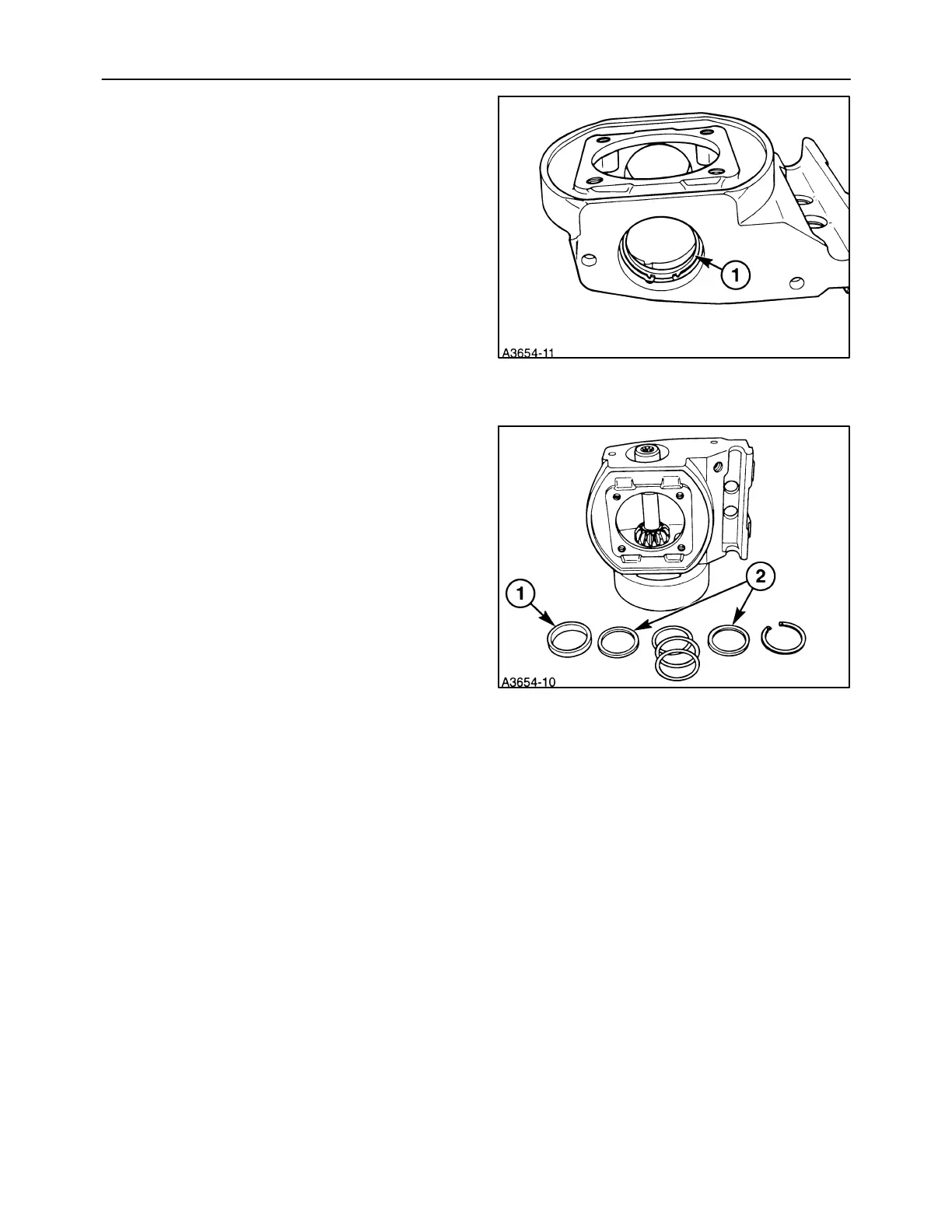

3. Install the bearing cup, 1, that goes with the upper
bearing cone into the housing. Place the two
spacer washers, 2, on top of the bearing cup and
retain with a snap ring, 3.
