SECTION 58 - DRIVELINES - CHAPTER 1
58-6

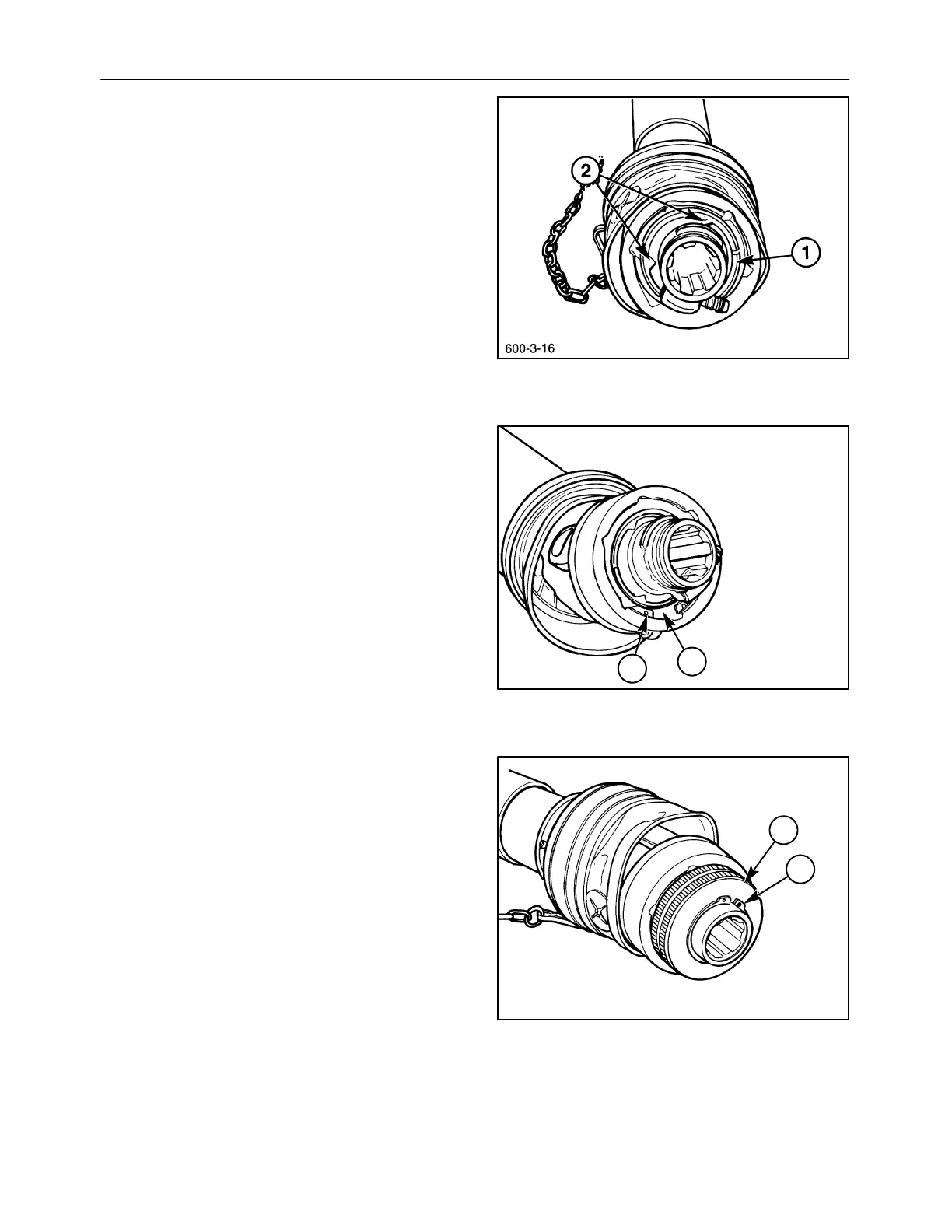

2. Install the bushing, 1, by spreading it and sliding it
over the yoke. Align the tabs, 2, on the bushing
with the notches in the inner overrunning hub.
3. Install the seal ring, 1, with the tapered side facing
inwards to mate with the bushing. Install the snap
ring, 2, to retain the components.
4. Reinstall the twist lock inner cover by spreading
the ends apart until it can be positioned over the
groove in the inner overrunning hub.
5. Squeeze the inner cover onto the hub, and slide
the collar, 2, onto the hub, so that the ramp inside
the collar lines up with the retaining pin, and the
back of the collar slides over the inner cover.
Install the snap ring, 1, to retain the assembly.
12
600-3-13
1
2
13
600-3-12
1
2
14
