SECTION 58 - DRIVELINES - CHAPTER 1
58-15

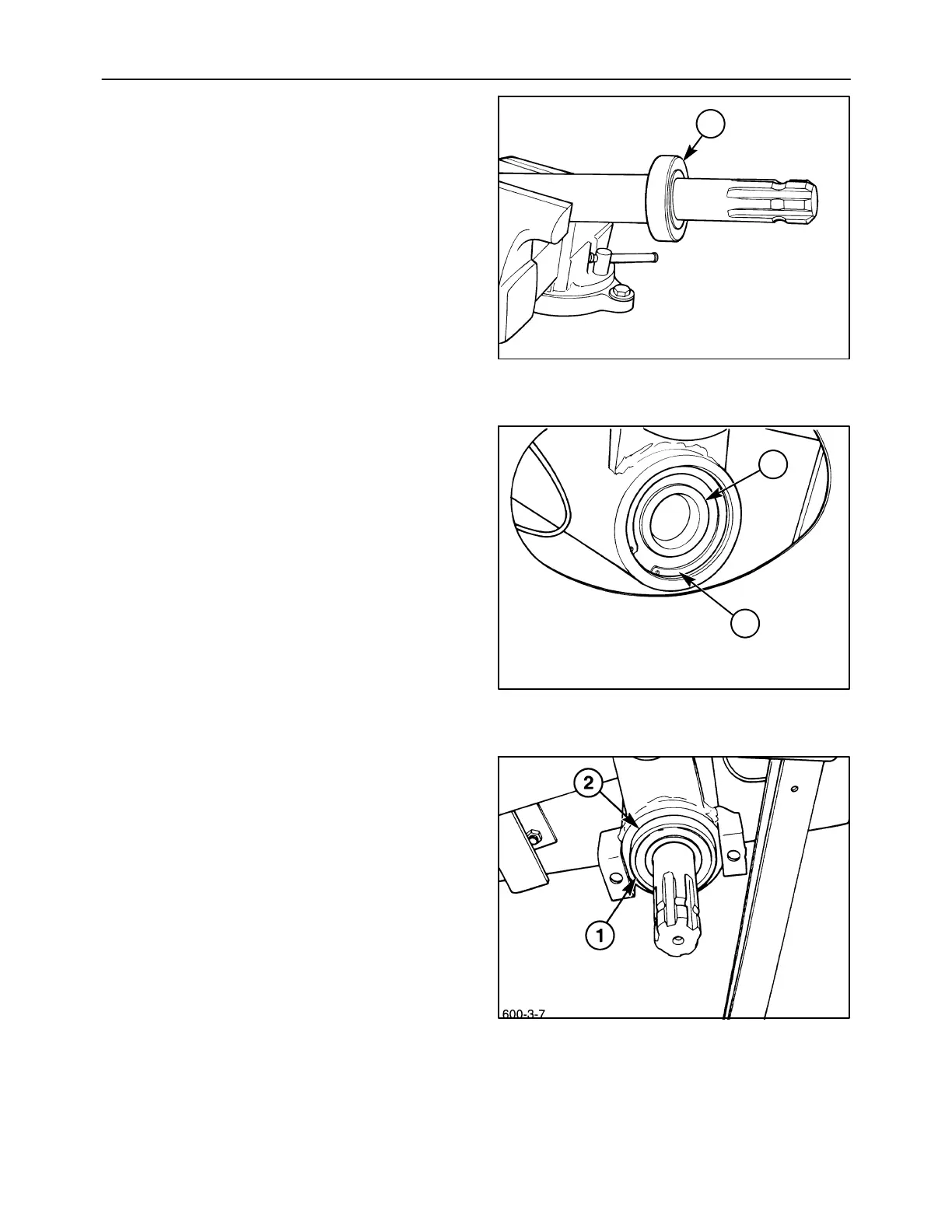

11. Clean the front of the jackshaft using emery cloth.
Position the jackshaft in a vise, and drive the front
bearing, 1, off the shaft.
BELT DRIVE JACKSHAFT
Assembly
1. Drive a new bearing, 1, Figure 39, onto the front of
the jackshaft.
2. Drive a new bearing, 2, into the rear of the
jackshaft housing, and retain using a snap ring, 1.
3. Install the jackshaft and bearing assembly into
the front of the housing; it will be necessary to
alternately drive the jackshaft, 1, through the rear
bearing, 2, Figure 40, and drive the front bearing,
1, into the housing, 2.
NOTICE: Use caution when installing the jackshaft to
prevent damaging the bearings. Excessive side
loads can damage the bearing races and rollers.
600-3-6
1
39
600-3-5
1
2
40
41
