SECTION 58 - DRIVELINES - CHAPTER 1
58-16

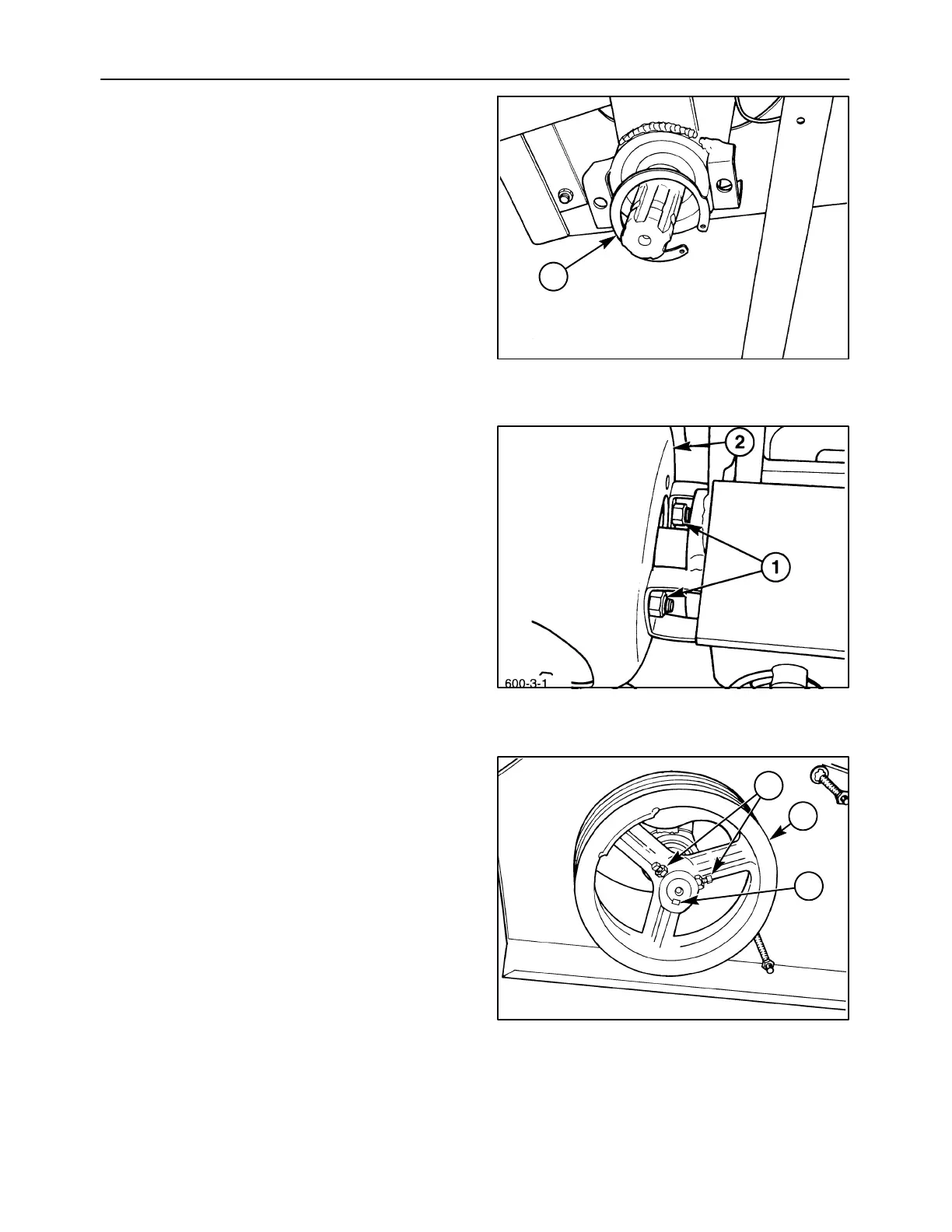

4. Install the front bearing snap ring, 1.
5. Install the front PTO shielding, 2, using the two
previously removed cap screws and locknuts, 1.
6. Install the key, 1, into the keyway in the shaft.
Slide the drive sheave, 2, onto the rear of the
jackshaft, aligning it with and sliding it over the
key.
600-3-2
1
42
43
A3679-14
1
3
2
44
